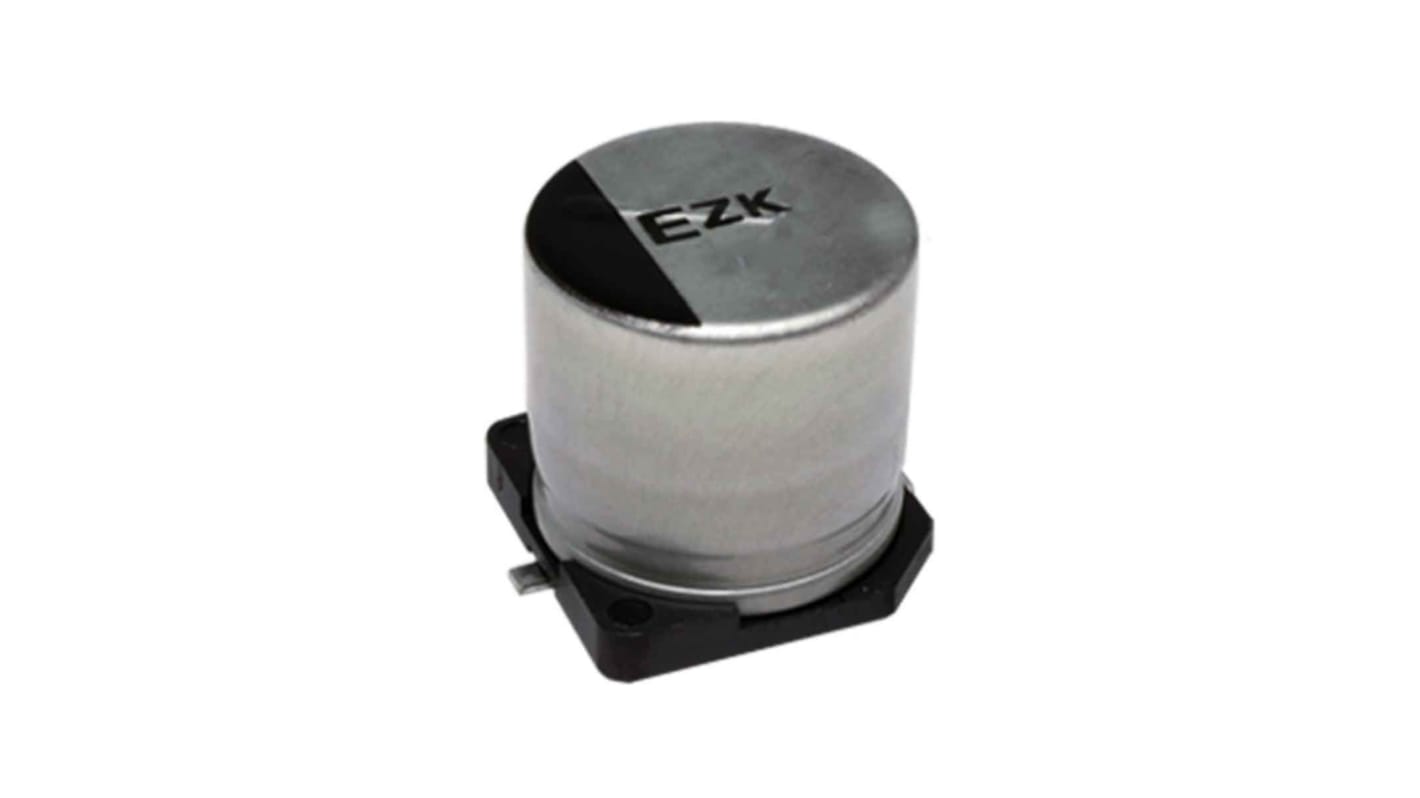

Panasonic 100μF Surface Mount Polymer Capacitor, 25V

View all Polymer Capacitors

Subtotal (1 reel of 1000 units)*

£486.00

(exc. VAT)

£583.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 26 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
1000 +£0.486£486.00

*price indicative

Sponsored
Panasonic 220μF Electrolytic Aluminium Capacitor EEUFM1E221
Panasonic Logo
Precision Performance with Panasonic – Aluminium Capacitors for Demanding Applications
Panasonic Aluminium Capacitors offer reliability, low ESR, and excellent ripple current handling in compact designs. They are built for long service life. Perfect for automotive, industrial, and power applications, these components maintain consistent performance in real-world operating environments.
Shop Here
RS Stock No.:
197-2159
Mfr. Part No.:
EEHZK1E101UP
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Technology

Polymer, Hybrid

Capacitance

100µF

Voltage

25V

Mounting Type

Surface Mount

Equivalent Series Resistance

50mΩ

Lead Pitch

1.8mm

Tolerance

±20%

Length

5.8mm

Maximum Operating Temperature

+125°C

Dimensions

6.3 (Dia) x 5.8mm

Series

ZKU

Minimum Operating Temperature

-55°C

Automotive Standard

AEC-Q200

Polarised

Polar

Diameter

6.3mm

Lifetime

4000h

Leakage Current

25 μA

Ripple Current

1300mArms

Dissipation Factor

14%

COO (Country of Origin):
JP

Panasonic Series ZKU Polymer Capacitor, 100μF Capacitance, 25V Voltage - EEHZK1E101UP


This polymer capacitor is designed for surface mounting applications in electronics. With a capacitance of 100 μF and a voltage rating of 25V, it provides reliable performance in compact spaces. Its dimensions of 6.3mm in diameter and 5.8mm in height make it suitable for integration into various circuit designs.

Features & Benefits


• Hybrid technology ensures reliable performance and longevity
• Low equivalent series resistance at 50 mΩ enhances efficiency
• Operates effectively in high temperatures up to +125 °C
• Polarised design maximises circuit functionality and reliability
• Lifetime rating of 4000 hours optimises maintenance cycles
• AEC-Q200 compliant for reliability in automotive applications

Applications


• Ideal for use in automotive electronics for stability.
• Suitable for compact circuit designs in consumer electronics.
• Used in power supply circuits where low ESR is crucial.
• Effective in high-frequency demanding reliability.

What temperature range can this component operate within?


This component operates between -55 °C and +125 °C, ensuring optimal functionality across a wide range of environmental conditions.

How does the low ESR benefit circuit efficiency?


The low equivalent series resistance reduces energy loss within the circuit, allowing for improved power delivery and overall efficiency.

What is the significance of the component's lifetime rating?


A lifetime rating of 4000 hours indicates its durability, allowing for fewer replacements and increased reliability in long-term applications, particularly in automotive systems.

Can the component be used in high-frequency applications?


Yes, the hybrid technology and low ESR make it suitable for high-frequency applications, ensuring stable performance without degradation.
