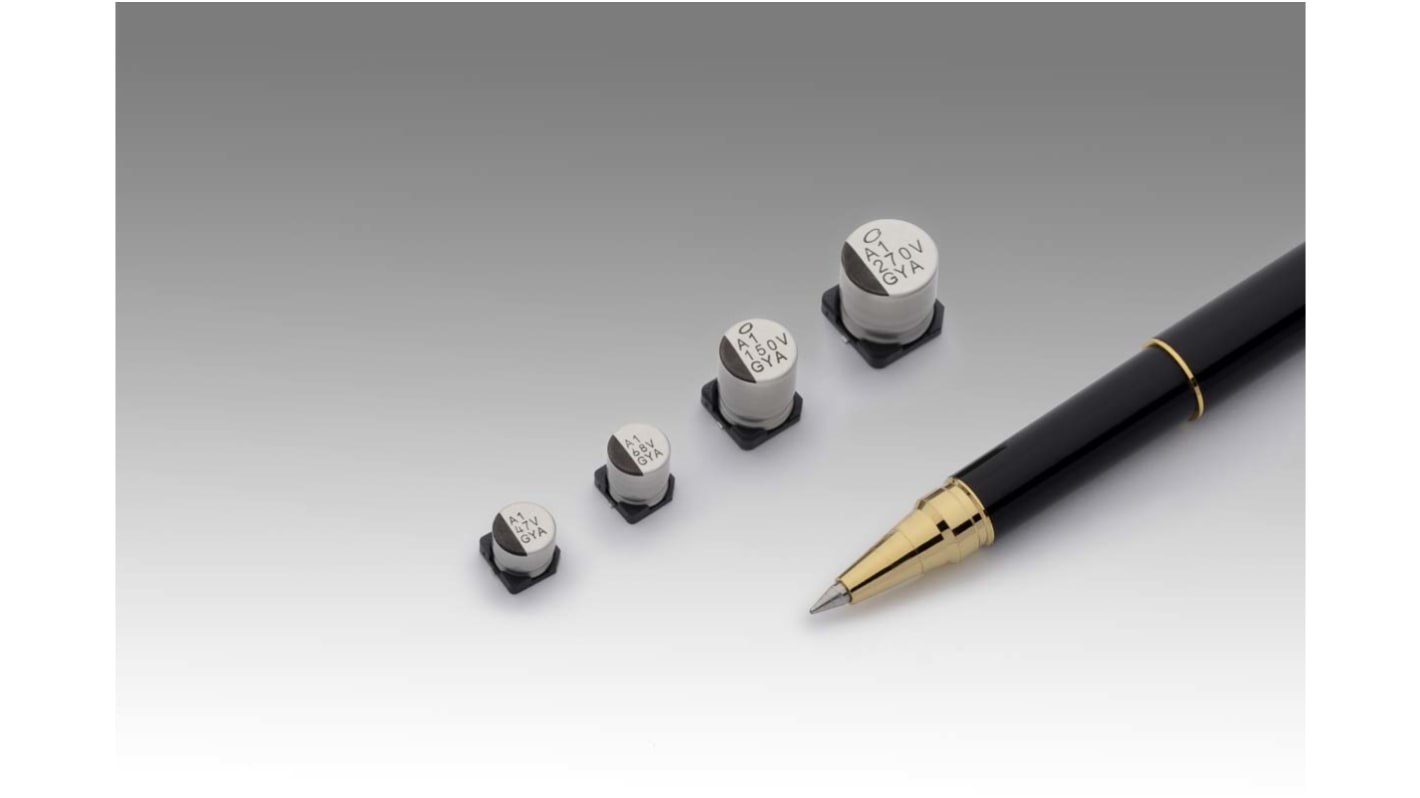

Nichicon 56μF Surface Mount Polymer Capacitor, 63V dc
- RS Stock No.:
- 187-2201
- Mfr. Part No.:
- GYA1J560MCQ1GS
- Brand:
- Nichicon
Bulk discount available
Subtotal (1 reel of 500 units)*
£227.50
(exc. VAT)
£273.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 500 - 500 | £0.455 | £227.50 |
| 1000 + | £0.433 | £216.50 |
*price indicative
- RS Stock No.:
- 187-2201
- Mfr. Part No.:
- GYA1J560MCQ1GS
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Technology | Hybrid | |
| Capacitance | 56µF | |
| Voltage | 63V dc | |
| Mounting Type | Surface Mount | |
| Equivalent Series Resistance | 30mΩ | |
| Lead Pitch | 4.5mm | |
| Tolerance | ±20% | |
| Length | 10.3mm | |
| Depth | 10.3mm | |
| Height | 10.3mm | |
| Maximum Operating Temperature | +125°C | |
| Dimensions | 10.3 x 10.3 x 10.3mm | |
| Series | YA | |
| Lifetime | 4000h | |
| Leakage Current | 35.28 μA | |
| Polarised | Polar | |
| Diameter | 10mm | |
| Minimum Operating Temperature | -55°C | |
| Ripple Current | 1.4A | |
| Dissipation Factor | 0.08% | |
Select all | ||
|---|---|---|
Brand Nichicon | ||
Technology Hybrid | ||
Capacitance 56µF | ||
Voltage 63V dc | ||
Mounting Type Surface Mount | ||
Equivalent Series Resistance 30mΩ | ||
Lead Pitch 4.5mm | ||
Tolerance ±20% | ||
Length 10.3mm | ||
Depth 10.3mm | ||
Height 10.3mm | ||
Maximum Operating Temperature +125°C | ||
Dimensions 10.3 x 10.3 x 10.3mm | ||
Series YA | ||
Lifetime 4000h | ||
Leakage Current 35.28 μA | ||
Polarised Polar | ||
Diameter 10mm | ||
Minimum Operating Temperature -55°C | ||
Ripple Current 1.4A | ||
Dissipation Factor 0.08% | ||
- COO (Country of Origin):
- JP
High Reliability, Low ESR,High ripple current
Long life of 4000 hours at 125°C
Long life of 4000 hours at 125°C
