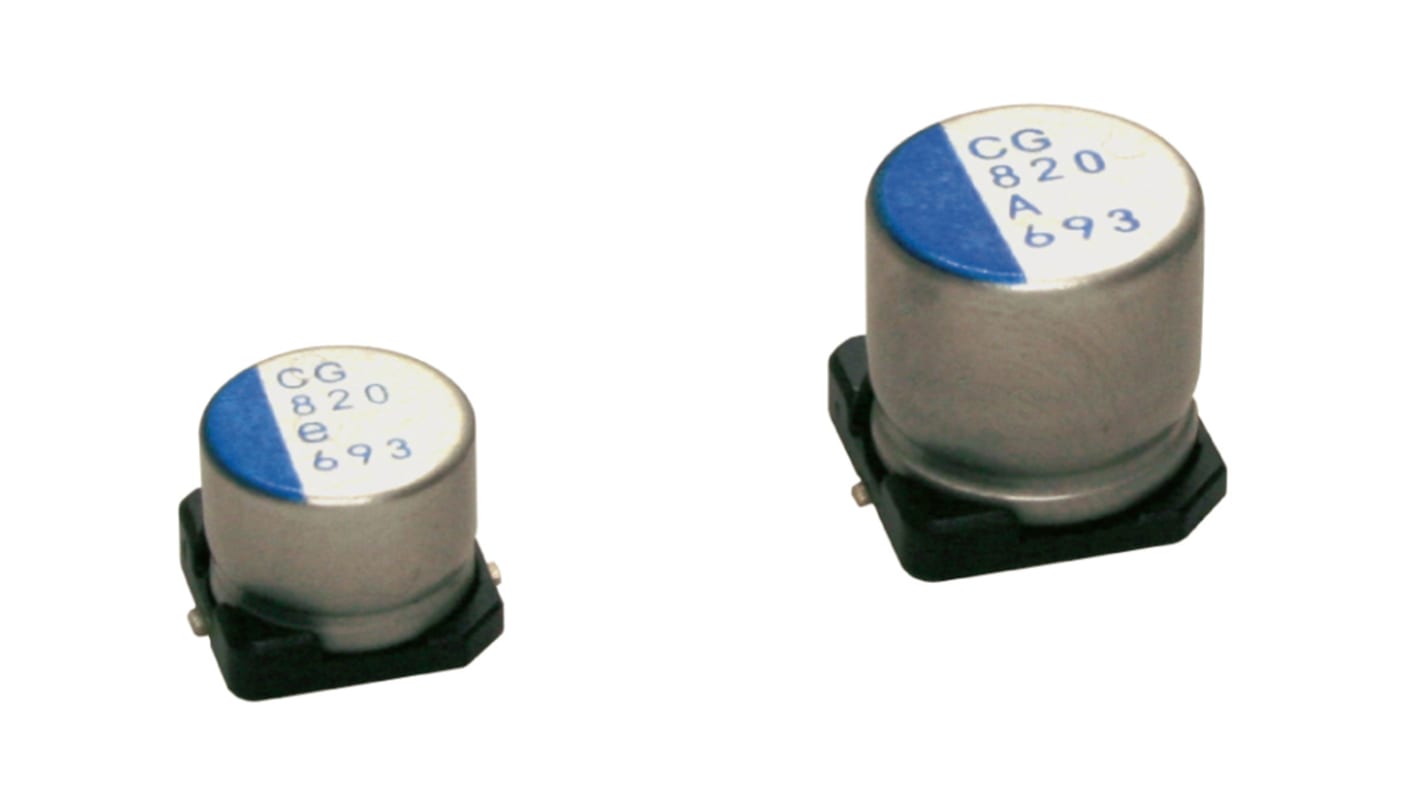

Nichicon 2.2mF Surface Mount Polymer Capacitor, 6.3V dc
- RS Stock No.:
- 187-2178
- Mfr. Part No.:
- PCG0J222MCL1GS
- Brand:
- Nichicon
Subtotal (1 reel of 400 units)*
£244.40
(exc. VAT)
£293.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 400 + | £0.611 | £244.40 |
*price indicative
- RS Stock No.:
- 187-2178
- Mfr. Part No.:
- PCG0J222MCL1GS
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Technology | Polymer | |
| Capacitance | 2.2mF | |
| Voltage | 6.3V dc | |
| Mounting Type | Surface Mount | |
| Equivalent Series Resistance | 12mΩ | |
| Lead Pitch | 4.6mm | |
| Tolerance | ±20% | |
| Length | 10.3mm | |
| Depth | 10.3mm | |
| Maximum Operating Temperature | +105°C | |
| Height | 12.7mm | |
| Dimensions | 10 x 12.7mm | |
| Series | CG | |
| Electrolyte Type | Solid | |
| Minimum Operating Temperature | -55°C | |
| Ripple Current | 5A | |
| Lifetime | 2000h | |
| Leakage Current | 2.772 mA | |
| Polarised | Polar | |
| Diameter | 10mm | |
| Dissipation Factor | 0.12% | |
Select all | ||
|---|---|---|
Brand Nichicon | ||
Technology Polymer | ||
Capacitance 2.2mF | ||
Voltage 6.3V dc | ||
Mounting Type Surface Mount | ||
Equivalent Series Resistance 12mΩ | ||
Lead Pitch 4.6mm | ||
Tolerance ±20% | ||
Length 10.3mm | ||
Depth 10.3mm | ||
Maximum Operating Temperature +105°C | ||
Height 12.7mm | ||
Dimensions 10 x 12.7mm | ||
Series CG | ||
Electrolyte Type Solid | ||
Minimum Operating Temperature -55°C | ||
Ripple Current 5A | ||
Lifetime 2000h | ||
Leakage Current 2.772 mA | ||
Polarised Polar | ||
Diameter 10mm | ||
Dissipation Factor 0.12% | ||
- COO (Country of Origin):
- JP
Higher Capacitance, Low ESR, High ripple current
Load life of 2000 hours at 105°C
SMD type : Lead free reflow soldering condition at 260°C peak correspondence
Load life of 2000 hours at 105°C
SMD type : Lead free reflow soldering condition at 260°C peak correspondence
