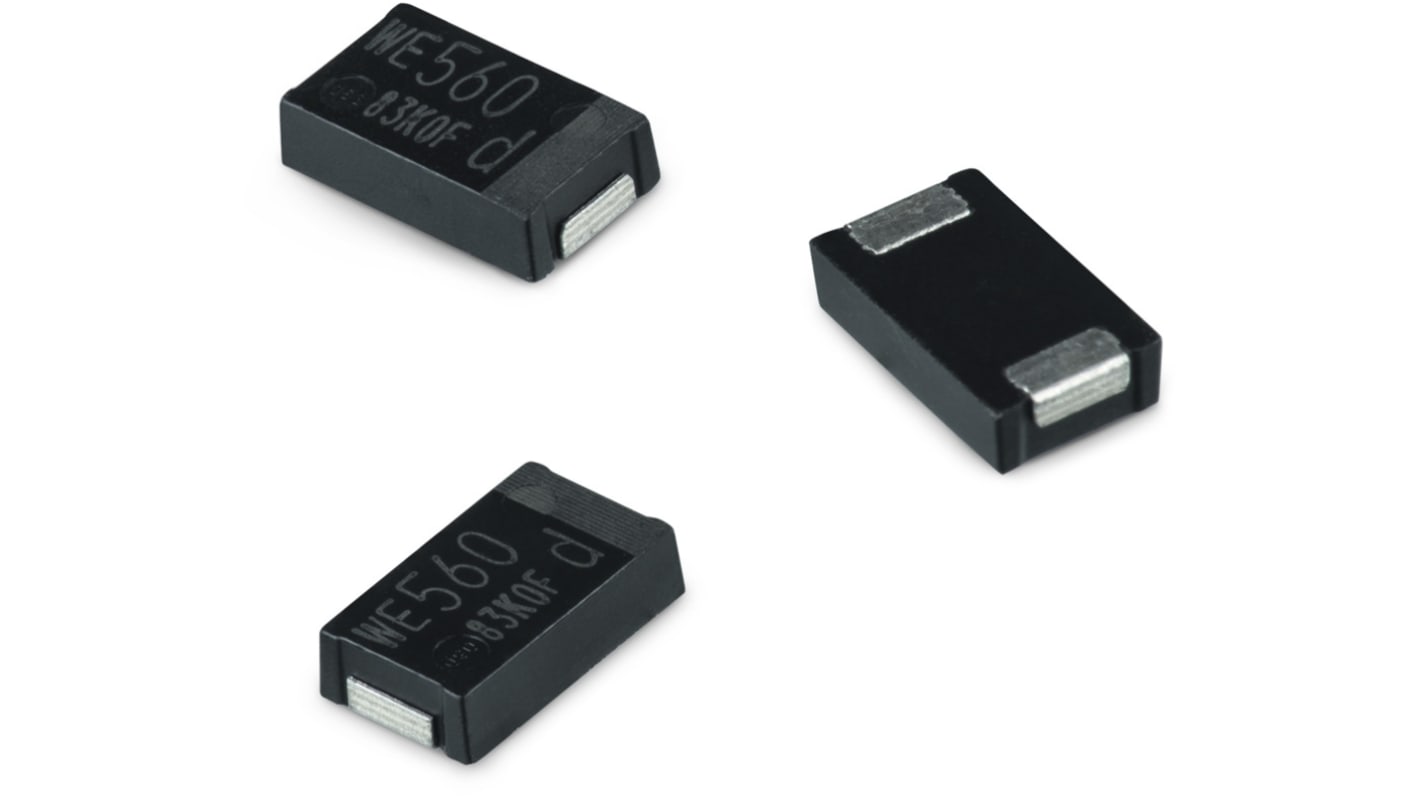

Wurth Elektronik 220μF Surface Mount Polymer Capacitor, 4V dc
- RS Stock No.:
- 185-5735
- Mfr. Part No.:
- 875015019004
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 pack of 5 units)*
£9.60
(exc. VAT)
£11.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £1.92 | £9.60 |
| 25 - 95 | £1.68 | £8.40 |
| 100 - 495 | £1.60 | £8.00 |
| 500 - 1495 | £1.52 | £7.60 |
| 1500 + | £1.44 | £7.20 |
*price indicative
- RS Stock No.:
- 185-5735
- Mfr. Part No.:
- 875015019004
- Brand:
- Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Technology | Polymer | |
| Capacitance | 220µF | |
| Voltage | 4V dc | |
| Dielectric Material Family | Aluminium | |
| Mounting Type | Surface Mount | |
| Equivalent Series Resistance | 12mΩ | |
| Tolerance | ±20% | |
| Length | 7.3mm | |
| Depth | 4.3mm | |
| Height | 1.9mm | |
| Maximum Operating Temperature | +105°C | |
| Dimensions | 7.3 x 4.3 x 1.9mm | |
| Series | WCAP-PHGP | |
| Leakage Current | 88 μA | |
| Lifetime | 2000h | |
| Ripple Current | 5.6A | |
| Minimum Operating Temperature | -55°C | |
| Dissipation Factor | 6% | |
| Polarised | Polar | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Technology Polymer | ||
Capacitance 220µF | ||
Voltage 4V dc | ||
Dielectric Material Family Aluminium | ||
Mounting Type Surface Mount | ||
Equivalent Series Resistance 12mΩ | ||
Tolerance ±20% | ||
Length 7.3mm | ||
Depth 4.3mm | ||
Height 1.9mm | ||
Maximum Operating Temperature +105°C | ||
Dimensions 7.3 x 4.3 x 1.9mm | ||
Series WCAP-PHGP | ||
Leakage Current 88 μA | ||
Lifetime 2000h | ||
Ripple Current 5.6A | ||
Minimum Operating Temperature -55°C | ||
Dissipation Factor 6% | ||
Polarised Polar | ||
