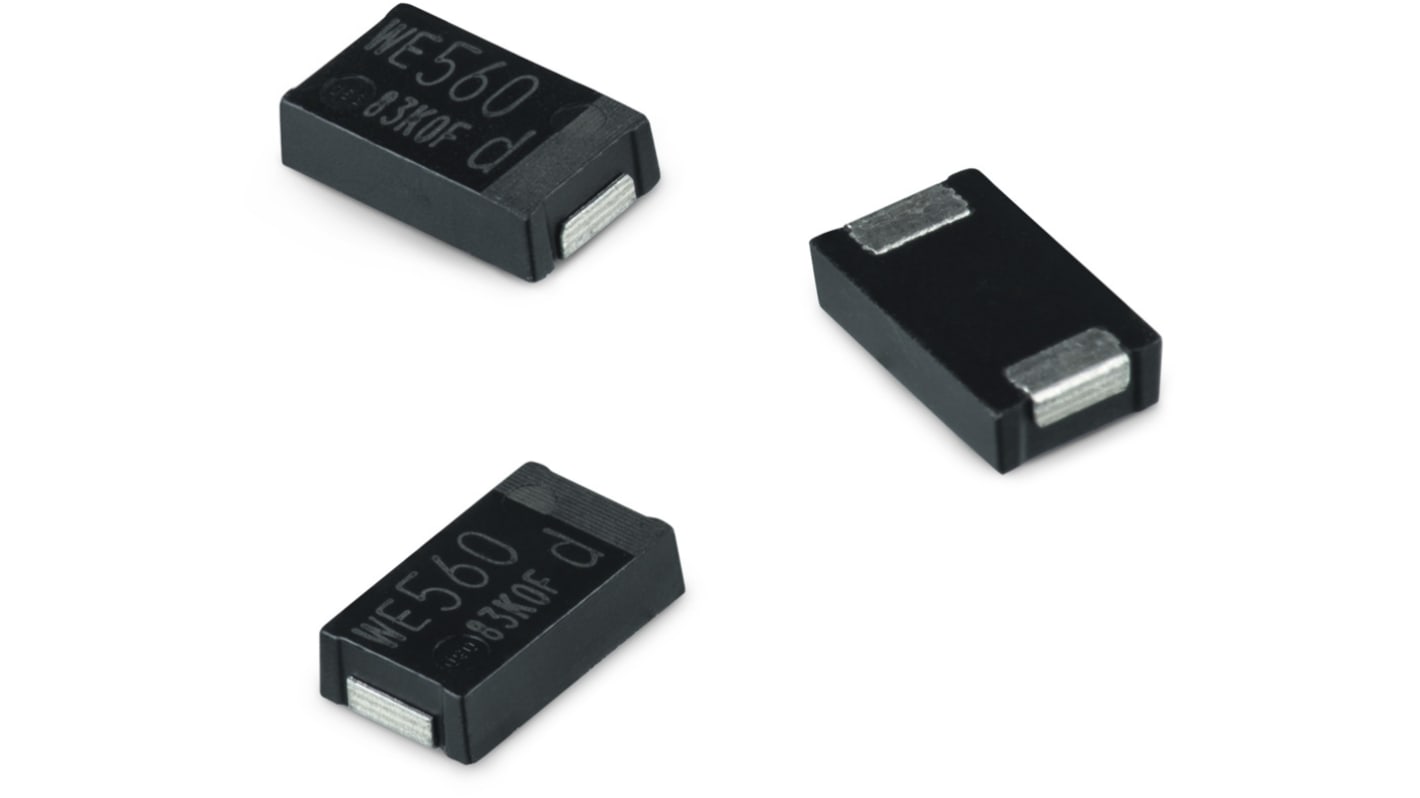

Wurth Elektronik 470μF Surface Mount Polymer Capacitor, 2.5V dc

View all Polymer Capacitors
Bulk discount available

Subtotal 20 units (supplied on a continuous strip)*

£37.90

(exc. VAT)

£45.48

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
20 - 48£1.895
50 - 98£1.775
100 - 198£1.635
200 +£1.45

*price indicative

Packaging Options:
RS Stock No.:
185-5724P
Mfr. Part No.:
875046319001
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Technology

Polymer

Capacitance

470µF

Voltage

2.5V dc

Dielectric Material Family

Aluminium

Mounting Type

Surface Mount

Equivalent Series Resistance

3mΩ

Tolerance

±20%

Length

7.3mm

Depth

4.3mm

Height

1.9mm

Maximum Operating Temperature

+105°C

Dimensions

7.3 x 4.3 x 1.9mm

Series

WCAP-PHSE

Dissipation Factor

6%

Minimum Operating Temperature

-55°C

Ripple Current

10.2A

Lifetime

2000h

Leakage Current

117.5 μA

Polarised

Polar

COO (Country of Origin):
JP
Super low ESR product series
High ripple current capability
Low profile
Mounting style: H-Chip SMT
Capacitance range: 330 μF ‒ 560 μF
Capacitance tolerance: ±20 %
Voltage range (UR): 2 ‒ 2.5 V(DC)
Operating temperature: -55 °C up to +105 °C
Endurance: 2000h @ +105 °C
Dimensions (LxWxH) in mm: 7.3 x 4.3 x 1.9
Recommended soldering: Reflow soldering
Applications
Noise suppression
Input and output capacitor for DC/DC converter
USB Charger, Smart Meter, Power Bank
Communication infrastructure, Server, Mainboards
