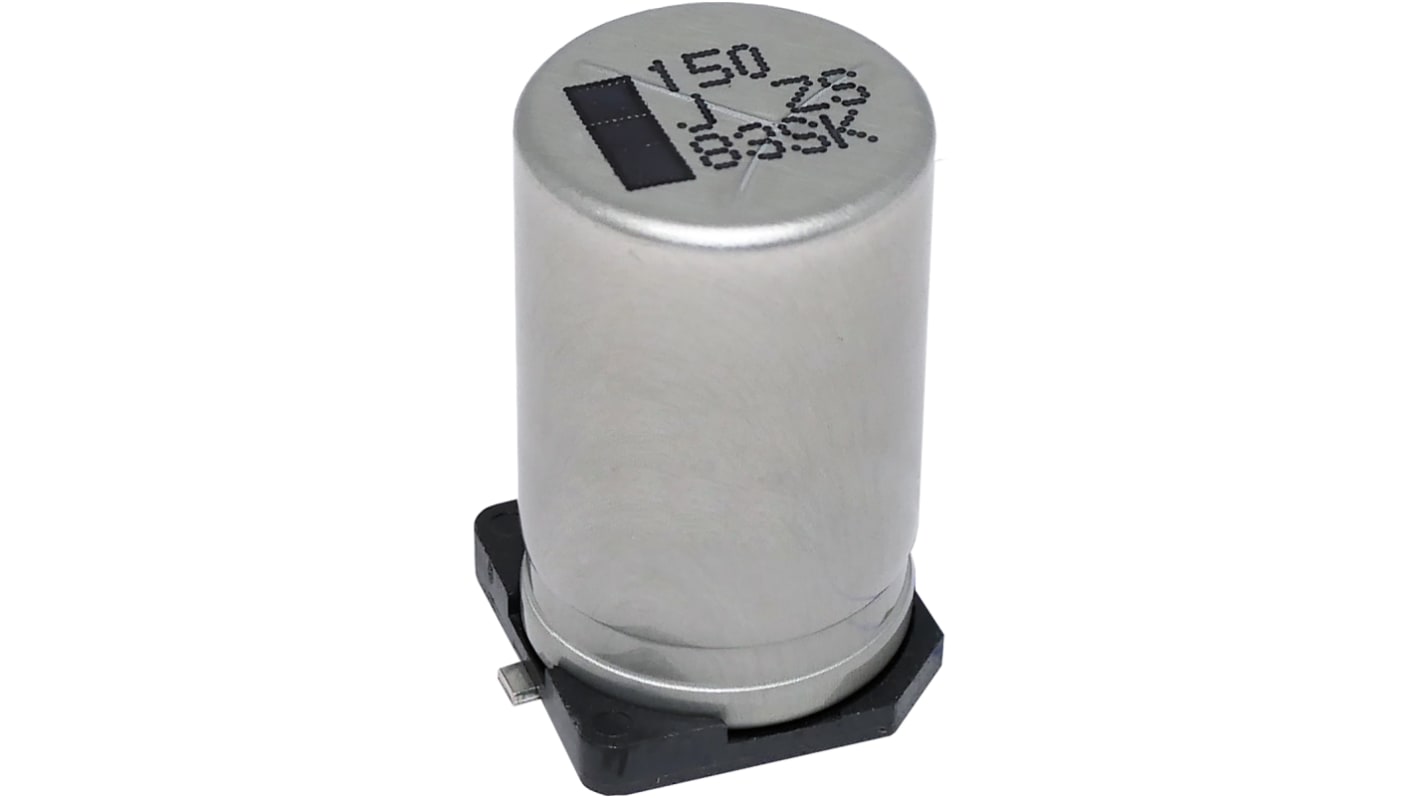

Panasonic 220μF Surface Mount Polymer Capacitor, 50V dc

This polymer capacitor from Panasonic is a high-quality surface mount component designed to meet demanding electrical specifications. With a capacitance of 220 μF and rated for a maximum voltage of 50V DC, it is ideal for various applications. The capacitor features a compact size with dimensions of 11mm in length, 10.3mm in depth, and 16.5mm in height, ensuring ease of integration into your electronic projects.

• Designed with hybrid capacitor technology for versatility in usage
• Low Equivalent Series Resistance (ESR) of 13 mΩ enhances performance
• Operates effectively at temperatures up to +125 °C for high-temperature environments
• Polarised design ensures correct application in circuit configurations
• Tolerance of ±20 % accommodates variations in capacitance requirements
• Leakage current rating of 110 μA supports reliability and efficiency

• Used for automotive adhering to AEC-Q200 standards
• Suitable for power supply and filtering in electronics
• Employed in circuits requiring stable performance at elevated temperatures
• Utilised in compact devices where space-saving is crucial

The low ESR allows for reduced energy loss during operation, maximising efficiency and minimising heat generation. This ensures improved reliability and performance, particularly in high-frequency applications.

The polarised design necessitates correct orientation during installation, preventing potential damage or failure in applications where reverse voltage could occur. This feature helps maintain circuit integrity and functionality.

Compliance with AEC-Q200 indicates that the capacitor has undergone rigorous testing to meet automotive quality and reliability standards, ensuring performance under harsh conditions typically experienced in automotive environments.

With a maximum operating temperature of +125 °C and a minimum of -55 °C, it is designed to function effectively across a wide thermal range, making it suitable for diverse applications in extreme environments.
