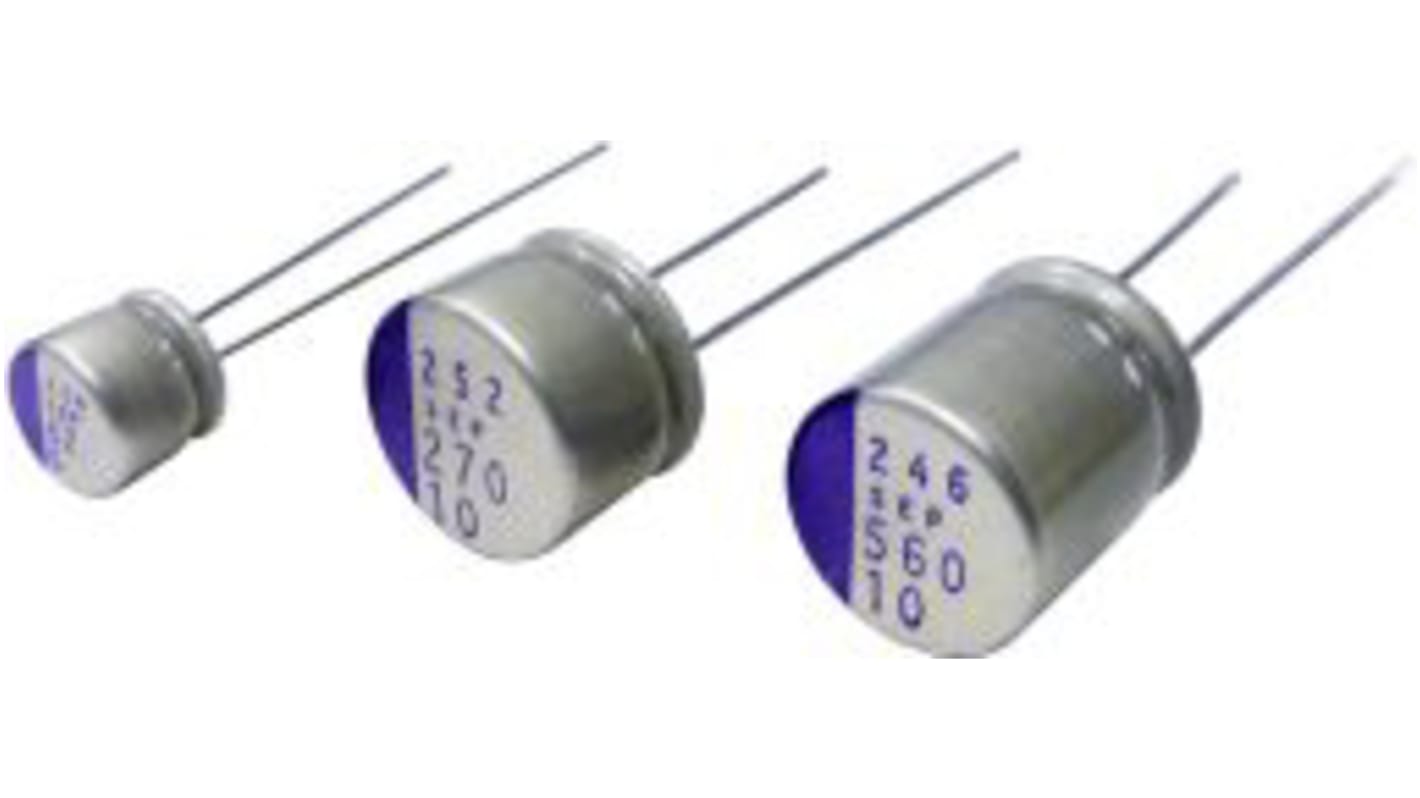

Panasonic 150μF Through Hole Polymer Capacitor, 16V dc
- RS Stock No.:
- 179-9217
- Mfr. Part No.:
- 16SEP150M+T
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 5 units)*
£5.95
(exc. VAT)
£7.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 90 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.19 | £5.95 |
| 50 - 95 | £1.094 | £5.47 |
| 100 - 245 | £0.986 | £4.93 |
| 250 - 495 | £0.846 | £4.23 |
| 500 + | £0.70 | £3.50 |
*price indicative
- RS Stock No.:
- 179-9217
- Mfr. Part No.:
- 16SEP150M+T
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Technology | Polymer | |
| Capacitance | 150µF | |
| Dielectric Material Family | Aluminium | |
| Voltage | 16V dc | |
| Mounting Type | Through Hole | |
| Equivalent Series Resistance | 30mΩ | |
| Lead Pitch | 5mm | |
| Tolerance | ±20% | |
| Length | 8mm | |
| Maximum Operating Temperature | +105°C | |
| Height | 8mm | |
| Dimensions | 10 (Dia) x 8mm | |
| Series | SEP | |
| Electrolyte Type | Solid | |
| Minimum Operating Temperature | -55°C | |
| Dissipation Factor | 0.12% | |
| Diameter | 10mm | |
| Ripple Current | 3.02A | |
| Leakage Current | 480 μA | |
| Polarised | Polar | |
| Lifetime | 3000h | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Technology Polymer | ||
Capacitance 150µF | ||
Dielectric Material Family Aluminium | ||
Voltage 16V dc | ||
Mounting Type Through Hole | ||
Equivalent Series Resistance 30mΩ | ||
Lead Pitch 5mm | ||
Tolerance ±20% | ||
Length 8mm | ||
Maximum Operating Temperature +105°C | ||
Height 8mm | ||
Dimensions 10 (Dia) x 8mm | ||
Series SEP | ||
Electrolyte Type Solid | ||
Minimum Operating Temperature -55°C | ||
Dissipation Factor 0.12% | ||
Diameter 10mm | ||
Ripple Current 3.02A | ||
Leakage Current 480 μA | ||
Polarised Polar | ||
Lifetime 3000h | ||
- COO (Country of Origin):
- JP
Low ESR obtained by using conductive polymer electrolyte.
Pb-free
Long life
Superior temperature characteristics.
Wide capacitance range from 1μF to 2700μF.
High voltage, high reliability.
Pb-free
Long life
Superior temperature characteristics.
Wide capacitance range from 1μF to 2700μF.
High voltage, high reliability.
OS-CON is an aluminum solid capacitor with high conductive polymer. OS-CON acquires low Equivalent Series Resistance (ESR), excellent noise reduction capability and frequency characteristics. In addition, OS-CON has a long life span and its ESR has little change even at low temperatures since the electrolyte is solid.
Super high voltage : 100 V.DC max.
Low ESR and High ripple current (C10 size : 16 V.DC / 8 mΩ / 5800 mAr.m.s.)
Long life, Endurance : 105 ℃ 5000 h
Low ESR and High ripple current (C10 size : 16 V.DC / 8 mΩ / 5800 mAr.m.s.)
Long life, Endurance : 105 ℃ 5000 h
