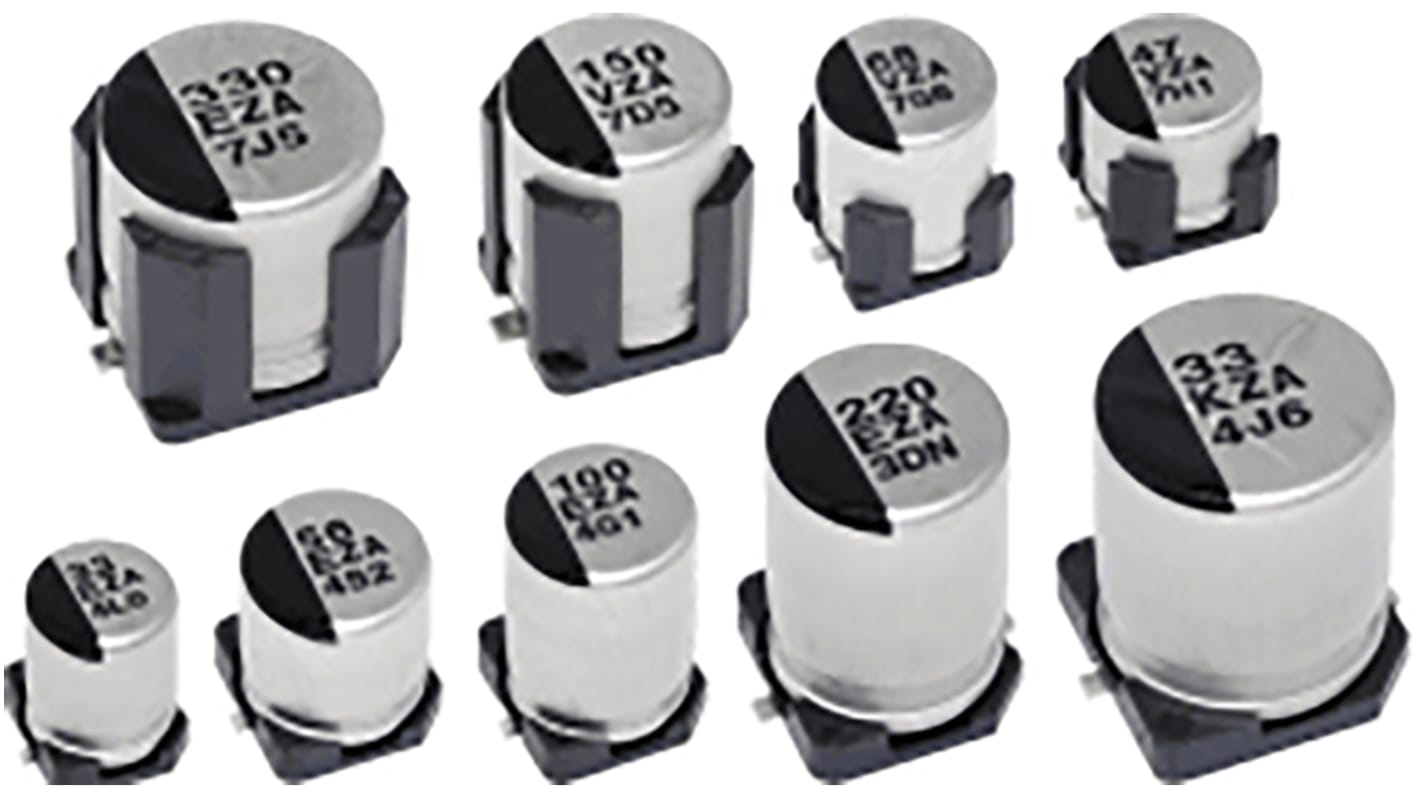

Panasonic 47μF Surface Mount Polymer Capacitor, 35V dc

Subtotal (1 reel of 1000 units)*

£421.00

(exc. VAT)

£505.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
1000 +£0.421£421.00

*price indicative

RS Stock No.:
179-3433
Mfr. Part No.:
EEHZA1V470P
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Technology

Hybrid

Capacitance

47µF

Voltage

35V dc

Dielectric Material Family

Aluminium

Mounting Type

Surface Mount

Equivalent Series Resistance

60mΩ

Lead Pitch

1.8mm

Tolerance

±20%

Length

5.8mm

Height

7.8mm

Maximum Operating Temperature

+105°C

Dimensions

6.3 (Dia) x 5.8mm

Series

ZA

Polarised

Polar

Ripple Current

1.3A

Automotive Standard

AEC-Q200

Minimum Operating Temperature

-55°C

Dissipation Factor

12%

Diameter

6.3mm

Lifetime

1000h

Leakage Current

16.4 μA

COO (Country of Origin):
JP

Panasonic Series ZA Polymer Capacitor, 47μF Capacitance, 35V DC Voltage - EEHZA1V470P


This polymer capacitor, designed for surface mounting, features a capacitance of 47 μF and operates at a voltage of 35V DC. With dimensions of 6.3mm in diameter and 5.8mm in height, this low ESR capacitor is constructed from aluminium and meets automotive standards, offering dependable performance under varied conditions.

Features & Benefits


• Utilises hybrid technology for enhanced performance
• Polarised design ensures correct installation
• Low equivalent series resistance minimises power loss
• Capable of withstanding high temperatures up to +105 °C
• Long-life expectancy of 1000 hours under typical conditions
• Provides maximum reliability in automotive applications

Applications


• Used in electronic control units for vehicles
• Suitable for automotive signal processing and power circuits
• Ideal for requiring a compact and efficient PCB component
• Utilised in stabilisation and filtering in power management systems

What is the significance of the AEC-Q200 certification?


The AEC-Q200 certification indicates compliance with stringent automotive reliability standards, ensuring performance consistency in demanding environments. This is crucial for maintaining system integrity in automotive applications.

How does the leakage current of this product affect performance?


With a leakage current of 16.4 μA, it contributes to overall efficiency, ensuring minimal energy loss during operation, which is vital in applications such as battery management systems where conserving energy is essential.

In what range of temperatures can this component operate?


This capacitor is designed for a wide temperature range, functioning effectively from -55 °C to +105 °C, making it suitable for both high-temperature environments and extreme cold conditions in automotive applications.
