- RS Stock No.:
- 173-3702
- Mfr. Part No.:
- T55B686M004C0070
- Brand:
- Vishay
Available to back order for despatch 14/10/2024
Price Each (On a Reel of 2000)
£0.264
(exc. VAT)
£0.317
(inc. VAT)
Units | Per unit | Per Reel* |
---|---|---|
2000 - 2000 | £0.264 | £528.00 |
4000 + | £0.257 | £514.00 |
*price indicative
- RS Stock No.:
- 173-3702
- Mfr. Part No.:
- T55B686M004C0070
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
Product Details
T55 Series

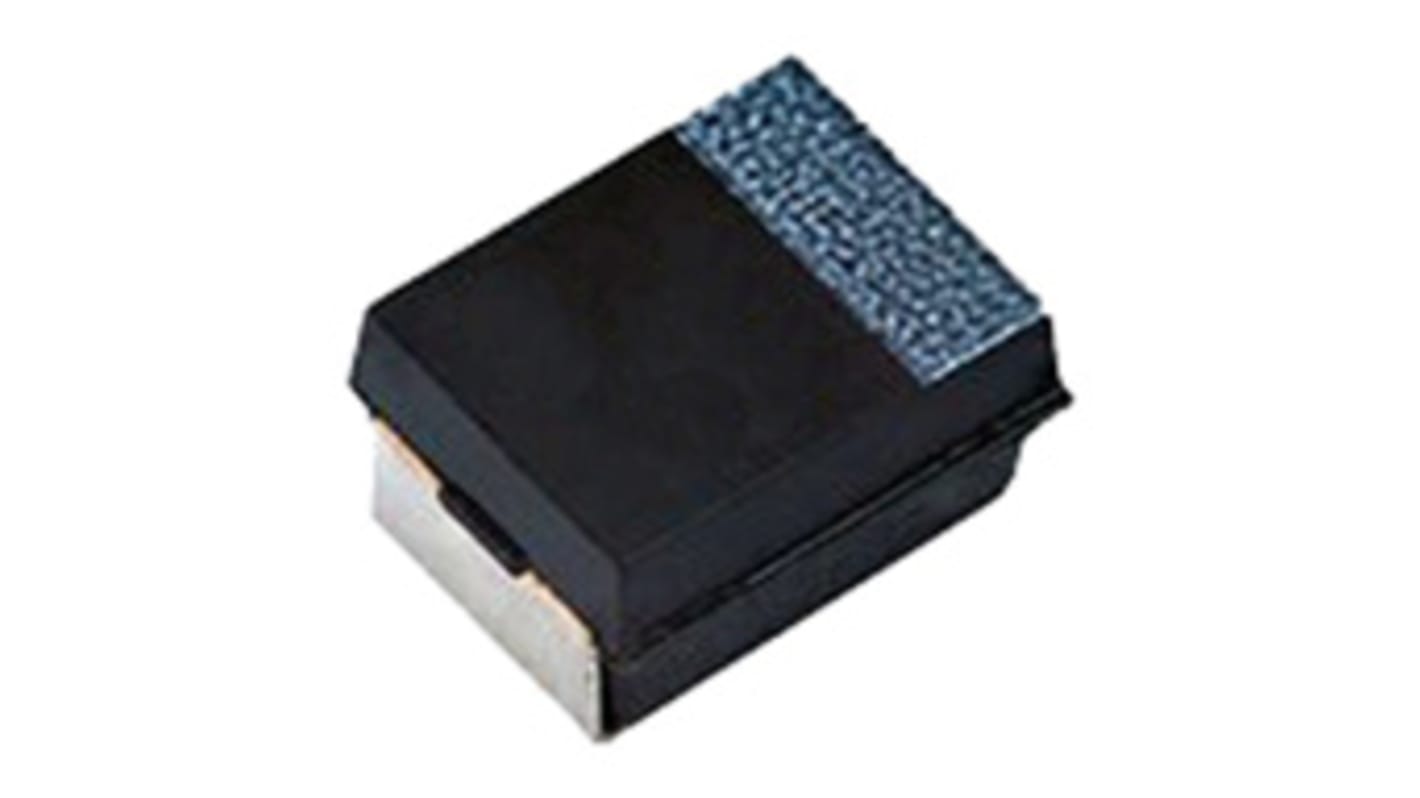

T55 Solid Tantalum Surface Mount Chip Capacitors
Moulded Case, High Performance Polymer Type
Moulded Case, High Performance Polymer Type
Ultra-low ESR
Moulded case available in 5 case codes
Terminations: Cases J, P, and A: 100 % tin
Cases B and T: Ni/Pd/Au
Compatible with high volume automatic pick and place equipment
Moisture sensitivity level 3
Applications in Decoupling, smoothing, filtering; Bulk energy storage in wireless cards; Infrastructure equipment; Storage and networking; Computer motherboards; Smartphones and tablets
Moulded case available in 5 case codes
Terminations: Cases J, P, and A: 100 % tin
Cases B and T: Ni/Pd/Au
Compatible with high volume automatic pick and place equipment
Moisture sensitivity level 3
Applications in Decoupling, smoothing, filtering; Bulk energy storage in wireless cards; Infrastructure equipment; Storage and networking; Computer motherboards; Smartphones and tablets
Specifications
Attribute | Value |
---|---|
Technology | Polymer |
Capacitance | 68µF |
Voltage | 4V dc |
Dielectric Material Family | Tantalum |
Mounting Type | Surface Mount |
Package/Case | 3528-21 |
Equivalent Series Resistance | 70mΩ |
Tolerance | ±20% |
Length | 3.5mm |
Depth | 2.8mm |
Maximum Operating Temperature | +105°C |
Height | 1.9mm |
Dimensions | 3.5 x 2.8 x 1.9mm |
Series | T55 |
Electrolyte Type | Solid |
Leakage Current | 27.2 μA |
Minimum Operating Temperature | -55°C |
