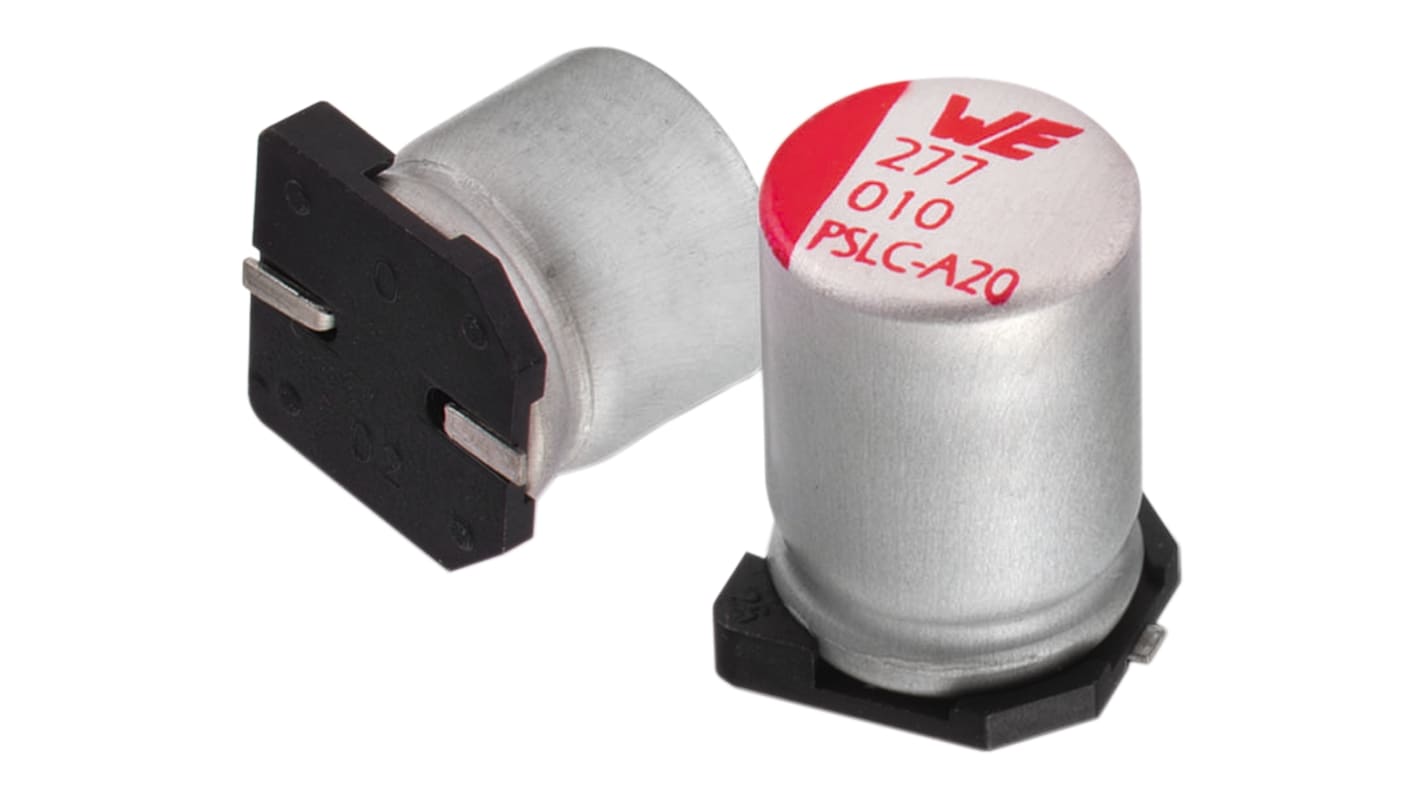

Wurth Elektronik 680μF Surface Mount Polymer Capacitor, 6.3V dc
- RS Stock No.:
- 163-5943
- Mfr. Part No.:
- 875115152007
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 500 units)*
£272.00
(exc. VAT)
£326.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 500 + | £0.544 | £272.00 |
*price indicative
- RS Stock No.:
- 163-5943
- Mfr. Part No.:
- 875115152007
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Technology | Polymer | |
| Capacitance | 680µF | |
| Voltage | 6.3V dc | |
| Dielectric Material Family | Aluminium | |
| Mounting Type | Surface Mount | |
| Equivalent Series Resistance | 11mΩ | |
| Lead Pitch | 3.1mm | |
| Tolerance | ±20% | |
| Height | 8.7mm | |
| Maximum Operating Temperature | +105°C | |
| Dimensions | 8.7 (Dia) x 8.7mm | |
| Series | WCAP-PSHP | |
| Diameter | 8.7mm | |
| Polarised | Polar | |
| Leakage Current | 856 μA | |
| Dissipation Factor | 10% | |
| Ripple Current | 4.8A | |
| Minimum Operating Temperature | -55°C | |
| Lifetime | 2000h | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Technology Polymer | ||
Capacitance 680µF | ||
Voltage 6.3V dc | ||
Dielectric Material Family Aluminium | ||
Mounting Type Surface Mount | ||
Equivalent Series Resistance 11mΩ | ||
Lead Pitch 3.1mm | ||
Tolerance ±20% | ||
Height 8.7mm | ||
Maximum Operating Temperature +105°C | ||
Dimensions 8.7 (Dia) x 8.7mm | ||
Series WCAP-PSHP | ||
Diameter 8.7mm | ||
Polarised Polar | ||
Leakage Current 856 μA | ||
Dissipation Factor 10% | ||
Ripple Current 4.8A | ||
Minimum Operating Temperature -55°C | ||
Lifetime 2000h | ||
- COO (Country of Origin):
- CN
Wurth Elektronik SMD Aluminium Polymer Capacitor - WCAP-PSHP series
Aluminium Polymer capacitors contain solid conductive polymer instead of wet electrolytic, thus the benefits are:
High permissible ripple current due to lower ESR at high frequency range
Higher long term stability and expected life
No dry out phenomenon due to solid conductive polymer
High permissible ripple current due to lower ESR at high frequency range
Higher long term stability and expected life
No dry out phenomenon due to solid conductive polymer
WCAP-PSHP are miniaturised polymer electrolytic capacitor series
Operating temperature: -55°C to +105°C
Low ESR at high frequency range
High permissible ripple current
Load life of 2000h @ +105°C
Reflow soldering is recommended
Operating temperature: -55°C to +105°C
Low ESR at high frequency range
High permissible ripple current
Load life of 2000h @ +105°C
Reflow soldering is recommended
