Panasonic 68μF Surface Mount Polymer Capacitor, 25V dc
- RS Stock No.:
- 131-1955
- Mfr. Part No.:
- EEHZK1E680P
- Brand:
- Panasonic
Subtotal (1 pack of 5 units)*
£4.20
(exc. VAT)
£5.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,965 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £0.84 | £4.20 |
*price indicative
- RS Stock No.:
- 131-1955
- Mfr. Part No.:
- EEHZK1E680P
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Technology | Hybrid | |
| Capacitance | 68µF | |
| Dielectric Material Family | Aluminium | |
| Voltage | 25V dc | |
| Mounting Type | Surface Mount | |
| Equivalent Series Resistance | 50mΩ | |
| Lead Pitch | 1.8mm | |
| Tolerance | ±20% | |
| Depth | 5.8mm | |
| Height | 5.8mm | |
| Maximum Operating Temperature | +125°C | |
| Dimensions | 6.3 (Dia) x 5.8mm | |
| Series | ZK | |
| Diameter | 6.3mm | |
| Automotive Standard | AEC-Q200 | |
| Dissipation Factor | 14% | |
| Leakage Current | ≤0.01 CV or 3 μA | |
| Polarised | Polar | |
| Ripple Current | 1080mA | |
| Minimum Operating Temperature | -55°C | |
| Lifetime | 4000h | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Technology Hybrid | ||
Capacitance 68µF | ||
Dielectric Material Family Aluminium | ||
Voltage 25V dc | ||
Mounting Type Surface Mount | ||
Equivalent Series Resistance 50mΩ | ||
Lead Pitch 1.8mm | ||
Tolerance ±20% | ||
Depth 5.8mm | ||
Height 5.8mm | ||
Maximum Operating Temperature +125°C | ||
Dimensions 6.3 (Dia) x 5.8mm | ||
Series ZK | ||
Diameter 6.3mm | ||
Automotive Standard AEC-Q200 | ||
Dissipation Factor 14% | ||
Leakage Current ≤0.01 CV or 3 μA | ||
Polarised Polar | ||
Ripple Current 1080mA | ||
Minimum Operating Temperature -55°C | ||
Lifetime 4000h | ||

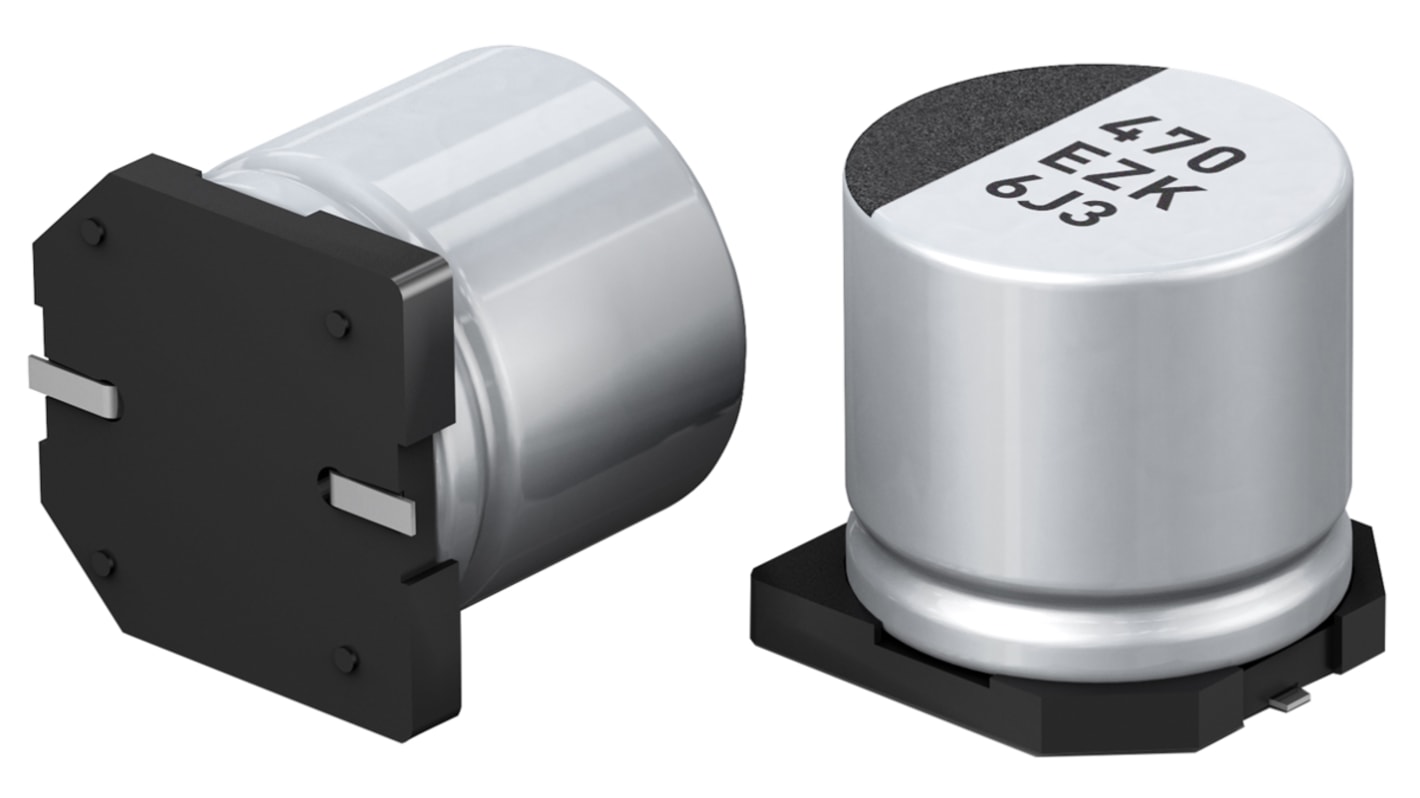

Panasonic ZK Series High Temperature Aluminium Hybrid Capacitors
Panasonic hybrid polymer conductive electrolytic capacitors have a high capacitance and high ripple current. The Capacitors have high temperature and a long life 4000 h at 125°C. The surface-mount conductive polymer components offer a nominal capacitance range of 33 μF up to 470 μF.A voltage range of 25 VDC up to 35 VDC, an operating temperature range of -55°C up to 125°C, and low ESR and high ripple current (85% over, lower ESR than Current V-TP). These capacitors are AEC_Q200 compliant.
Approvals
AEC_Q200 qualified
