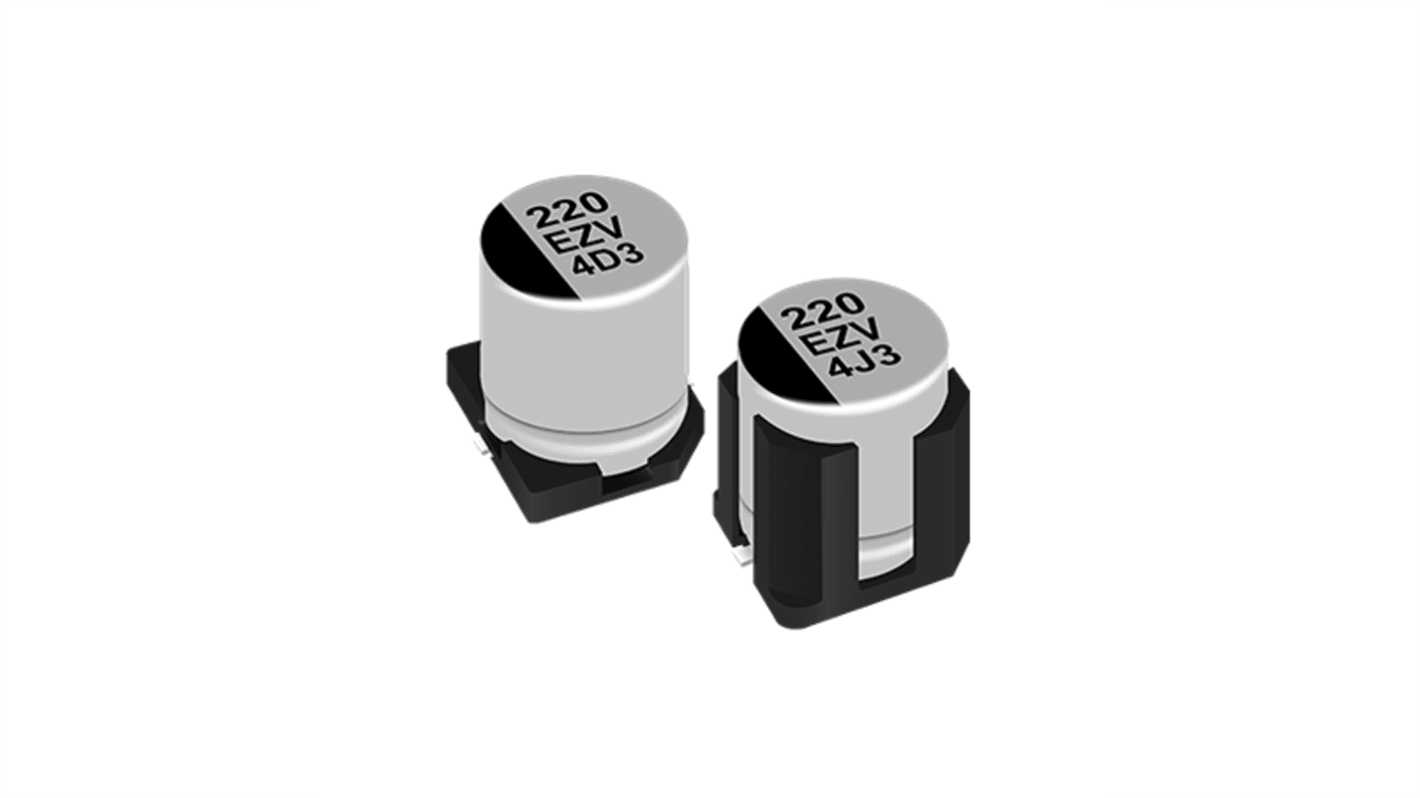

Panasonic 220 μF Surface Polymer Capacitor, 25V
- RS Stock No.:
- 434-003
- Mfr. Part No.:
- EEHZV1E221P
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 5 units)*
£10.35
(exc. VAT)
£12.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 945 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £2.07 | £10.35 |
| 50 - 245 | £1.674 | £8.37 |
| 250 - 495 | £1.284 | £6.42 |
| 500 + | £1.138 | £5.69 |
*price indicative
- RS Stock No.:
- 434-003
- Mfr. Part No.:
- EEHZV1E221P
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Technology | Aluminium Electrolytic | |
| Product Type | Polymer Capacitor | |
| Capacitance | 220μF | |
| Voltage | 25V | |
| Mount Type | Surface | |
| Package/Case | Surface Mount | |
| Polarity | Negative | |
| Lead Pitch | 3.1mm | |
| Tolerance | ±20 % | |
| Maximum Operating Temperature | 135°C | |
| Dimensions | 8 x 10.2 mm | |
| Height | 10.2mm | |
| Series | ZV | |
| Electrolyte Type | Hybrid Aluminium Electrolytic | |
| Dissipation Factor | 0.14% | |
| Automotive Standard | AEC-Q200 | |
| Minimum Operating Temperature | -55°C | |
| Lifetime | 4000 h | |
| Diameter | 8mm | |
| Ripple Current | 3.9A | |
| Anti Vibration | No | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Technology Aluminium Electrolytic | ||
Product Type Polymer Capacitor | ||
Capacitance 220μF | ||
Voltage 25V | ||
Mount Type Surface | ||
Package/Case Surface Mount | ||
Polarity Negative | ||
Lead Pitch 3.1mm | ||
Tolerance ±20 % | ||
Maximum Operating Temperature 135°C | ||
Dimensions 8 x 10.2 mm | ||
Height 10.2mm | ||
Series ZV | ||
Electrolyte Type Hybrid Aluminium Electrolytic | ||
Dissipation Factor 0.14% | ||
Automotive Standard AEC-Q200 | ||
Minimum Operating Temperature -55°C | ||
Lifetime 4000 h | ||
Diameter 8mm | ||
Ripple Current 3.9A | ||
Anti Vibration No | ||
- COO (Country of Origin):
- JP
The Panasonic Hybrid Cap ZV is rated for 25V and 220μF with a temperature range of up to 135°C and a lifespan of 4000 hours. It has a size of 8x10.2 mm, an ESR of 16mΩ, and a ripple current rating of 3.9Arms.
High temperature lead-free reflow
