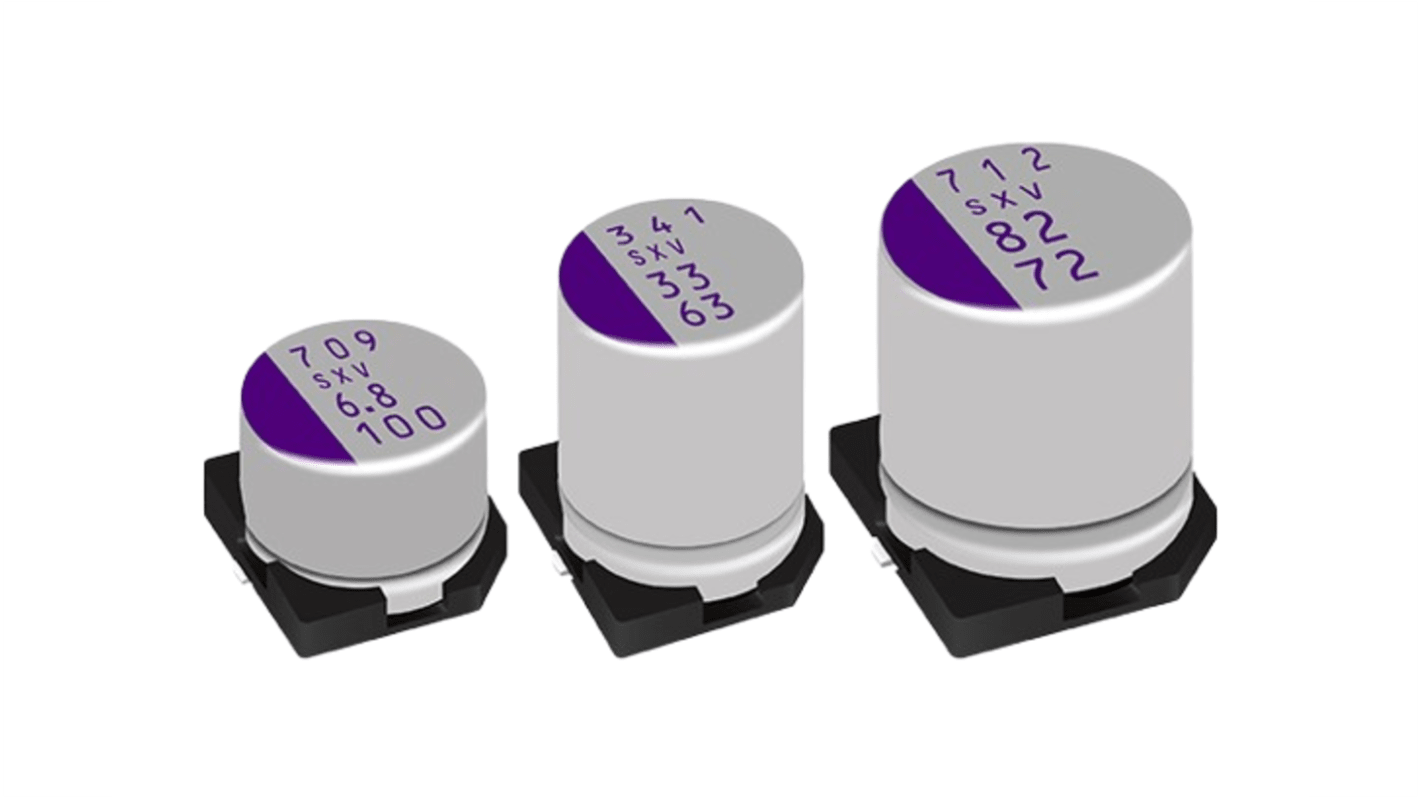

Panasonic 82μF Surface Mount Aluminium Polymer Capacitor, 80V
- RS Stock No.:
- 433-960
- Mfr. Part No.:
- 80SXV82M
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 5 units)*
£12.70
(exc. VAT)
£15.25
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £2.54 | £12.70 |
| 25 + | £2.464 | £12.32 |
*price indicative
- RS Stock No.:
- 433-960
- Mfr. Part No.:
- 80SXV82M
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Technology | Conductive Polymer Aluminium | |
| Capacitance | 82µF | |
| Dielectric Material Family | Conductive Polymer Aluminum | |
| Voltage | 80V | |
| Mounting Type | Surface Mount | |
| Package/Case | F12 | |
| Tolerance | ±20% | |
| Length | 12.6mm | |
| Maximum Operating Temperature | +125°C | |
| Dimensions | 10 x 12.6mm | |
| Series | SXV | |
| Leakage Current | 328 μA | |
| Ripple Current | 980mA | |
| Minimum Operating Temperature | -55°C | |
| Dissipation Factor | 12% | |
| Polarised | Polar | |
| Lifetime | 1000h | |
| Anti Vibration | Yes | |
| Diameter | 10mm | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Technology Conductive Polymer Aluminium | ||
Capacitance 82µF | ||
Dielectric Material Family Conductive Polymer Aluminum | ||
Voltage 80V | ||
Mounting Type Surface Mount | ||
Package/Case F12 | ||
Tolerance ±20% | ||
Length 12.6mm | ||
Maximum Operating Temperature +125°C | ||
Dimensions 10 x 12.6mm | ||
Series SXV | ||
Leakage Current 328 μA | ||
Ripple Current 980mA | ||
Minimum Operating Temperature -55°C | ||
Dissipation Factor 12% | ||
Polarised Polar | ||
Lifetime 1000h | ||
Anti Vibration Yes | ||
Diameter 10mm | ||
- COO (Country of Origin):
- JP
The Panasonic Conductive Polymer Aluminium Solid Capacitor designed for high reliability and efficiency in electronic circuits. It features low equivalent series resistance (ESR) for stable power delivery and surface-mount compatibility, making it ideal for compact designs. It operates within a temperature range of -55°C to 125°C, making it suitable for extreme environments
Super high voltage
High Endurance of 1000 h
Surface Mount Type
RoHS compliance
Halogen free
High Endurance of 1000 h
Surface Mount Type
RoHS compliance
Halogen free
