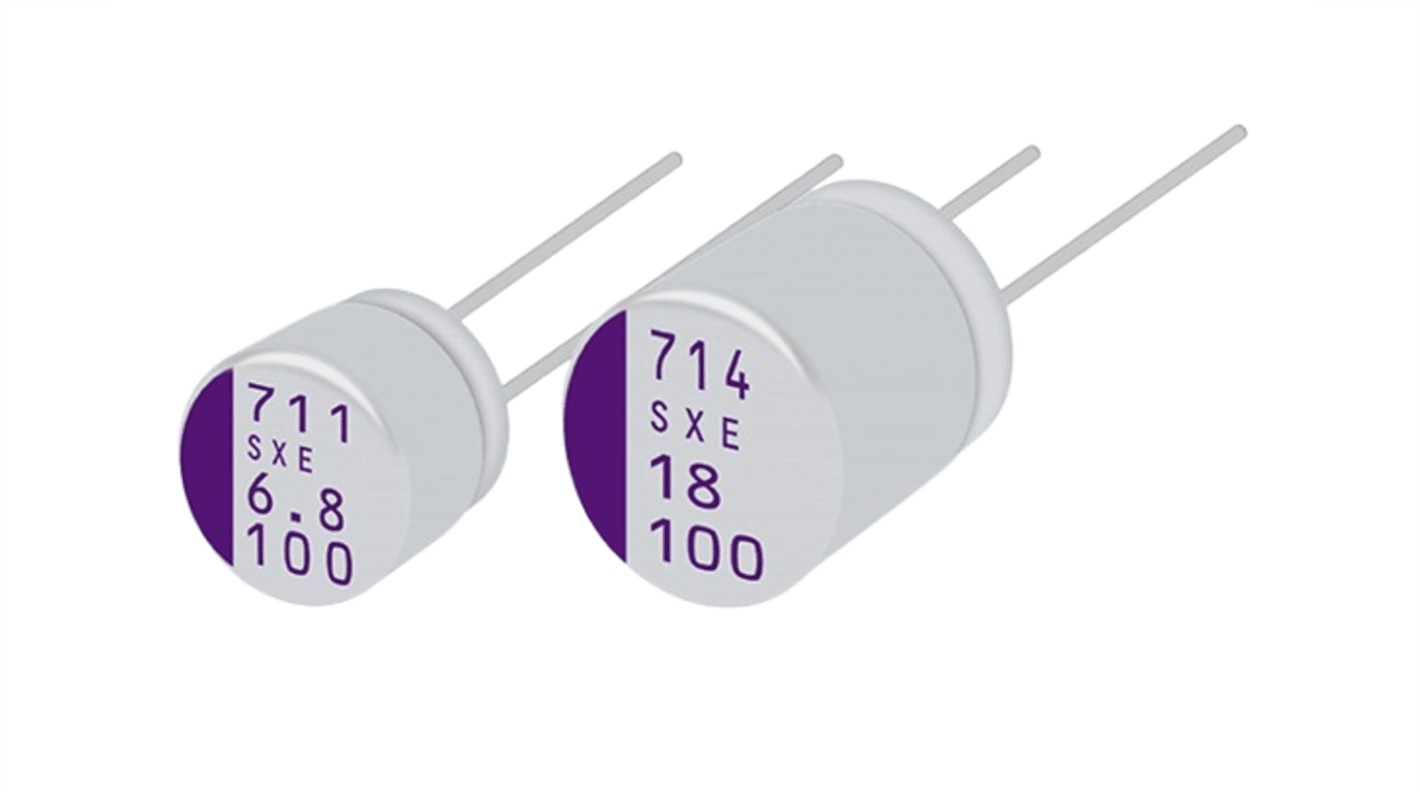

Panasonic 39μF Through Hole Aluminium Polymer Capacitor, 100V
- RS Stock No.:
- 433-941
- Mfr. Part No.:
- 100SXE39M+3
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 5 units)*
£12.27
(exc. VAT)
£14.725
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 14 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £2.454 | £12.27 |
| 25 + | £2.38 | £11.90 |
*price indicative
- RS Stock No.:
- 433-941
- Mfr. Part No.:
- 100SXE39M+3
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Technology | Conductive Polymer Aluminium | |
| Capacitance | 39µF | |
| Voltage | 100V | |
| Dielectric Material Family | Conductive Polymer Aluminum | |
| Mounting Type | Through Hole | |
| Package/Case | F13 | |
| Lead Pitch | 5mm | |
| Tolerance | ±20% | |
| Length | 13mm | |
| Maximum Operating Temperature | +125°C | |
| Dimensions | 10 x 13mm | |
| Series | SXE | |
| Dissipation Factor | 0.12% | |
| Minimum Operating Temperature | -55°C | |
| Ripple Current | 940mA | |
| Leakage Current | 195 μA | |
| Anti Vibration | Yes | |
| Polarised | Polar | |
| Diameter | 10mm | |
| Lifetime | 1000h | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Technology Conductive Polymer Aluminium | ||
Capacitance 39µF | ||
Voltage 100V | ||
Dielectric Material Family Conductive Polymer Aluminum | ||
Mounting Type Through Hole | ||
Package/Case F13 | ||
Lead Pitch 5mm | ||
Tolerance ±20% | ||
Length 13mm | ||
Maximum Operating Temperature +125°C | ||
Dimensions 10 x 13mm | ||
Series SXE | ||
Dissipation Factor 0.12% | ||
Minimum Operating Temperature -55°C | ||
Ripple Current 940mA | ||
Leakage Current 195 μA | ||
Anti Vibration Yes | ||
Polarised Polar | ||
Diameter 10mm | ||
Lifetime 1000h | ||
- COO (Country of Origin):
- JP
The Panasonic Conductive Polymer Aluminium Solid Capacitor designed for high reliability and performance in demanding applications. It features low equivalent series resistance (ESR), ensuring efficient power delivery and stability. It operates within a temperature range of -55°C to 125°C, making it suitable for extreme environments
Super high voltage
High Endurance of 1000 h
Radial Lead Type
RoHS compliance
Halogen free
High Endurance of 1000 h
Radial Lead Type
RoHS compliance
Halogen free
