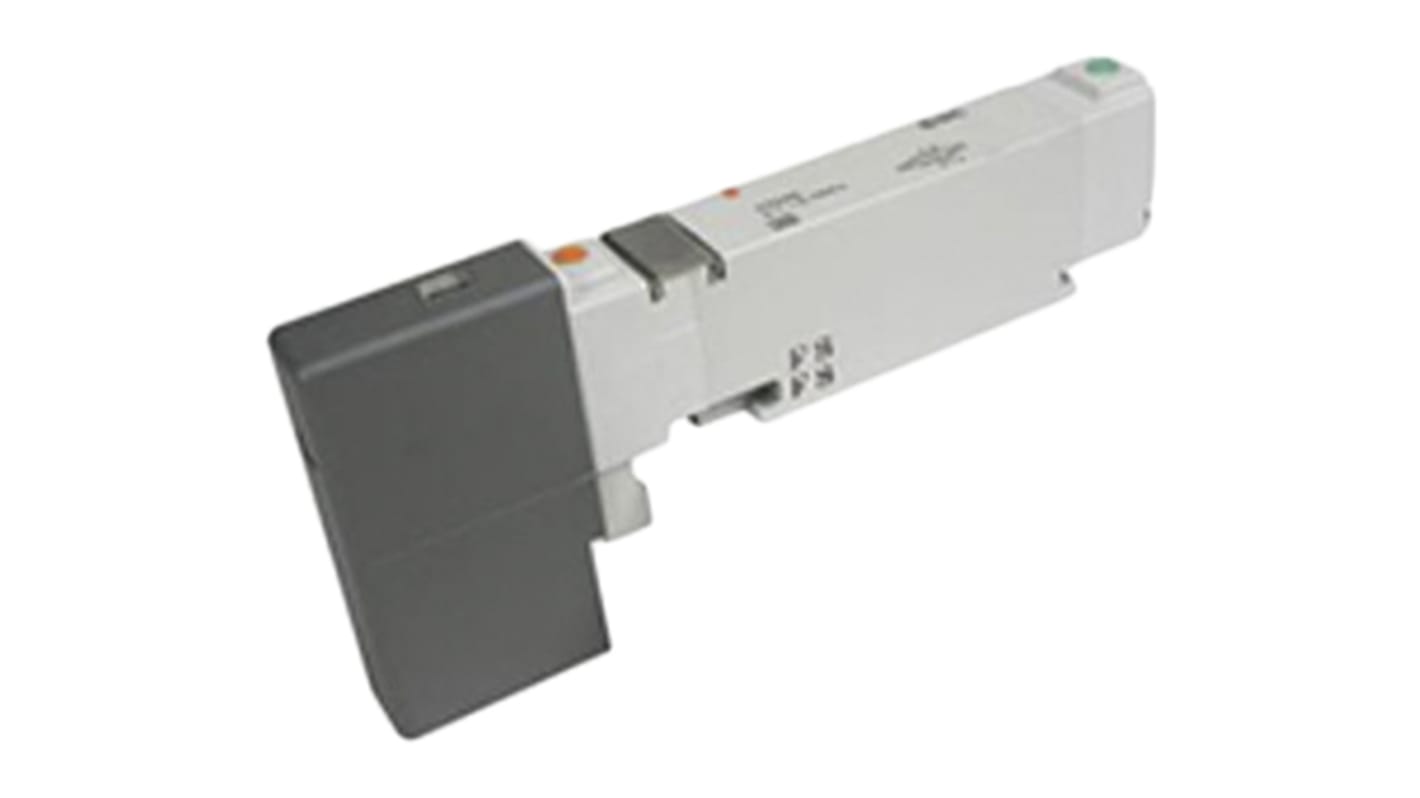

SMC 5/2 Pneumatic Solenoid Valve - Solenoid/Spring VQC1000 Series 24V dc

View all Pneumatic Solenoid Valves

Subtotal (1 unit)*

£59.91

(exc. VAT)

£71.89

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£59.91

*price indicative

Pneumatic Solenoid Valves to Solenoid Valve Coils
Need Coils for Your Solenoid Valves?
Pneumatic solenoid valves rely on compatible coils to operate efficiently. If you're browsing valves, don’t forget to check out our range of solenoid valve coils—designed to deliver reliable actuation and optimal performance. Whether you're replacing a coil or building a new system, pairing your valve with the right coil ensures smooth and responsive control.
Shop Now
RS Stock No.:
912-1058
Mfr. Part No.:
VQC1101N-5D1
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Function

5/2

Actuation Type

Solenoid/Spring

Manufacturer Series

VQC1000

Mounting Style

Base Mount

Solenoid Voltage

24V dc

Number of Ports

5

Body Material

Die Cast Zinc

Solenoid Power Consumption

1W

Minimum Operating Pressure

150kPa

Maximum Operating Pressure

0.7 Mpa

Number of Positions

2

Maximum Operating Temperature

+50°C

Minimum Operating Temperature

-10

Configuration

2-Position Single

Special Features

It has outstanding response times and long life

COO (Country of Origin):
FR

5 Port Solenoid Valves - VQC


SMC’s VQC series of solenoid valves offer fast and reliable control of pneumatic systems. The VQC solenoid valves demonstrate a fast response time of only 20ms and long life expectancy of up to 200 million cycles. A compact design and high flow capacity make them suitable for a variety of applications. Installation and maintainence is made simple using a single screw and clamp system on the manifold.

Service life of up to 200 million cycles
Compact design
Large flow capacity
Easy mounting
