SMC 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot/Spring VCQ1000 Series 24V dc
- RS Stock No.:
- 840-6759
- Mfr. Part No.:
- VQC1101N-51
- Brand:
- SMC
Bulk discount available
Subtotal (1 unit)*
£59.36
(exc. VAT)
£71.23
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £59.36 |
5 + | £56.99 |
*price indicative
- RS Stock No.:
- 840-6759
- Mfr. Part No.:
- VQC1101N-51
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Function | 5/2 | |
Actuation Type | Solenoid/Pilot/Spring | |
Manufacturer Series | VCQ1000 | |
Mounting Style | Base Mount | |
Solenoid Voltage | 24V dc | |
Solenoid Fitted | Yes | |
Number of Ports | 5/2 | |
Solenoid Power Consumption | 1W | |
Minimum Operating Pressure | 0.15MPa | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +50°C | |
Maximum Operating Pressure | 0.7 MPa | |
Select all | ||
---|---|---|
Brand SMC | ||
Function 5/2 | ||
Actuation Type Solenoid/Pilot/Spring | ||
Manufacturer Series VCQ1000 | ||
Mounting Style Base Mount | ||
Solenoid Voltage 24V dc | ||
Solenoid Fitted Yes | ||
Number of Ports 5/2 | ||
Solenoid Power Consumption 1W | ||
Minimum Operating Pressure 0.15MPa | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +50°C | ||
Maximum Operating Pressure 0.7 MPa | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP

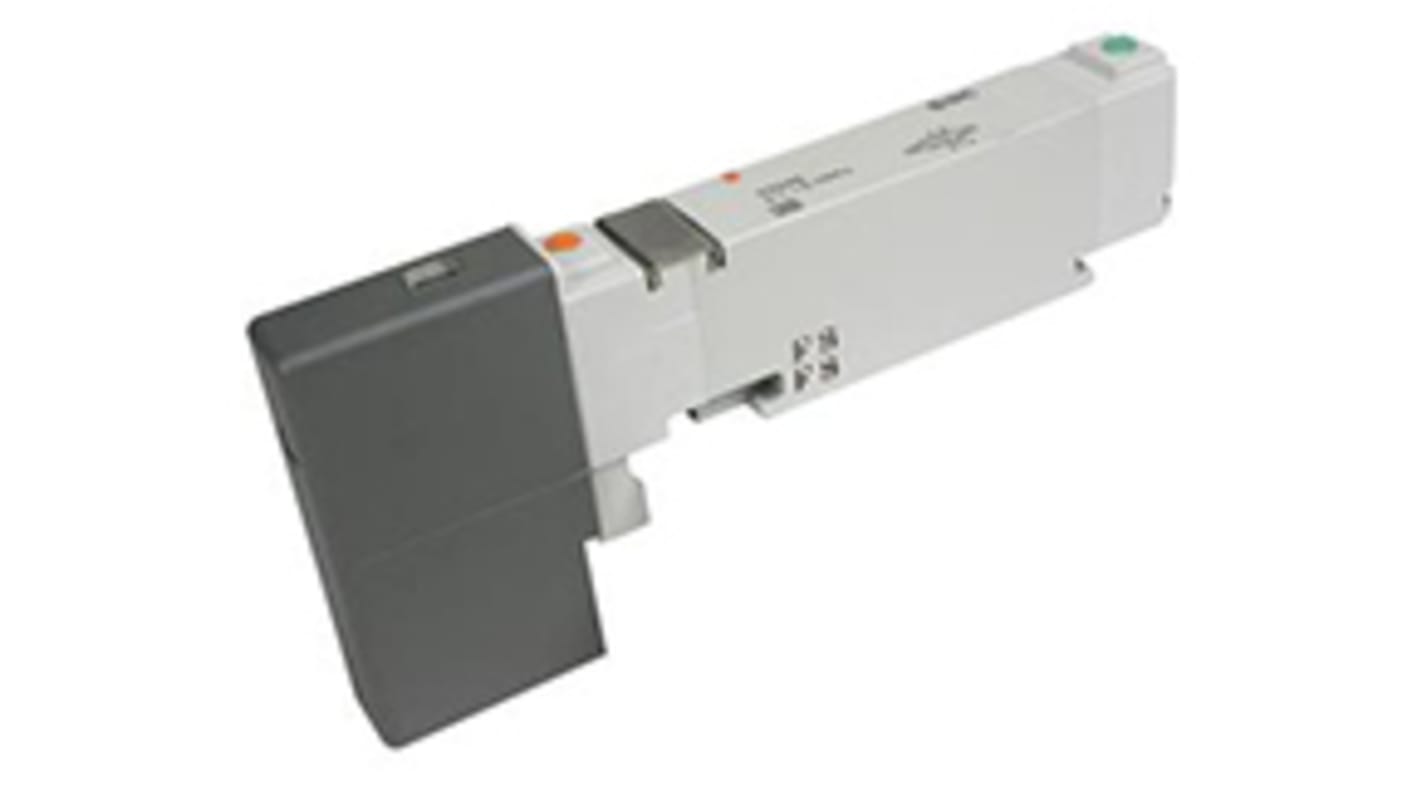

SMC Solenoid Valve
The SMC VQC1000 series 5/2 port solenoid valve has operating pressure ranging between 0.15MPa and 0.7MPa. Its solenoid voltage is 24VDC and 1W power consumption. This valve offers fast and reliable control of pneumatic systems. The VQC solenoid valves demonstrate a fast response time of only 20 milliseconds and long life expectancy of up to 200 million cycles. It has a compact design and high flow capacity that make them suitable for a variety of applications. By using a single screw and clamp system on the manifold, installation and maintenance are made simple.
Features and Benefits
Easy mounting
Large flow capacity
Large flow capacity
Certifications
IP67 rated
