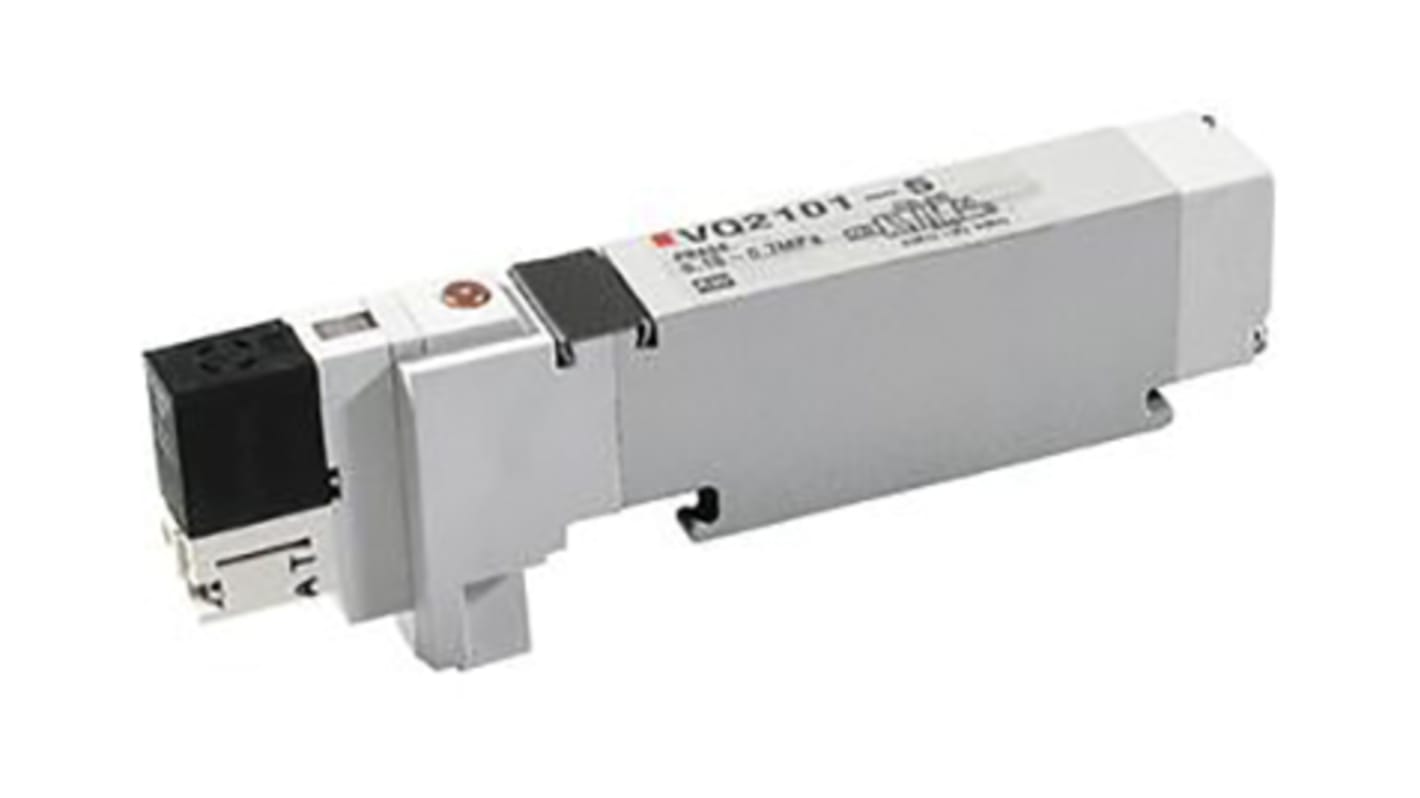

SMC 5/2 Pneumatic Solenoid Valve - Solenoid/Spring VQ2000 Series 24V dc
- RS Stock No.:
- 912-1042
- Mfr. Part No.:
- VQ2101N-51-Q
- Brand:
- SMC
Subtotal (1 unit)*
£71.97
(exc. VAT)
£86.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £71.97 |
*price indicative
- RS Stock No.:
- 912-1042
- Mfr. Part No.:
- VQ2101N-51-Q
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Function | 5/2 | |
Actuation Type | Solenoid/Spring | |
Manufacturer Series | VQ2000 | |
Mounting Style | Base Mount | |
Solenoid Voltage | 24V dc | |
Number of Ports | 5 | |
Solenoid Power Consumption | 1W | |
Minimum Operating Pressure | 100kPa | |
Configuration | 2-Position Single | |
Number of Positions | 2 | |
Minimum Operating Temperature | -10 | |
Maximum Operating Pressure | 0.7 Mpa | |
Select all | ||
---|---|---|
Brand SMC | ||
Function 5/2 | ||
Actuation Type Solenoid/Spring | ||
Manufacturer Series VQ2000 | ||
Mounting Style Base Mount | ||
Solenoid Voltage 24V dc | ||
Number of Ports 5 | ||
Solenoid Power Consumption 1W | ||
Minimum Operating Pressure 100kPa | ||
Configuration 2-Position Single | ||
Number of Positions 2 | ||
Minimum Operating Temperature -10 | ||
Maximum Operating Pressure 0.7 Mpa | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
SMC VQ2000 Series
VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labour.
Fluid: air/inert gas
Operating pressure range: 0.15 - 1.0MPa
Effective area mm 2 (Cv): 2 position metal seal 36.0 (2.0); 2 position rubber seal 39.6 (2.2)
3 position metal seal 19.8 - 36.0 (1.1 - 2.0); 3 position rubber seal 21.6 - 39.6 (1.2 - 2.2)
Coil rated voltage: 12, 24VDC; 100, 110, 200, 220VAC
Response time (ms) standard 1W: metal seal 12 or less to 55 or less; rubber seal 15 or less to 62 or less
Ambient fluid temperature: metal seal -10 50C; rubber seal -5 50C
Optional IP65 enclosure
Operating pressure range: 0.15 - 1.0MPa
Effective area mm 2 (Cv): 2 position metal seal 36.0 (2.0); 2 position rubber seal 39.6 (2.2)
3 position metal seal 19.8 - 36.0 (1.1 - 2.0); 3 position rubber seal 21.6 - 39.6 (1.2 - 2.2)
Coil rated voltage: 12, 24VDC; 100, 110, 200, 220VAC
Response time (ms) standard 1W: metal seal 12 or less to 55 or less; rubber seal 15 or less to 62 or less
Ambient fluid temperature: metal seal -10 50C; rubber seal -5 50C
Optional IP65 enclosure
SMC VQ Series
