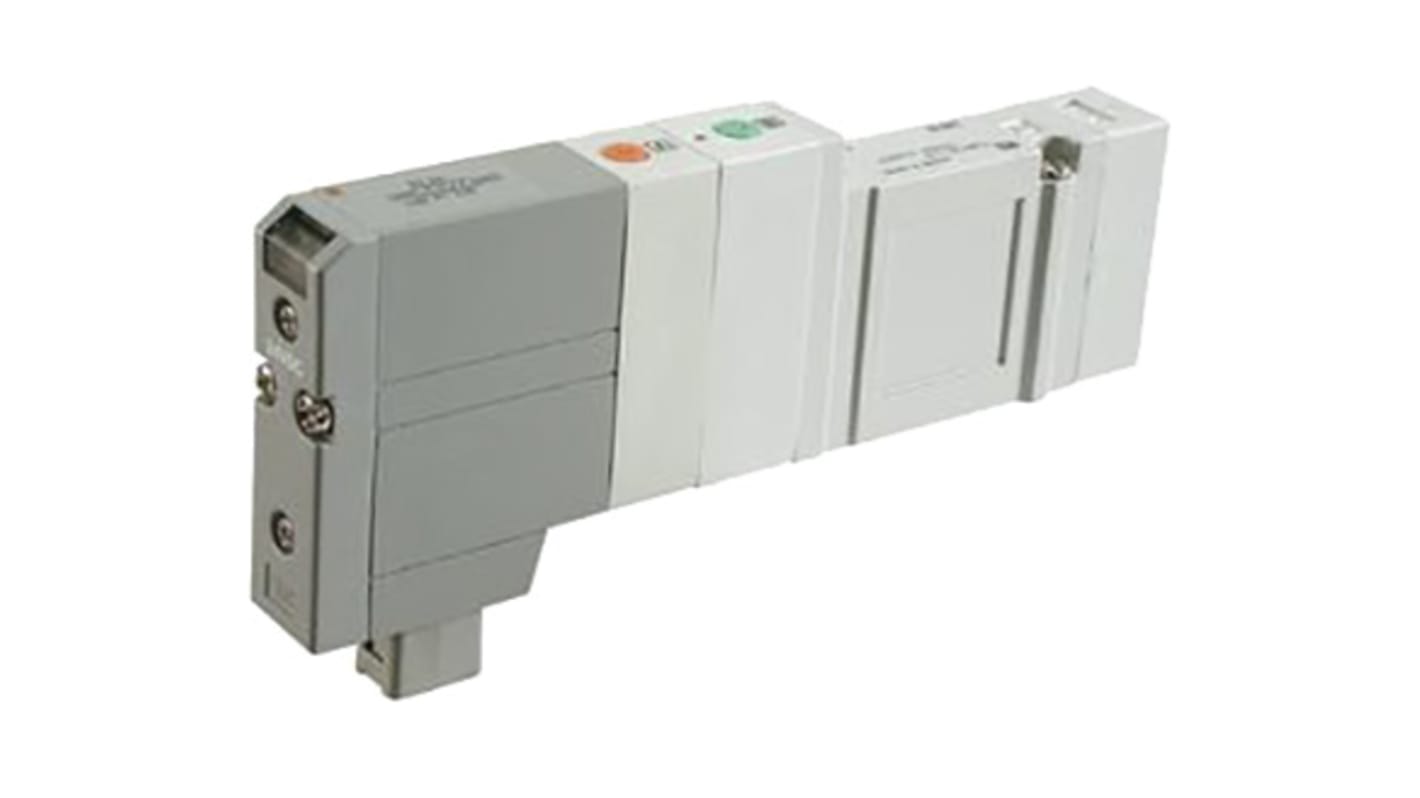

SMC 4/3 Pneumatic Solenoid Valve - Solenoid/Solenoid SV Series 24V dc
- RS Stock No.:
- 907-6560
- Mfr. Part No.:
- SV1A00-5FU-C-C6
- Brand:
- SMC
Subtotal (1 unit)*
£114.28
(exc. VAT)
£137.14
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £114.28 |
*price indicative
- RS Stock No.:
- 907-6560
- Mfr. Part No.:
- SV1A00-5FU-C-C6
- Brand:
- SMC
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Function | 4/3 | |
| Actuation Type | Solenoid/Solenoid | |
| Manufacturer Series | SV | |
| Mounting Style | Plug In | |
| Solenoid Voltage | 24V dc | |
| Number of Ports | 5 | |
| Body Material | Die Cast Aluminium | |
| Solenoid Power Consumption | 0.6W | |
| Minimum Operating Pressure | 0.15MPa | |
| Maximum Operating Temperature | +50°C | |
| Minimum Operating Temperature | -10°C | |
| Number of Positions | 4 | |
| Configuration | 4 Position Dual 3 Port | |
| Maximum Operating Pressure | 0.7 MPa | |
| Special Features | Internal Pilot, Light/Surge Voltage Suppressor | |
Select all | ||
|---|---|---|
Brand SMC | ||
Function 4/3 | ||
Actuation Type Solenoid/Solenoid | ||
Manufacturer Series SV | ||
Mounting Style Plug In | ||
Solenoid Voltage 24V dc | ||
Number of Ports 5 | ||
Body Material Die Cast Aluminium | ||
Solenoid Power Consumption 0.6W | ||
Minimum Operating Pressure 0.15MPa | ||
Maximum Operating Temperature +50°C | ||
Minimum Operating Temperature -10°C | ||
Number of Positions 4 | ||
Configuration 4 Position Dual 3 Port | ||
Maximum Operating Pressure 0.7 MPa | ||
Special Features Internal Pilot, Light/Surge Voltage Suppressor | ||
- COO (Country of Origin):
- JP
SV Series Solenoid Valves
The SV Series had been designed to make instillation and changes simpler by utilising a multi-connector rather than the conventional lead wires for internal manifold wiring. Cassette base type manifolds offer great flexibility and modified sections can be added using a simple release mechanism. For ultimate flexibility conventional tie-rod base manifolds are also available. The use of 34 pin connectors allows up to 16 stations with double solenoids.
Fluid: air
Operating pressure range: -100kPa to 0.7MPa
Response time (at 0.5MPa): 18ms or less
Coil rated voltage: 12, 24 Vdc
Ambient and fluid temperature: -10 to +50 °C
Enclosure: IP67 (based on IEC529)
Operating pressure range: -100kPa to 0.7MPa
Response time (at 0.5MPa): 18ms or less
Coil rated voltage: 12, 24 Vdc
Ambient and fluid temperature: -10 to +50 °C
Enclosure: IP67 (based on IEC529)
SMC SV Series
