- RS Stock No.:
- 655-6824
- Mfr. Part No.:
- 81513196
- Brand:
- Crouzet
2 In stock - FREE next working day delivery available
5 available from Europe for delivery within 1 working day(s).
Added
Price Each
£40.56
(exc. VAT)
£48.67
(inc. VAT)
Units | Per unit |
1 - 4 | £40.56 |
5 - 9 | £39.44 |
10 - 24 | £38.37 |
25 - 49 | £37.36 |
50 + | £36.40 |
- RS Stock No.:
- 655-6824
- Mfr. Part No.:
- 81513196
- Brand:
- Crouzet
Technical Reference
Legislation and Compliance
Product Details

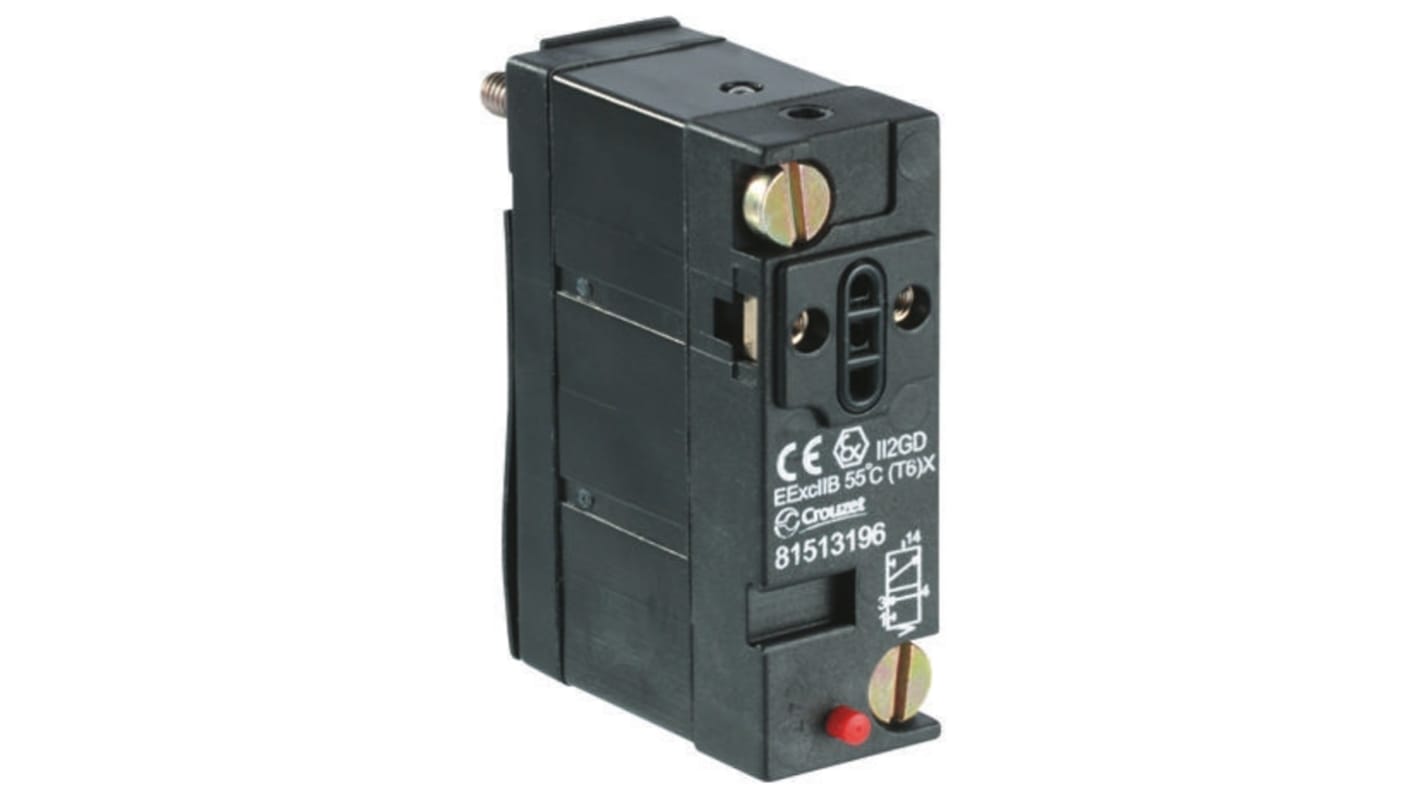

Miniature distributor 3 / 2 N/C
Miniature distributor 3 / 2 N/C monostable for use in flammable environments.
Relay switching time: 15 s.
Flow rate at 6 bar with Ø 4 mm sub-base: 200 Nl / min.
Flow rate at 6 bar with Ø 6 mm sub-base: 300 Nl / min.
Equivalent section with Ø 4 mm sub-base: 2.2 kV.
Equivalent section with Ø 6 mm sub-base: 2.5 kV.
Mechanical endurance: 1.5 x 107 operations.
Opening Ø: 3 mm.
Consumption: 0.7 W.
Weight: 38 g
Dimensions: 515 x 175 x 352 mm.
Relay switching time: 15 s.
Flow rate at 6 bar with Ø 4 mm sub-base: 200 Nl / min.
Flow rate at 6 bar with Ø 6 mm sub-base: 300 Nl / min.
Equivalent section with Ø 4 mm sub-base: 2.2 kV.
Equivalent section with Ø 6 mm sub-base: 2.5 kV.
Mechanical endurance: 1.5 x 107 operations.
Opening Ø: 3 mm.
Consumption: 0.7 W.
Weight: 38 g
Dimensions: 515 x 175 x 352 mm.
Certificate No.
II 2 GD EEx c II B 55 °C T6X
Crouzet
Modular solenoid valves and accessories that have been designed for manifold assembly, and DIN rail mounting.The valves act as a functional interface between electrical/electronic control systems and pneumatic drives.Main Features:
Low power consumption (1W)
High output pressure range, 3 to 8 bar
Rapid installation and easy maintenance
Ideal for use with programmable controllers
High output pressure range, 3 to 8 bar
Rapid installation and easy maintenance
Ideal for use with programmable controllers
Specifications
Attribute | Value |
---|---|
Function | 3/2 |
Actuation Type | Pilot/Spring |
Manufacturer Series | 81 |
Mounting Style | DIN Rail |
Number of Ports | 3/2 |
Maximum Flow Rate | 300NL/min |
Minimum Operating Pressure | 3bar |
Hazardous Area Certification | ATEX |
Maximum Operating Temperature | +50°C |
Minimum Operating Temperature | -10°C |
Maximum Operating Pressure | 8bar |
