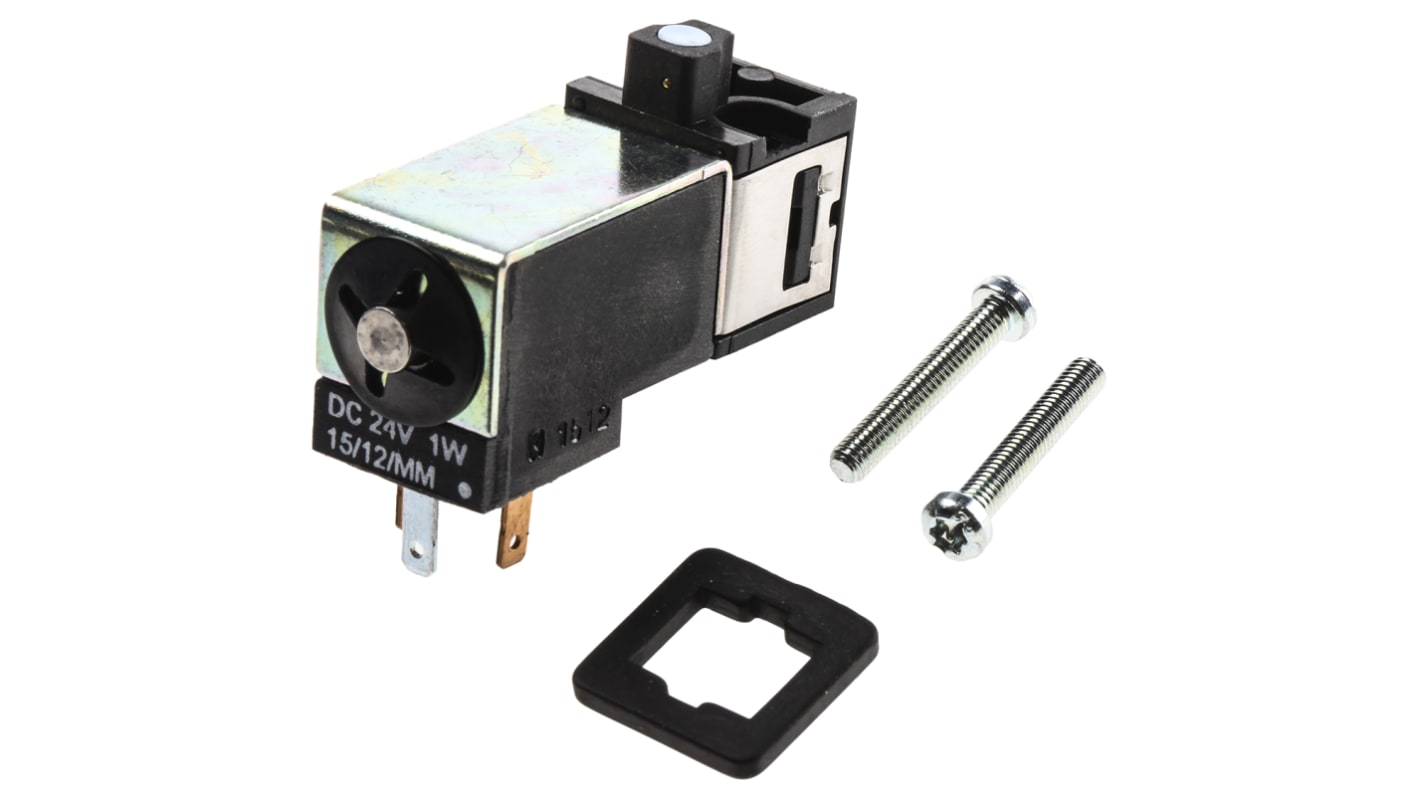

Crouzet 3/2 Pneumatic Solenoid Valve - 81 Series 24V dc
- RS Stock No.:
- 179-0669
- Mfr. Part No.:
- 81519332
- Brand:
- Crouzet
Bulk discount available
Subtotal (1 unit)*
£41.51
(exc. VAT)
£49.81
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship
- Plus 44 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £41.51 |
| 5 - 9 | £39.43 |
| 10 - 24 | £37.37 |
| 25 - 49 | £35.77 |
| 50 + | £34.87 |
*price indicative
- RS Stock No.:
- 179-0669
- Mfr. Part No.:
- 81519332
- Brand:
- Crouzet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Function | 3/2 | |
| Manufacturer Series | 81 | |
| Mounting Style | Manifold | |
| Solenoid Voltage | 24V dc | |
| Solenoid Fitted | Yes | |
| Number of Ports | 3/2 | |
| Maximum Flow Rate | 25NL/min | |
| Solenoid Power Consumption | 1W | |
| Minimum Operating Pressure | 1bar | |
| Maximum Operating Temperature | +50°C | |
| Maximum Operating Pressure | 8bar | |
| Minimum Operating Temperature | -10°C | |
Select all | ||
|---|---|---|
Brand Crouzet | ||
Function 3/2 | ||
Manufacturer Series 81 | ||
Mounting Style Manifold | ||
Solenoid Voltage 24V dc | ||
Solenoid Fitted Yes | ||
Number of Ports 3/2 | ||
Maximum Flow Rate 25NL/min | ||
Solenoid Power Consumption 1W | ||
Minimum Operating Pressure 1bar | ||
Maximum Operating Temperature +50°C | ||
Maximum Operating Pressure 8bar | ||
Minimum Operating Temperature -10°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- MA
Crouzet Miniature Solenoid Valve
The Crouzet 81 series 3/2 ports electro-pneumatic miniature solenoid valve has a supply voltage of 24VDC. This NC valve acts as a functional interface between electrical/electronic control systems and pneumatic drives. It is suitable for compressed air or inert gas and is oil-free. air is filtered up to 50μ.
Features and Benefits
Conform to the low voltage directive
For mounting on sub-base or footprint in accordance with CNOMO recommendation E-06-36-120N
Ideal for use with programmable controllers
Low power consumption of 1W
Manual override by impulse
Maximum flow rate is 25NL/min
Operating pressure ranges between -10bar and 8bar
Operating temperature ranges between -10°C and 50°C
Rapid installation and easy maintenance
For mounting on sub-base or footprint in accordance with CNOMO recommendation E-06-36-120N
Ideal for use with programmable controllers
Low power consumption of 1W
Manual override by impulse
Maximum flow rate is 25NL/min
Operating pressure ranges between -10bar and 8bar
Operating temperature ranges between -10°C and 50°C
Rapid installation and easy maintenance
Certifications
IP65 rated
