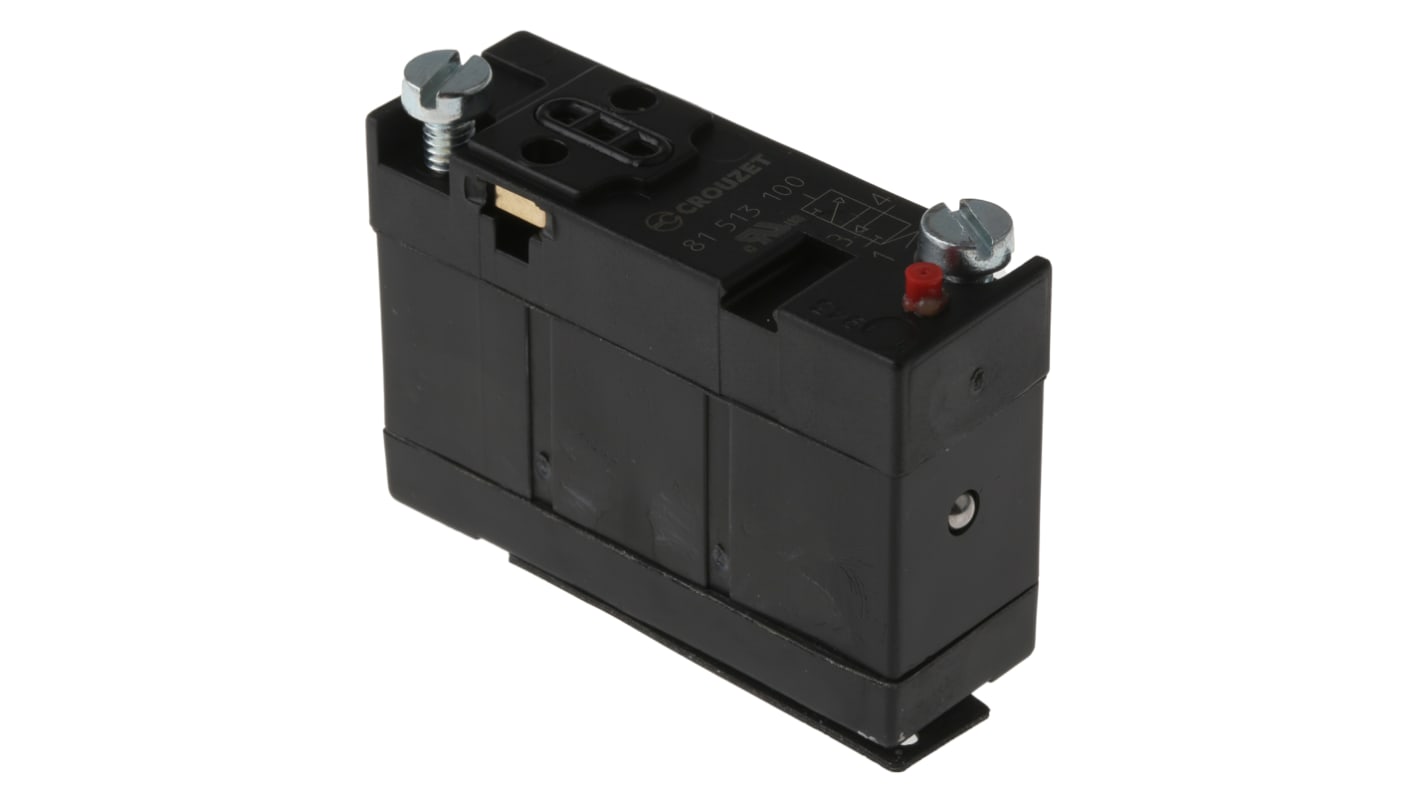

Crouzet 3/2 Pneumatic Solenoid Valve - Pilot/Spring 81 Series
- RS Stock No.:
- 722-845
- Mfr. Part No.:
- 81513100
- Brand:
- Crouzet
Bulk discount available
Subtotal (1 unit)*
£24.72
(exc. VAT)
£29.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 68 unit(s) ready to ship
- Plus 107 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £24.72 |
5 - 9 | £23.49 |
10 - 24 | £22.26 |
25 - 49 | £21.02 |
50 + | £19.78 |
*price indicative
- RS Stock No.:
- 722-845
- Mfr. Part No.:
- 81513100
- Brand:
- Crouzet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Crouzet | |
Function | 3/2 | |
Actuation Type | Pilot/Spring | |
Manufacturer Series | 81 | |
Mounting Style | DIN Rail | |
Number of Ports | 3/2 | |
Maximum Flow Rate | 300NL/min | |
Minimum Operating Pressure | 3bar | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +50°C | |
Maximum Operating Pressure | 8bar | |
Select all | ||
---|---|---|
Brand Crouzet | ||
Function 3/2 | ||
Actuation Type Pilot/Spring | ||
Manufacturer Series 81 | ||
Mounting Style DIN Rail | ||
Number of Ports 3/2 | ||
Maximum Flow Rate 300NL/min | ||
Minimum Operating Pressure 3bar | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +50°C | ||
Maximum Operating Pressure 8bar | ||
RoHS Status: Exempt


Crouzet Solenoid Valve Module
The Crouzet 81 series 3/2 ports electro-pneumatic miniature solenoid valve has a maximum flow rate of 300NL/min. This monostable NC valve acts as a functional interface between electrical/electronic control systems and pneumatic drives. It is suitable for compressed air or inert gas and is oil-free. air is filtered up to 50μ.
Features and Benefits
Ideal for use with programmable controllers
Operating pressure ranges between 3bar and 8bar
Operating temperature ranges between -10°C and 50°C
Rapid installation and easy maintenance
Operating pressure ranges between 3bar and 8bar
Operating temperature ranges between -10°C and 50°C
Rapid installation and easy maintenance
Certifications
IP65 rated
