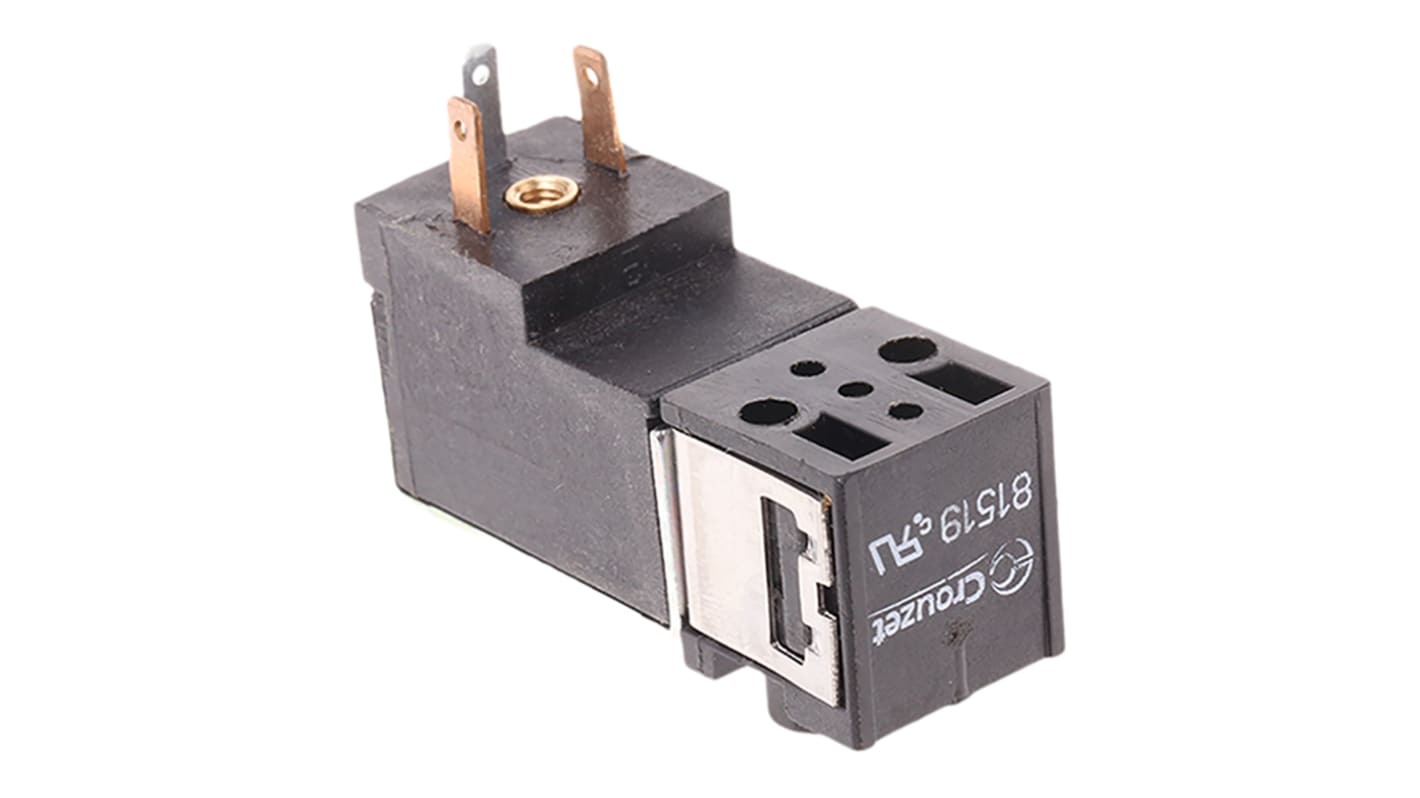

Crouzet 3/2 Pneumatic Solenoid Valve - Solenoid/Pilot 81 Series 220 → 230V ac

View all Pneumatic Solenoid Valves
Bulk discount available

Subtotal (1 unit)*

£93.64

(exc. VAT)

£112.37

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 12 unit(s) shipping from 27 October 2025
  • Plus 999,999,987 unit(s) shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£93.64
5 - 9£91.05
10 - 24£88.58
25 - 49£86.24
50 +£84.02

*price indicative

Pneumatic Solenoid Valves to Solenoid Valve Coils
Need Coils for Your Solenoid Valves?
Pneumatic solenoid valves rely on compatible coils to operate efficiently. If you're browsing valves, don’t forget to check out our range of solenoid valve coils—designed to deliver reliable actuation and optimal performance. Whether you're replacing a coil or building a new system, pairing your valve with the right coil ensures smooth and responsive control.
Shop Now
RS Stock No.:
722-930
Mfr. Part No.:
81519379
Brand:
Crouzet
Find similar products by selecting one or more attributes.
Select all

Brand

Crouzet

Function

3/2

Actuation Type

Solenoid/Pilot

Manufacturer Series

81

Mounting Style

Manifold

Solenoid Voltage

220 → 230V ac

Solenoid Fitted

Yes

Number of Ports

3/2

Maximum Flow Rate

12NL/min

Solenoid Power Consumption

2.5VA

Minimum Operating Pressure

1bar

Maximum Operating Temperature

+50°C

Maximum Operating Pressure

8bar

Minimum Operating Temperature

-10°C

RoHS Status: Exempt

Solenoid Pilot Operator


Available as Impulse, maintained and with or without override
Electrical connections via sub-base

Note

For use with single sub base, double sub base and LED's.

Warning

Whilst generally considered a safe source of energy, Compressed Air must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended.


Crouzet


Modular solenoid valves and accessories that have been designed for manifold assembly, and DIN rail mounting.The valves act as a functional interface between electrical/electronic control systems and pneumatic drives.Main Features:


Low power consumption (1W)
High output pressure range, 3 to 8 bar
Rapid installation and easy maintenance
Ideal for use with programmable controllers
