Crouzet 3/2 NO Solenoid Valve - Solenoid/Spring Push in 0.8 mm
- RS Stock No.:
- 238-2492
- Mfr. Part No.:
- 81519132
- Brand:
- Crouzet
Subtotal (1 unit)*
£67.29
(exc. VAT)
£80.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £67.29 |
*price indicative
- RS Stock No.:
- 238-2492
- Mfr. Part No.:
- 81519132
- Brand:
- Crouzet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Crouzet | |
Function | 3/2 NO | |
Connection Port Thread | Push in 0.8 mm | |
Actuation Type | Solenoid/Spring | |
Mounting Style | Inline | |
Select all | ||
---|---|---|
Brand Crouzet | ||
Function 3/2 NO | ||
Connection Port Thread Push in 0.8 mm | ||
Actuation Type Solenoid/Spring | ||
Mounting Style Inline | ||
- COO (Country of Origin):
- MA

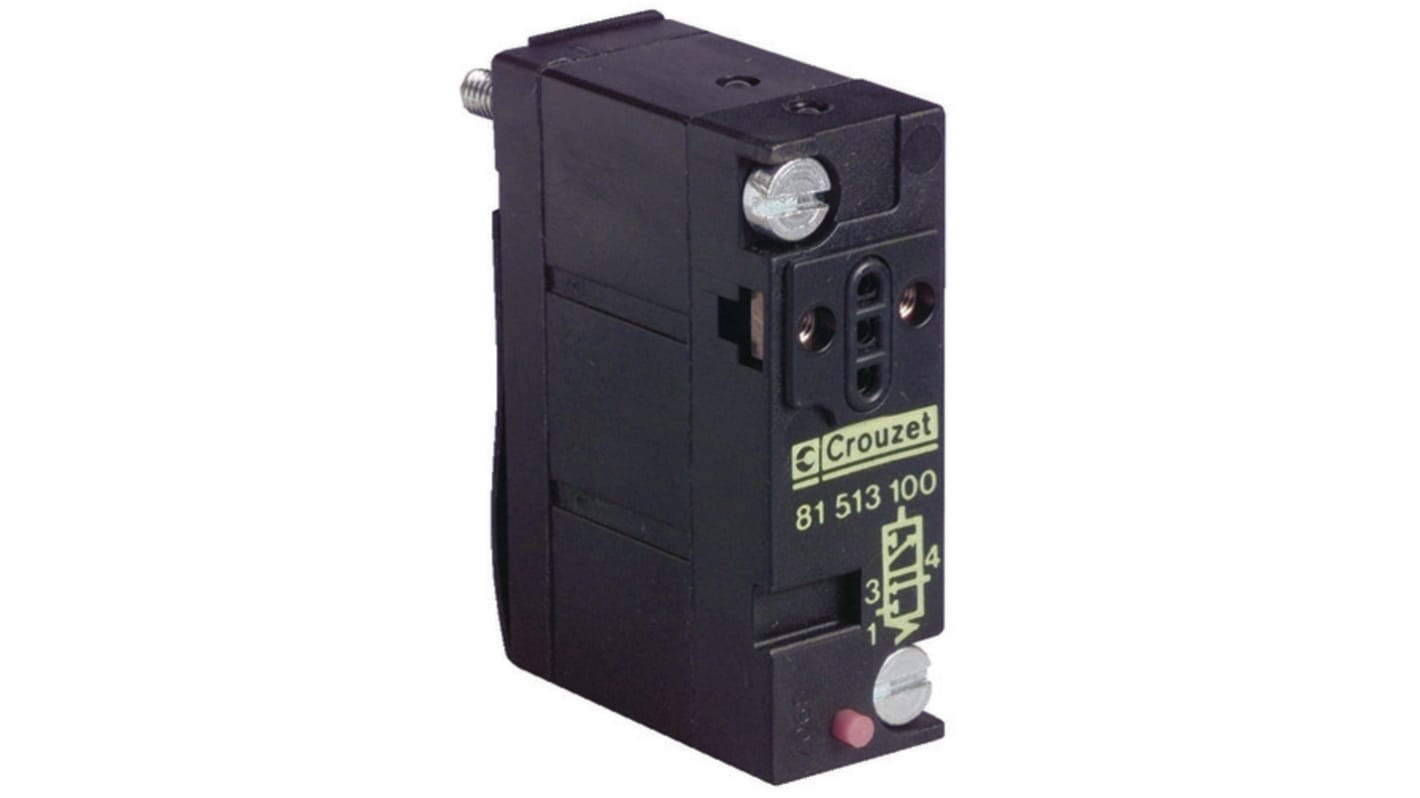

The Crouzet pneumatic miniature solenoid valve 3/2 NC 12v without manual override for valve modules. It has electrical connection of flat faston connectors 2.8 x 0.5,nwith 4 possible positions.
Supply pressure of 1 bar to 8 bars
Operating temperature in dry air -10°C to 50°C
Response time of 5ms to 15ms
Duty factor of 100%
Operating temperature in dry air -10°C to 50°C
Response time of 5ms to 15ms
Duty factor of 100%
