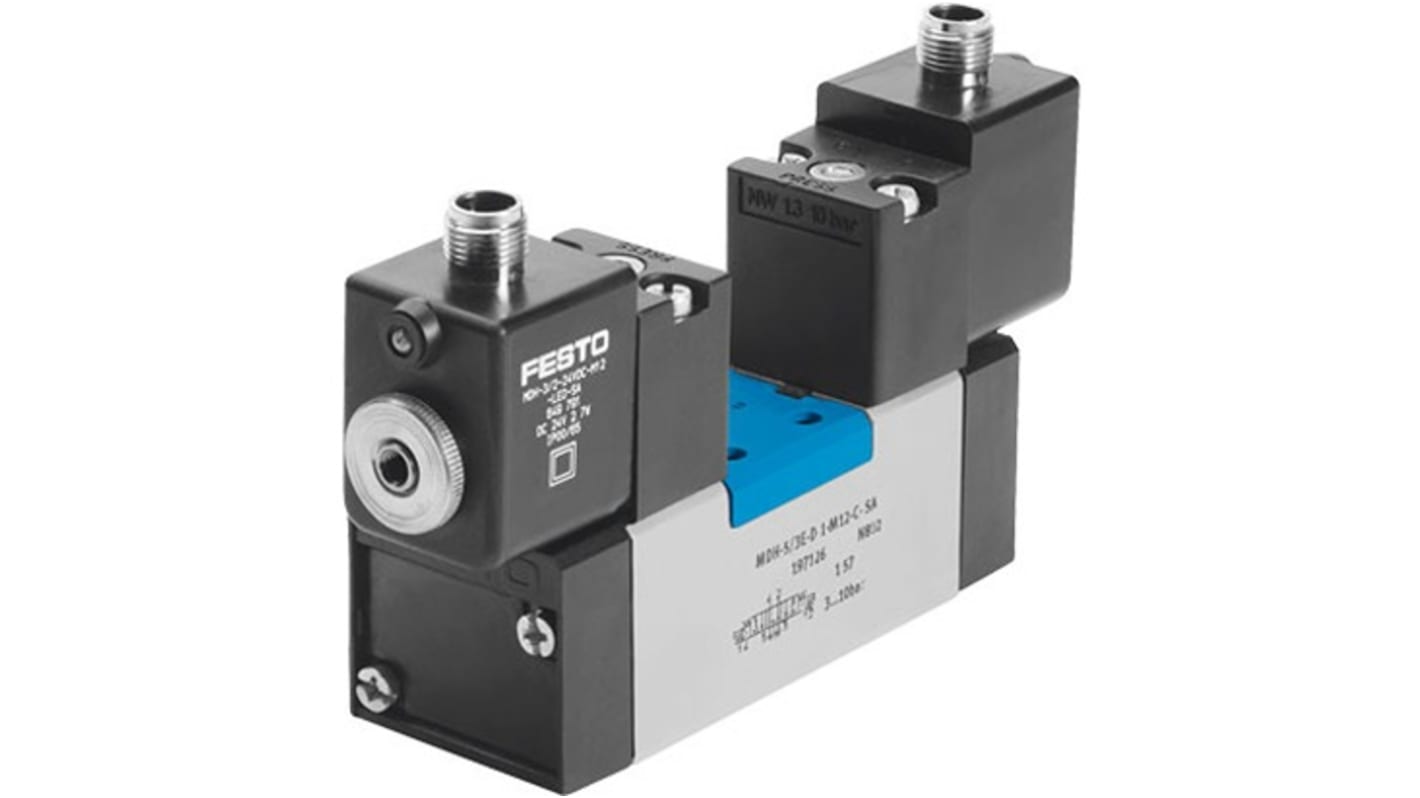

Festo Pneumatic Solenoid/Pilot-Operated Control Valve - Electric MDH Series 540822
- RS Stock No.:
- 281-2368
- Mfr. Part No.:
- MDH-5/3G-D-3-M12D-C
- Brand:
- Festo
Subtotal (1 unit)*
£334.73
(exc. VAT)
£401.68
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 16 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £334.73 |
*price indicative
- RS Stock No.:
- 281-2368
- Mfr. Part No.:
- MDH-5/3G-D-3-M12D-C
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Solenoid/Pilot-Operated Control Valve | |
| Port Size | G 1/2 | |
| Actuation Type | Electric | |
| Series | MDH | |
| Seal Material | Nitrile Rubber (NBR) | |
| Number of Ports | 3 | |
| Maximum Operating Pressure | 10 bar | |
| Body Material | Die Cast Aluminium | |
| Minimum Operating Temperature | -10°C | |
| Mount Pattern | Sub Base Mount | |
| Maximum Flow Rate | 4100L/min | |
| Valve Function | 5/3 Closed | |
| Maximum Operating Temperature | 50°C | |
| Model Number | 540822 | |
| Voltage | 24V dc | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Solenoid/Pilot-Operated Control Valve | ||
Port Size G 1/2 | ||
Actuation Type Electric | ||
Series MDH | ||
Seal Material Nitrile Rubber (NBR) | ||
Number of Ports 3 | ||
Maximum Operating Pressure 10 bar | ||
Body Material Die Cast Aluminium | ||
Minimum Operating Temperature -10°C | ||
Mount Pattern Sub Base Mount | ||
Maximum Flow Rate 4100L/min | ||
Valve Function 5/3 Closed | ||
Maximum Operating Temperature 50°C | ||
Model Number 540822 | ||
Voltage 24V dc | ||
- COO (Country of Origin):
- HU
The Festo solenoid valve conforms to ISO 5599-1. Its housing is made from die-cast aluminium.
RoHS compliant
Robust metal housing
