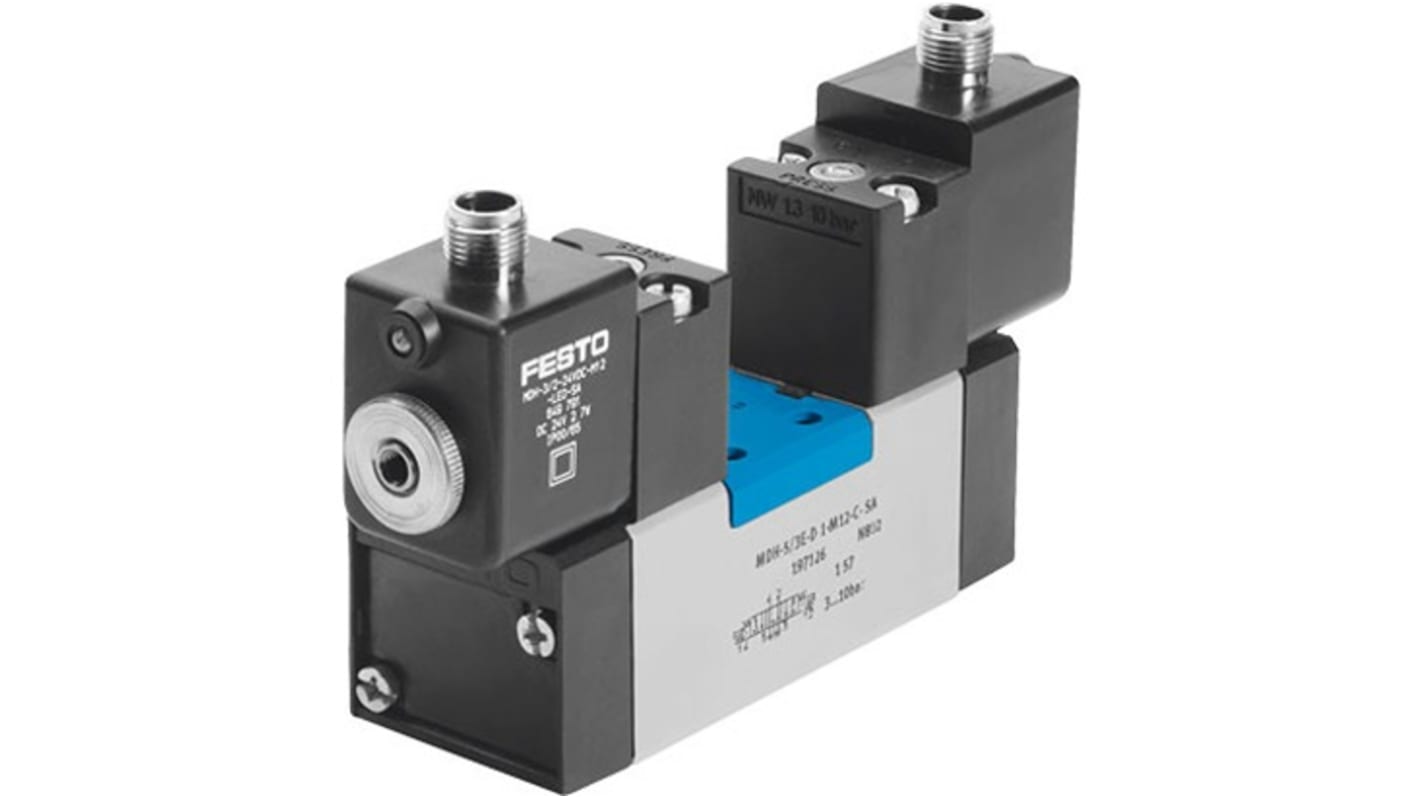

Festo Pneumatic Solenoid/Pilot-Operated Control Valve - Electric G 540815
- RS Stock No.:
- 281-2367
- Mfr. Part No.:
- MDH-5/3G-D-2-M12D-C
- Brand:
- Festo
Subtotal (1 unit)*
£259.80
(exc. VAT)
£311.76
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £259.80 |
*price indicative
- RS Stock No.:
- 281-2367
- Mfr. Part No.:
- MDH-5/3G-D-2-M12D-C
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Solenoid/Pilot-Operated Control Valve | |
| Connection Thread Standard | G | |
| Actuation Type | Electric | |
| Maximum Operating Pressure | 10 bar | |
| Valve Function | 5/3 Closed | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 50°C | |
| Width | 54mm | |
| Standards/Approvals | RoHS, ISO, c UL | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Solenoid/Pilot-Operated Control Valve | ||
Connection Thread Standard G | ||
Actuation Type Electric | ||
Maximum Operating Pressure 10 bar | ||
Valve Function 5/3 Closed | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 50°C | ||
Width 54mm | ||
Standards/Approvals RoHS, ISO, c UL | ||
- COO (Country of Origin):
- HU
The Festo Solenoid valve is actuated using electric. This valve has piston gate valve design. The valve features an exhaust air function with a flow control option, allowing for precise control of the exhaust flow. The valve can be mounted in various posi
RoHS compliant
Shock resistance
Vibration resistance
Lubricated operation possible
Conforms to ISO 5599 1 standard
