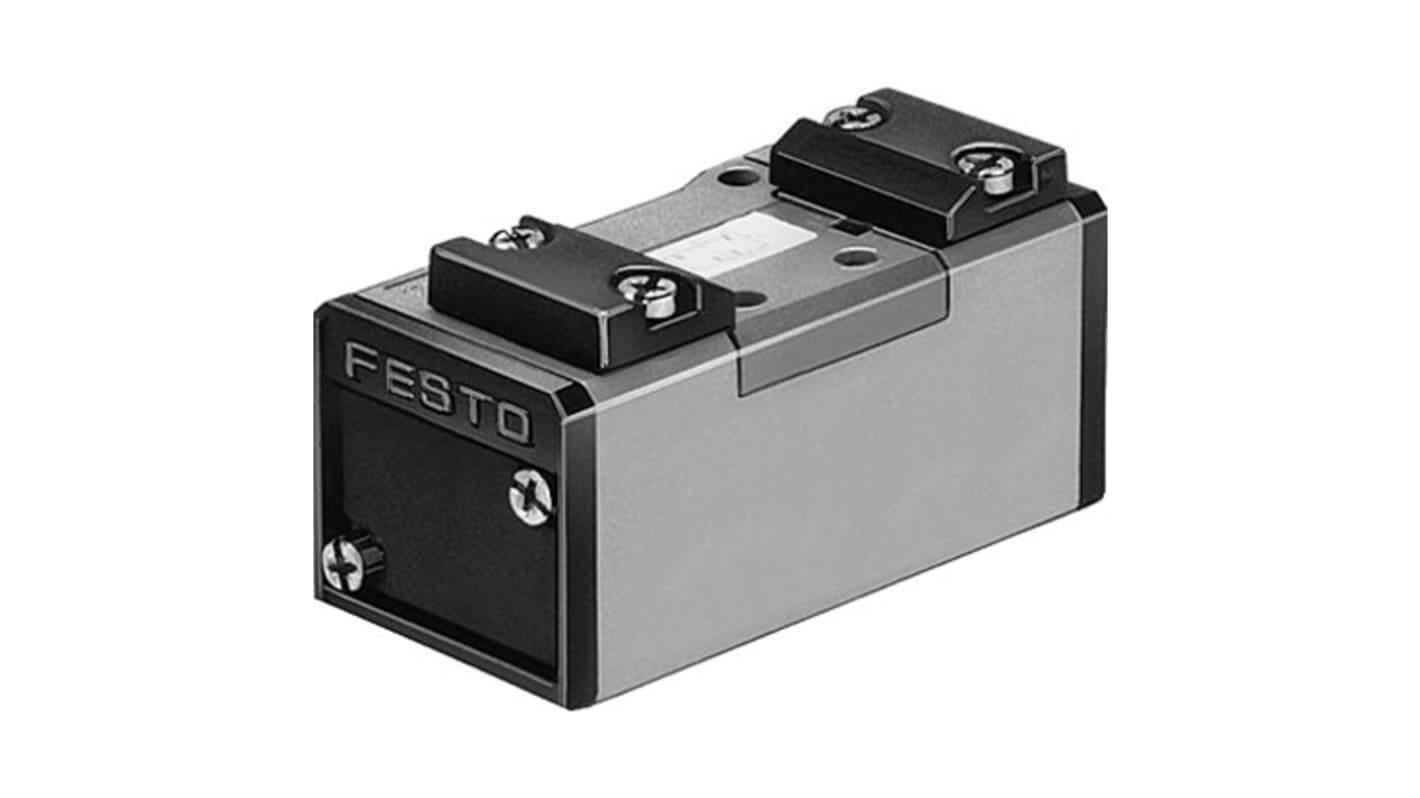

Festo Pneumatic Solenoid/Pilot-Operated Control Valve - Pneumatic G J-5 Series 536017
- RS Stock No.:
- 281-2305
- Mfr. Part No.:
- JD-5/2-D-2-C-EX
- Brand:
- Festo
Subtotal (1 unit)*
£145.84
(exc. VAT)
£175.01
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £145.84 |
*price indicative
- RS Stock No.:
- 281-2305
- Mfr. Part No.:
- JD-5/2-D-2-C-EX
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Solenoid/Pilot-Operated Control Valve | |
| Connection Thread Standard | G | |
| Actuation Type | Pneumatic | |
| Seal Material | Nitrile Rubber (NBR) | |
| Series | J-5 | |
| Number of Ports | 5 | |
| Body Material | Die Cast Aluminium | |
| Maximum Flow Rate | 2300L/min | |
| Minimum Operating Temperature | -10°C | |
| Maximum Pilot Pressure | 16bar | |
| Minimum Pilot Pressure | 2bar | |
| Maximum Operating Temperature | 60°C | |
| Width | 54mm | |
| Number of Positions | 2 | |
| Model Number | 536017 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Solenoid/Pilot-Operated Control Valve | ||
Connection Thread Standard G | ||
Actuation Type Pneumatic | ||
Seal Material Nitrile Rubber (NBR) | ||
Series J-5 | ||
Number of Ports 5 | ||
Body Material Die Cast Aluminium | ||
Maximum Flow Rate 2300L/min | ||
Minimum Operating Temperature -10°C | ||
Maximum Pilot Pressure 16bar | ||
Minimum Pilot Pressure 2bar | ||
Maximum Operating Temperature 60°C | ||
Width 54mm | ||
Number of Positions 2 | ||
Model Number 536017 | ||
- COO (Country of Origin):
- HU
The Festo Pneumatic valve is actuated using pneumatic pressure, making it suitable for pneumatic control systems. This valve has piston gate valve design. The valve features an exhaust air function with a flow control option, allowing for precise control
RoHS compliant
Shock resistance
Vibration resistance
Lubricated operation possible
Conforms to ISO 5599 1 standard
