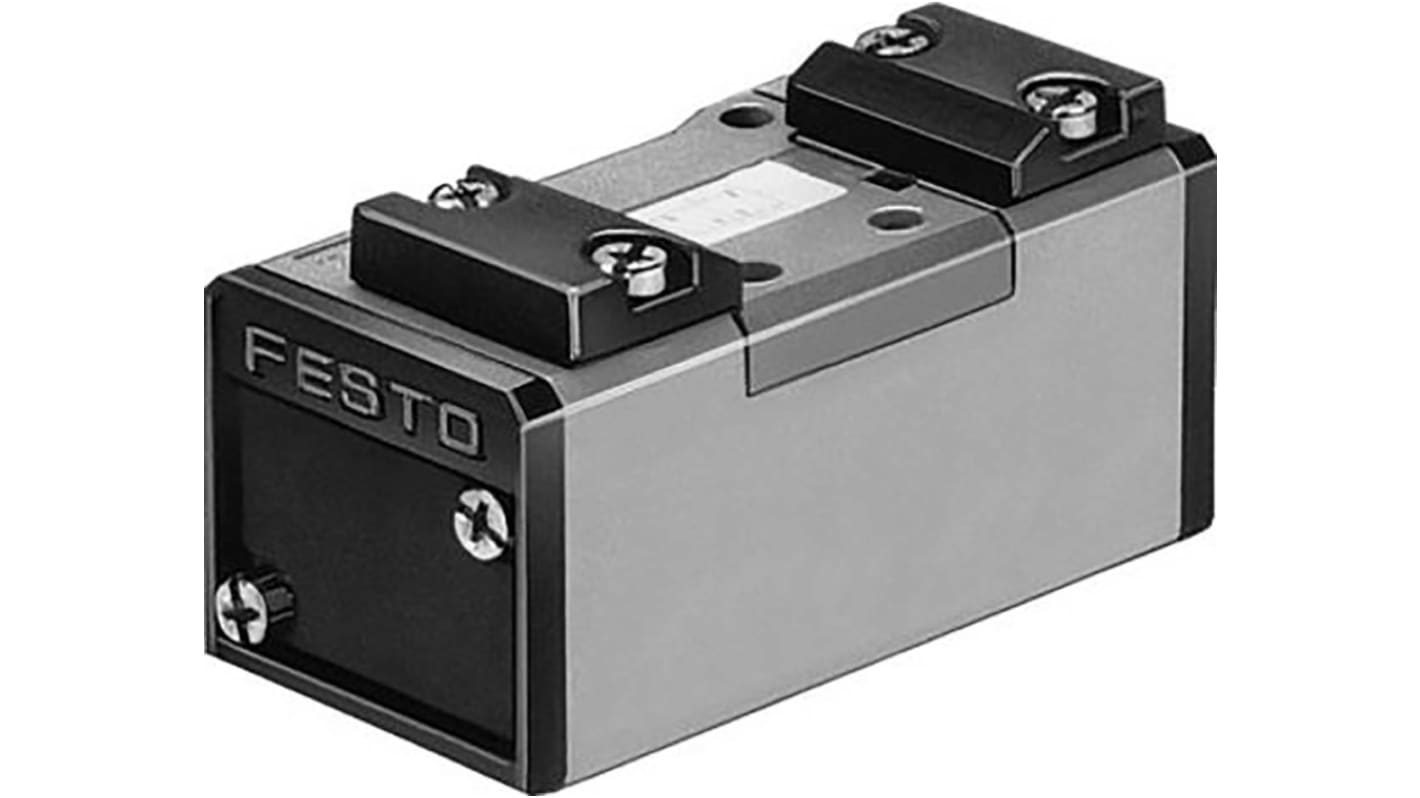

Festo Pneumatic Solenoid/Pilot-Operated Control Valve - 5/2 Bistable Dominant Pneumatic Metric JD Series 24 V

View all Pneumatic Solenoid Valves

Subtotal (1 unit)*

£144.10

(exc. VAT)

£172.92

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 15 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£144.10

*price indicative

RS Stock No.:
203-7255
Mfr. Part No.:
JD-5/2-D-2-C
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Product Type

Pneumatic Solenoid/Pilot-Operated Control Valve

Port Size

11.5 mm

Connection Thread Standard

Metric

Actuation Type

Pneumatic

Series

JD

Voltage

24 V

Solenoid Type

Single

Seal Material

Nitrile Rubber (NBR)

Mount Type

Through Hole

Number of Ports

5

Body Material

Die Cast Aluminium

Maximum Operating Pressure

16 bar

Port Gender

Female

Minimum Pilot Pressure

2bar

Maximum Pilot Pressure

16bar

Minimum Operating Temperature

-10°C

Valve Function

5/2 Bistable Dominant

Maximum Flow Rate

2300L/min

Maximum Operating Temperature

60°C

Hazardous Area Certification

No

Standards/Approvals

ISO 5599-1, UL (OL)

Width

54 mm

Number of Positions

2

Electrical Connection Type

Plug Socket

COO (Country of Origin):
HU
The Festo's pneumatic valve used piston slide concept and ideal for use in pneumatic application with highly durable valve are available with 5/2 biastable-dominant function which has 54mm of width. Its used operating pressure up to -0.9 - 16 bar with standard nominal flow rate is 2,300 l/min

Ambient temperature -10 to 60 °C

Product weight 550 g
