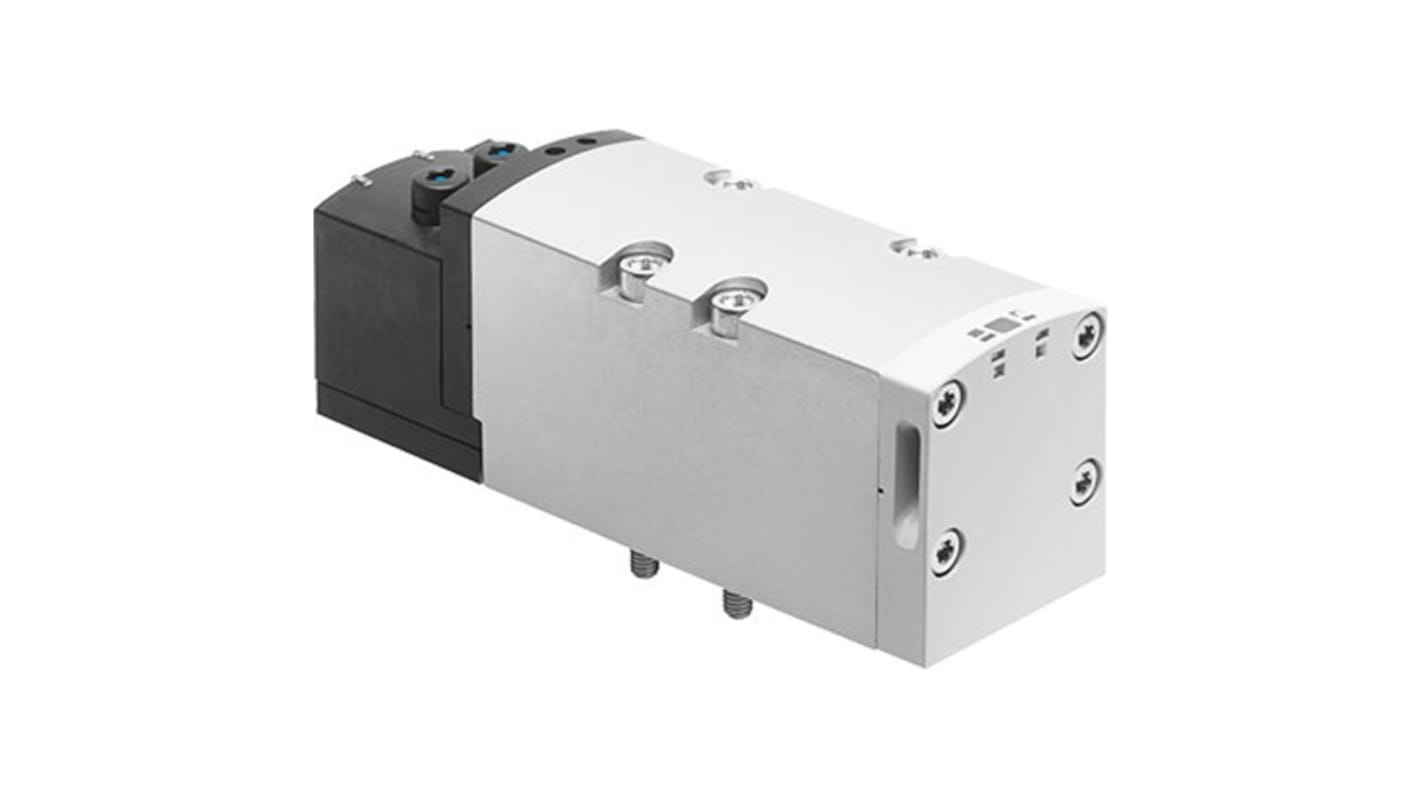

Festo Pneumatic Solenoid Valve - Open, Monostable, Closed, 2 x 3/2-Way Electric ISO 5599-2 VSVA-B-T32H-AZD-D2-1T1L
- RS Stock No.:
- 278-7380
- Mfr. Part No.:
- VSVA-B-T32H-AZD-D2-1T1L
- Brand:
- Festo
Subtotal (1 unit)*
£219.66
(exc. VAT)
£263.59
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £219.66 |
*price indicative
- RS Stock No.:
- 278-7380
- Mfr. Part No.:
- VSVA-B-T32H-AZD-D2-1T1L
- Brand:
- Festo
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Solenoid Valve | |
| Port Size | 1/2 in G | |
| Port Type | Sub Base | |
| Connection Thread Standard | ISO 5599-2 | |
| Actuation Type | Electric | |
| Solenoid Type | Single | |
| Voltage | 24V | |
| Series | VSVA-B-T32H-AZD-D2-1T1L | |
| Seal Material | Nitrile Rubber (NBR), Halogenated Nitrile Rubber, Fluorelastomer | |
| Mount Type | Base | |
| Number of Ports | 2 | |
| Body Material | Die Cast Aluminium, Polyamide | |
| Maximum Operating Pressure | 1 Mpa | |
| Maximum Pilot Pressure | 1MPa | |
| Valve Function | Open, Monostable, Closed, 2 x 3/2-Way | |
| Maximum Flow Rate | 2400L/min | |
| Minimum Operating Temperature | -5°C | |
| Minimum Pilot Pressure | 0.3MPa | |
| Maximum Operating Temperature | 50°C | |
| Solenoid Power Consumption | 4.6W | |
| Hazardous Area Certification | CE, cULus, KC | |
| Width | 52mm | |
| Standards/Approvals | ISO 5599-2, EU EMC | |
| Electrical Connection Type | Plug | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Solenoid Valve | ||
Port Size 1/2 in G | ||
Port Type Sub Base | ||
Connection Thread Standard ISO 5599-2 | ||
Actuation Type Electric | ||
Solenoid Type Single | ||
Voltage 24V | ||
Series VSVA-B-T32H-AZD-D2-1T1L | ||
Seal Material Nitrile Rubber (NBR), Halogenated Nitrile Rubber, Fluorelastomer | ||
Mount Type Base | ||
Number of Ports 2 | ||
Body Material Die Cast Aluminium, Polyamide | ||
Maximum Operating Pressure 1 Mpa | ||
Maximum Pilot Pressure 1MPa | ||
Valve Function Open, Monostable, Closed, 2 x 3/2-Way | ||
Maximum Flow Rate 2400L/min | ||
Minimum Operating Temperature -5°C | ||
Minimum Pilot Pressure 0.3MPa | ||
Maximum Operating Temperature 50°C | ||
Solenoid Power Consumption 4.6W | ||
Hazardous Area Certification CE, cULus, KC | ||
Width 52mm | ||
Standards/Approvals ISO 5599-2, EU EMC | ||
Electrical Connection Type Plug | ||
- COO (Country of Origin):
- DE
