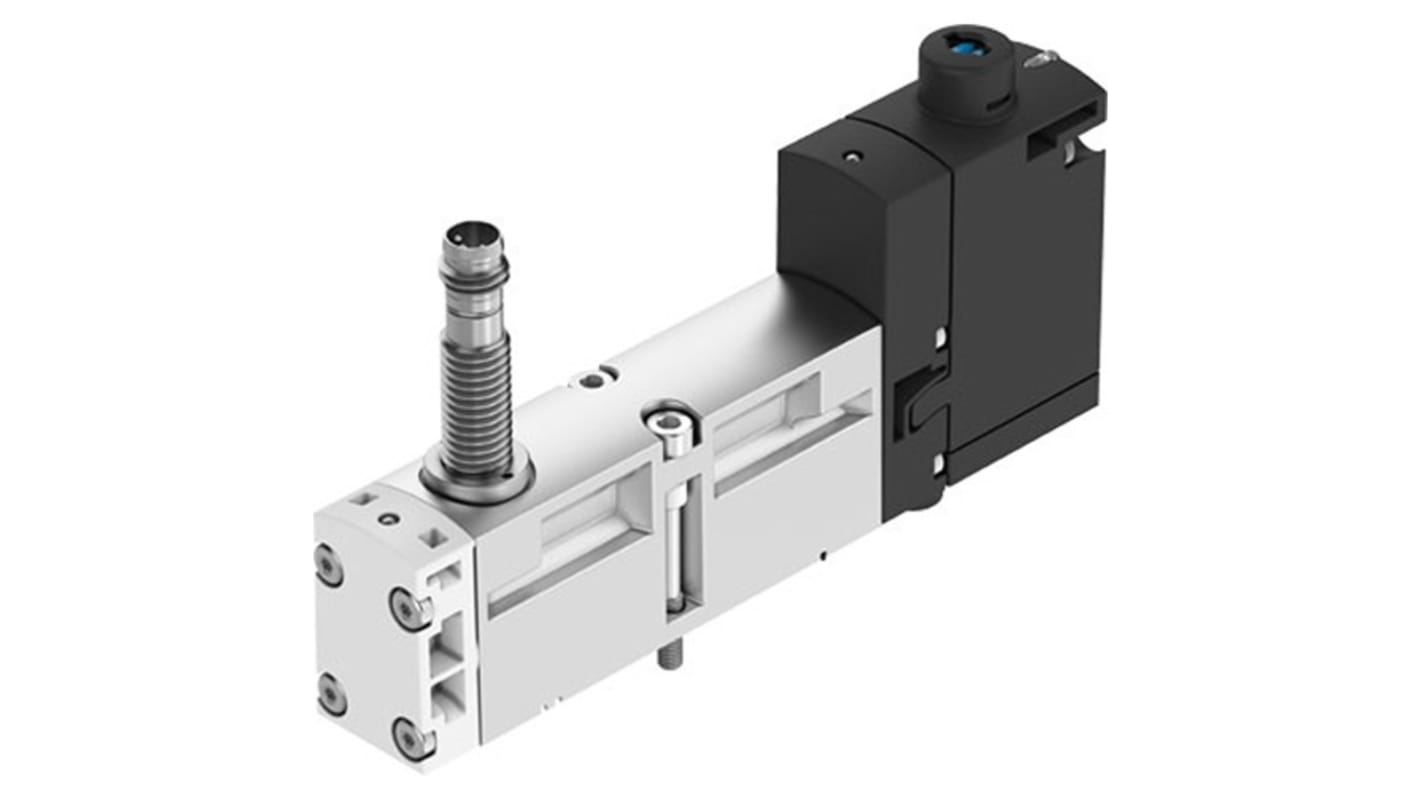

Festo Pneumatic Solenoid Valve - 5/2 Monostable Electric ISO 15407-2 VSVA Series 24V
- RS Stock No.:
- 278-7346
- Mfr. Part No.:
- VSVA-B-M52-MZD-A2-1T1L-ANP
- Brand:
- Festo
Subtotal (1 unit)*
£183.86
(exc. VAT)
£220.63
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £183.86 |
*price indicative
- RS Stock No.:
- 278-7346
- Mfr. Part No.:
- VSVA-B-M52-MZD-A2-1T1L-ANP
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Solenoid Valve | |
| Port Type | Pneumatic | |
| Port Size | 18 mm | |
| Connection Thread Standard | ISO 15407-2 | |
| Actuation Type | Electric | |
| Solenoid Type | Single | |
| Series | VSVA | |
| Seal Material | Fluorelastomer, Nitrile Rubber (NBR) | |
| Voltage | 24V | |
| Mount Type | Base | |
| Number of Ports | 1 | |
| Body Material | Polyamide, Die Cast Aluminium | |
| Maximum Operating Pressure | 1 Mpa | |
| Minimum Operating Temperature | -5°C | |
| Maximum Pilot Pressure | 1MPa | |
| Valve Function | 5/2 Monostable | |
| Minimum Pilot Pressure | 0.3MPa | |
| Solenoid Power Consumption | 1.6W | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | EN 60068-2-27, EN 60068-2-6, FN 942017-4, FN 942017-5, ISO 15407-2, ISO 8573-1:2010 | |
| Hazardous Area Certification | No | |
| Width | 18mm | |
| Electrical Connection Type | Plug | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Solenoid Valve | ||
Port Type Pneumatic | ||
Port Size 18 mm | ||
Connection Thread Standard ISO 15407-2 | ||
Actuation Type Electric | ||
Solenoid Type Single | ||
Series VSVA | ||
Seal Material Fluorelastomer, Nitrile Rubber (NBR) | ||
Voltage 24V | ||
Mount Type Base | ||
Number of Ports 1 | ||
Body Material Polyamide, Die Cast Aluminium | ||
Maximum Operating Pressure 1 Mpa | ||
Minimum Operating Temperature -5°C | ||
Maximum Pilot Pressure 1MPa | ||
Valve Function 5/2 Monostable | ||
Minimum Pilot Pressure 0.3MPa | ||
Solenoid Power Consumption 1.6W | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals EN 60068-2-27, EN 60068-2-6, FN 942017-4, FN 942017-5, ISO 15407-2, ISO 8573-1:2010 | ||
Hazardous Area Certification No | ||
Width 18mm | ||
Electrical Connection Type Plug | ||
- COO (Country of Origin):
- DE
This Festo solenoid valve comes with electric type of actuation and the operating pressure ranging from -0.9 to 10 bar. It has construction width of 18 mm.
Degree of protection IP65 and NEMA 4
UL Recognized
LED signal status display
