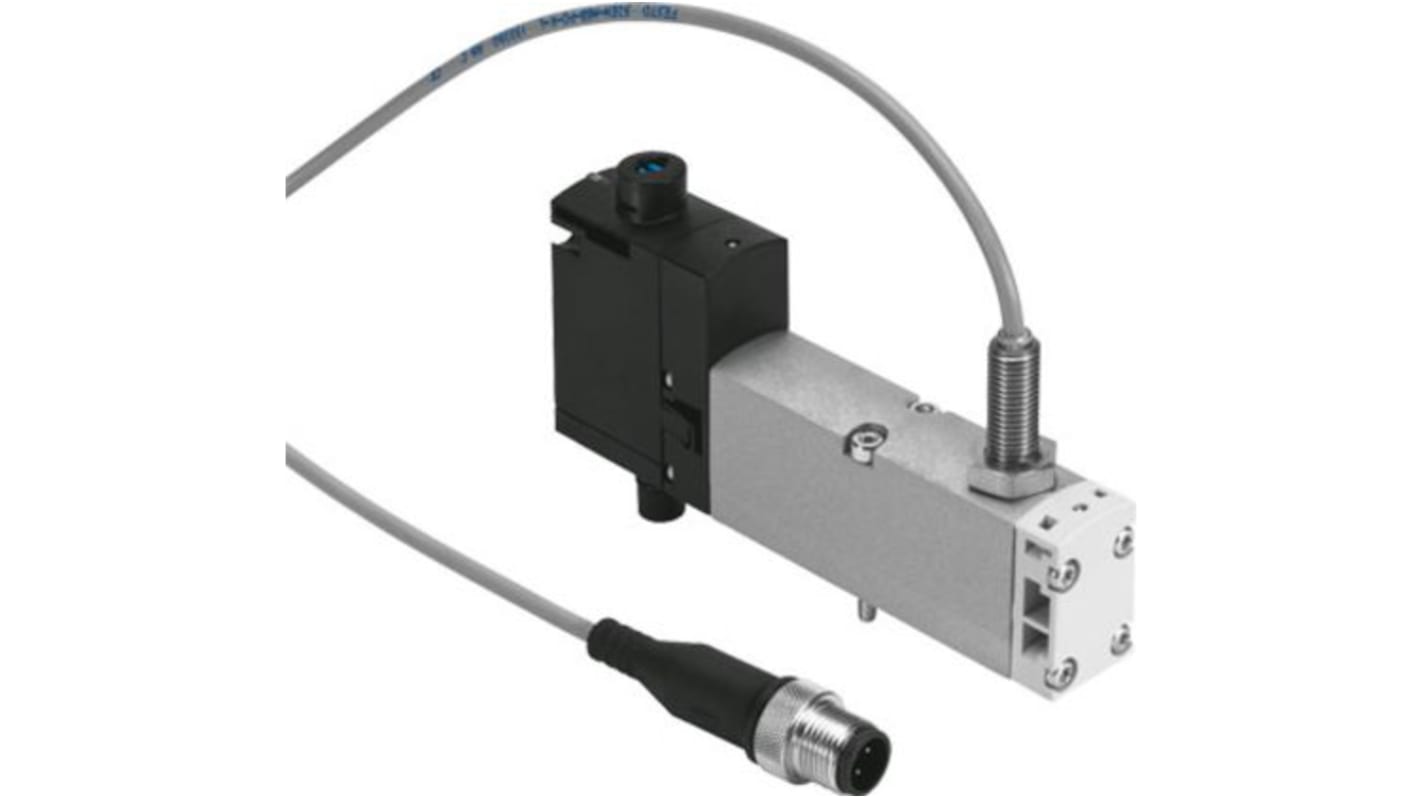

Festo Solenoid Valve - 5/2 Monostable Electric Metric VSVA Series 24V
- RS Stock No.:
- 203-7579
- Mfr. Part No.:
- VSVA-B-M52-MZD-A2-1T1L-APX-0.5
- Brand:
- Festo
Subtotal (1 unit)*
£180.91
(exc. VAT)
£217.09
(inc. VAT)
FREE delivery for orders over £60.00
- Ready to ship from 12 June 2026
Units | Per unit |
|---|---|
| 1 + | £180.91 |
*price indicative
- RS Stock No.:
- 203-7579
- Mfr. Part No.:
- VSVA-B-M52-MZD-A2-1T1L-APX-0.5
- Brand:
- Festo
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Solenoid Valve | |
| Port Type | Pneumatic, Manifold | |
| Port Size | 18 mm | |
| Connection Thread Standard | Metric | |
| Actuation Type | Electric | |
| Series | VSVA | |
| Voltage | 24V | |
| Seal Material | Nitrile Rubber (NBR), Fluorelastomer | |
| Solenoid Type | Single | |
| Mount Type | Base | |
| Number of Ports | 5 | |
| Body Material | Polyamide, Die Cast Aluminium | |
| Maximum Operating Pressure | 10 bar | |
| Maximum Pilot Pressure | 10bar | |
| Minimum Operating Temperature | -5°C | |
| Valve Function | 5/2 Monostable | |
| Maximum Flow Rate | 750L/min | |
| Port Gender | Male | |
| Minimum Pilot Pressure | 3bar | |
| Maximum Operating Temperature | 50°C | |
| Solenoid Power Consumption | 1.6W | |
| Length | 140mm | |
| Width | 18mm | |
| Standards/Approvals | C-Tick CSA (OL) c UL us (OL) KC KC-EMV CE to EU for EMC | |
| Hazardous Area Certification | KC, cULus, C-Tick, CSA | |
| Height | 58.3mm | |
| Number of Positions | 2 | |
| Electrical Connection Type | Plug | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Solenoid Valve | ||
Port Type Pneumatic, Manifold | ||
Port Size 18 mm | ||
Connection Thread Standard Metric | ||
Actuation Type Electric | ||
Series VSVA | ||
Voltage 24V | ||
Seal Material Nitrile Rubber (NBR), Fluorelastomer | ||
Solenoid Type Single | ||
Mount Type Base | ||
Number of Ports 5 | ||
Body Material Polyamide, Die Cast Aluminium | ||
Maximum Operating Pressure 10 bar | ||
Maximum Pilot Pressure 10bar | ||
Minimum Operating Temperature -5°C | ||
Valve Function 5/2 Monostable | ||
Maximum Flow Rate 750L/min | ||
Port Gender Male | ||
Minimum Pilot Pressure 3bar | ||
Maximum Operating Temperature 50°C | ||
Solenoid Power Consumption 1.6W | ||
Length 140mm | ||
Width 18mm | ||
Standards/Approvals C-Tick CSA (OL) c UL us (OL) KC KC-EMV CE to EU for EMC | ||
Hazardous Area Certification KC, cULus, C-Tick, CSA | ||
Height 58.3mm | ||
Number of Positions 2 | ||
Electrical Connection Type Plug | ||
- COO (Country of Origin):
- DE
