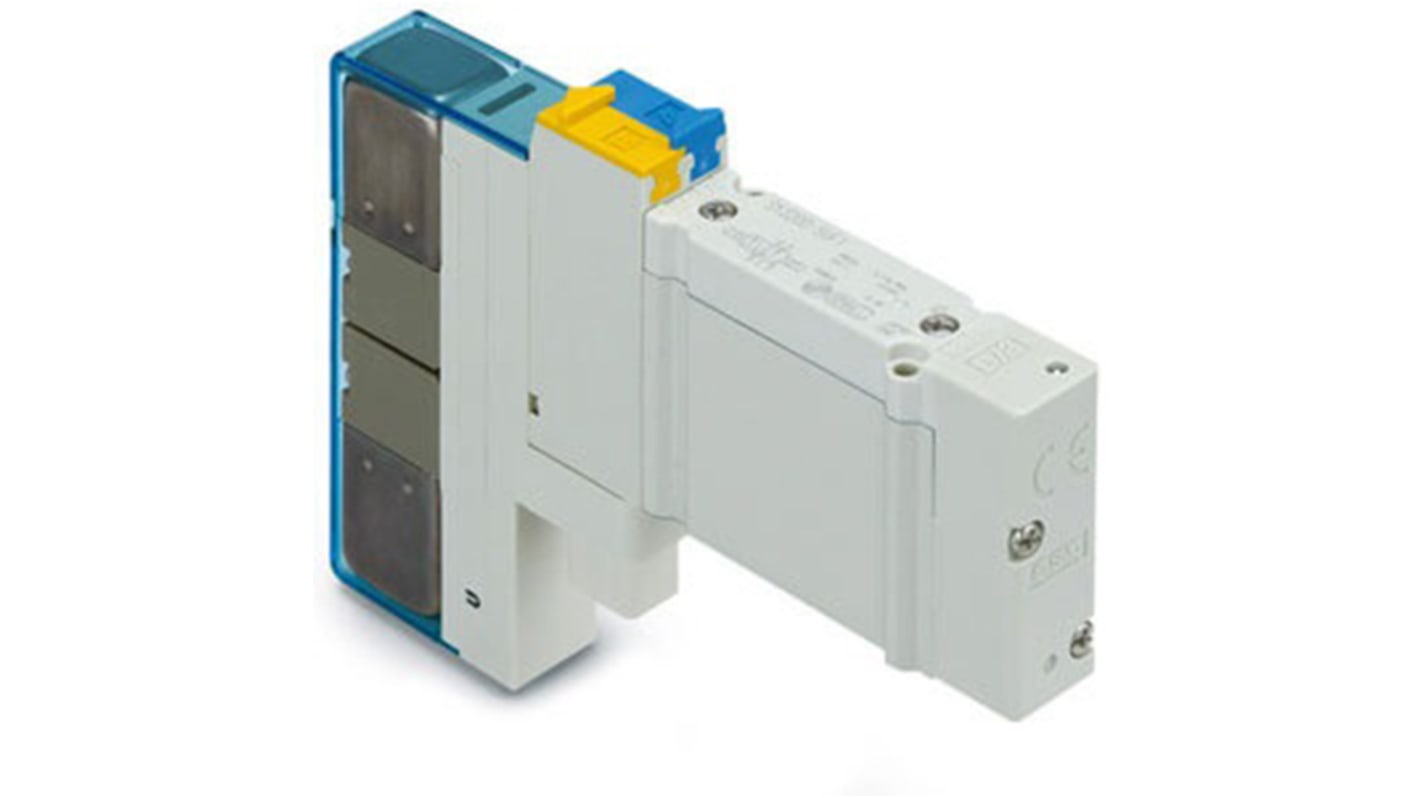

SMC Pneumatic Solenoid Valve - Solenoid SY3000 Series 24V
- RS Stock No.:
- 237-3754
- Mfr. Part No.:
- SY3101K-5U1-NA
- Brand:
- SMC
Subtotal (1 unit)*
£67.21
(exc. VAT)
£80.65
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £67.21 |
*price indicative
- RS Stock No.:
- 237-3754
- Mfr. Part No.:
- SY3101K-5U1-NA
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Solenoid Valve | |
| Port Size | 1/8 in | |
| Actuation Type | Solenoid | |
| Series | SY3000 | |
| Voltage | 24V | |
| Seal Material | Rubber | |
| Mount Type | Base | |
| Number of Ports | 5 | |
| Maximum Operating Pressure | 7 bar | |
| Body Material | Die Cast Zinc | |
| Port Gender | Female | |
| Maximum Pilot Pressure | 7bar | |
| Minimum Operating Temperature | -10°C | |
| Minimum Pilot Pressure | 2.5bar | |
| Solenoid Power Consumption | 0.35W | |
| Maximum Operating Temperature | 50°C | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | RoHS | |
| Width | 10mm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Solenoid Valve | ||
Port Size 1/8 in | ||
Actuation Type Solenoid | ||
Series SY3000 | ||
Voltage 24V | ||
Seal Material Rubber | ||
Mount Type Base | ||
Number of Ports 5 | ||
Maximum Operating Pressure 7 bar | ||
Body Material Die Cast Zinc | ||
Port Gender Female | ||
Maximum Pilot Pressure 7bar | ||
Minimum Operating Temperature -10°C | ||
Minimum Pilot Pressure 2.5bar | ||
Solenoid Power Consumption 0.35W | ||
Maximum Operating Temperature 50°C | ||
Hazardous Area Certification NO | ||
Standards/Approvals RoHS | ||
Width 10mm | ||
- COO (Country of Origin):
- JP
The SMC SY3000 series are 5 port solenoid valve has supply voltage of 24 V dc. It offers high flow with low power consumption in a compact design. It is available in body ported or base mounted styles and can be used individually or manifold mounted. It has pilot exhaust and dust proof enclosure.
Energy saving benefit
Improved functionality
With slide locking manual override
Improved operability
LED indicator light
Reduced power consumption
