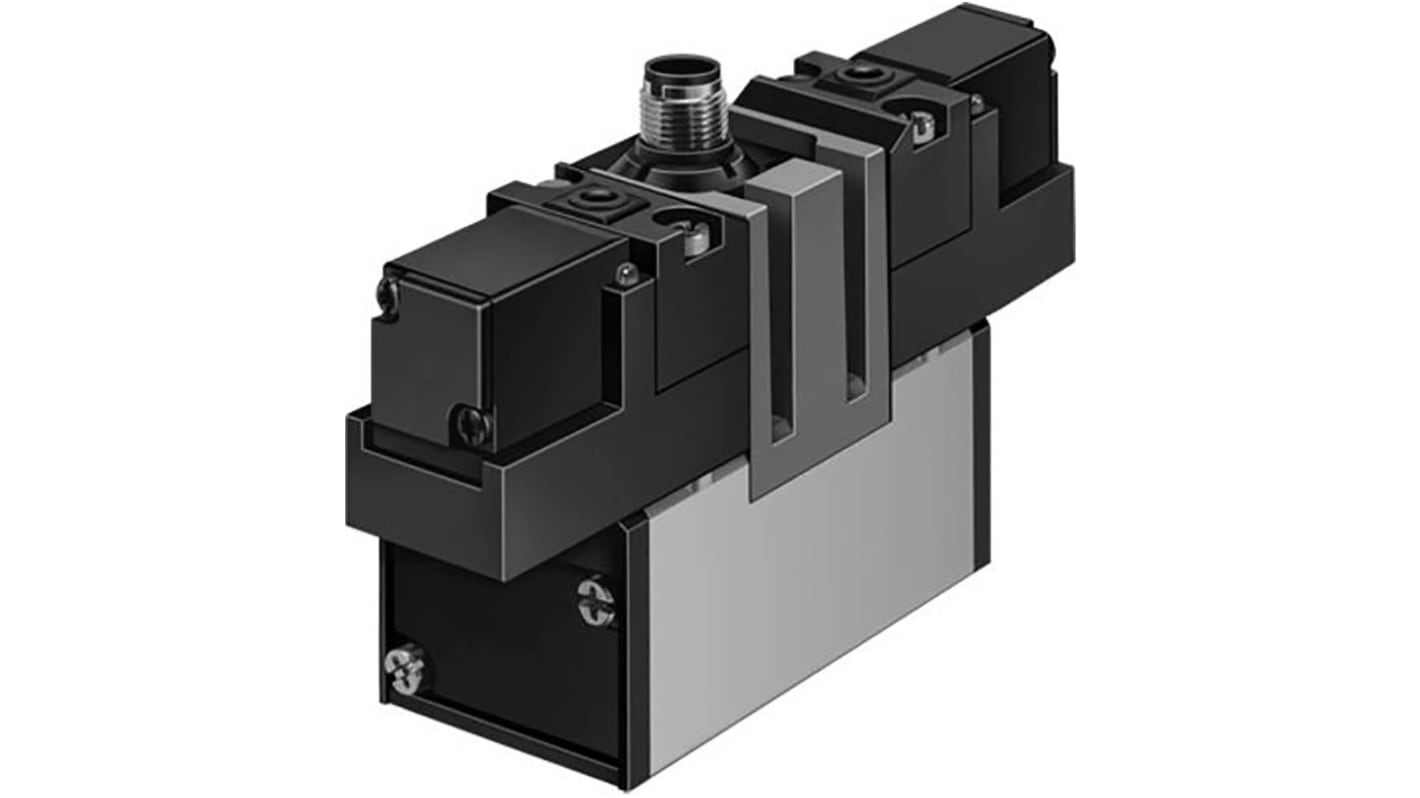

Festo Pneumatic Solenoid/Pilot-Operated Control Valve - Electric MEBH-5/3B-D-3-ZSR-C Series 184513
- RS Stock No.:
- 203-7340
- Mfr. Part No.:
- MEBH-5/3B-D-3-ZSR-C
- Brand:
- Festo
Subtotal (1 unit)*
£382.96
(exc. VAT)
£459.55
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £382.96 |
*price indicative
- RS Stock No.:
- 203-7340
- Mfr. Part No.:
- MEBH-5/3B-D-3-ZSR-C
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Solenoid/Pilot-Operated Control Valve | |
| Port Size | Size 3 | |
| Port Type | Pneumatic | |
| Actuation Type | Electric | |
| Seal Material | Nitrile Rubber (NBR) | |
| Series | MEBH-5/3B-D-3-ZSR-C | |
| Mount Type | Through Hole | |
| Number of Ports | 5 | |
| Body Material | Die Cast Aluminium | |
| Maximum Operating Pressure | 10 bar | |
| Maximum Flow Rate | 4000L/min | |
| Valve Function | 5/3 Pressurised | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Width | 65mm | |
| Standards/Approvals | ISO 5599-1 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Solenoid/Pilot-Operated Control Valve | ||
Port Size Size 3 | ||
Port Type Pneumatic | ||
Actuation Type Electric | ||
Seal Material Nitrile Rubber (NBR) | ||
Series MEBH-5/3B-D-3-ZSR-C | ||
Mount Type Through Hole | ||
Number of Ports 5 | ||
Body Material Die Cast Aluminium | ||
Maximum Operating Pressure 10 bar | ||
Maximum Flow Rate 4000L/min | ||
Valve Function 5/3 Pressurised | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Width 65mm | ||
Standards/Approvals ISO 5599-1 | ||
- COO (Country of Origin):
- HU
The Festo's solenoid valve used with central plug connector which has piston slide of structure and its width size is 65 mm which used operating pressure up to 2 - 10 bar. Its standard nominal flow rate is 4,500 l/min and assembled in any position.
Ambient temperature -10 to 50 °C
Protection class IP65
