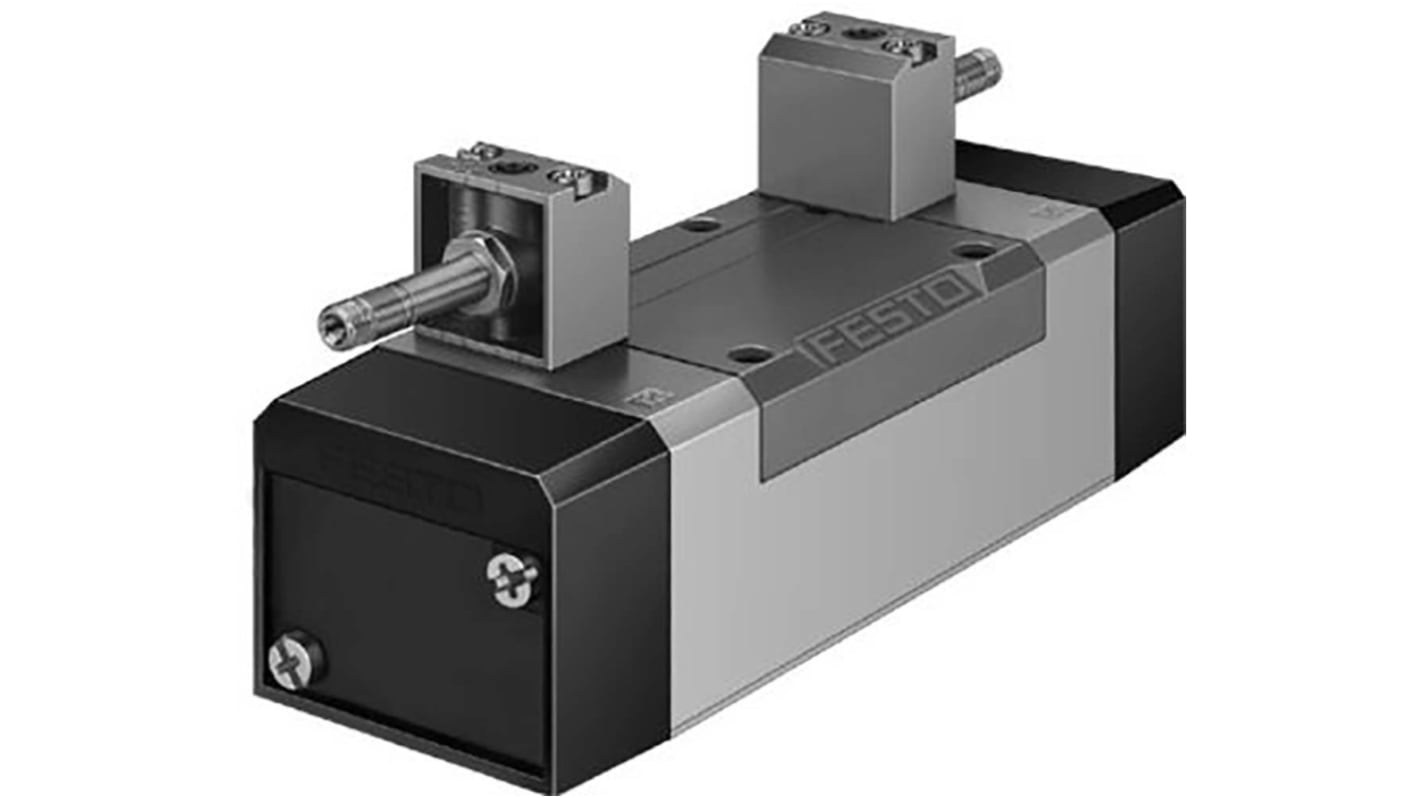

Festo Pneumatic Solenoid/Pilot-Operated Control Valve - Electric MFH Series 151875
- RS Stock No.:
- 203-7247
- Mfr. Part No.:
- MFH-5/3B-D-3-C
- Brand:
- Festo
Subtotal (1 unit)*
£346.77
(exc. VAT)
£416.12
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £346.77 |
*price indicative
- RS Stock No.:
- 203-7247
- Mfr. Part No.:
- MFH-5/3B-D-3-C
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Solenoid/Pilot-Operated Control Valve | |
| Port Size | 14.5 mm | |
| Actuation Type | Electric | |
| Series | MFH | |
| Seal Material | Nitrile Rubber (NBR) | |
| Mount Type | Base | |
| Number of Ports | 5 | |
| Maximum Operating Pressure | 10 bar | |
| Body Material | Die Cast Aluminium | |
| Minimum Operating Temperature | -10°C | |
| Valve Function | 5/3 Pressurised | |
| Maximum Flow Rate | 4000L/min | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | ISO 5599-1, RoHS | |
| Width | 65mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Solenoid/Pilot-Operated Control Valve | ||
Port Size 14.5 mm | ||
Actuation Type Electric | ||
Series MFH | ||
Seal Material Nitrile Rubber (NBR) | ||
Mount Type Base | ||
Number of Ports 5 | ||
Maximum Operating Pressure 10 bar | ||
Body Material Die Cast Aluminium | ||
Minimum Operating Temperature -10°C | ||
Valve Function 5/3 Pressurised | ||
Maximum Flow Rate 4000L/min | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals ISO 5599-1, RoHS | ||
Width 65mm | ||
- COO (Country of Origin):
- HU
The Festo's solenoid valve with manual override without solenoid coil or socket and solenoid coil and socket should be ordered separately. It has piston slide of structure with highly durable valve are available with 5/3 pressurised . Its width size is 65 mm and used operating pressure up to 3 -10 bar with standard nominal flow rate is 4,000 l/min
Ambient temperature -5 to 40 °C
Protection class IP65
