Festo 3/2 Closed, Monostable Solenoid Valve - Electrical G 1/4 VUVS Series, 575477
- RS Stock No.:
- 202-1500
- Mfr. Part No.:
- VUVS-L25-M32C-MD-G14-F8-1C1
- Brand:
- Festo
Subtotal (1 unit)*
£80.02
(exc. VAT)
£96.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 6 unit(s) shipping from 22 October 2025
- Plus 19 unit(s) shipping from 22 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £80.02 |
*price indicative
- RS Stock No.:
- 202-1500
- Mfr. Part No.:
- VUVS-L25-M32C-MD-G14-F8-1C1
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Function | 3/2 Closed, Monostable | |
Connection Port Thread | G 1/4 | |
Actuation Type | Electrical | |
Manufacturer Series | VUVS | |
Mounting Style | Manifold | |
Number of Ports | 3 | |
Body Material | Aluminium Alloy | |
Maximum Flow Rate | 1000L/min | |
Solenoid Power Consumption | 3.3W | |
Minimum Operating Pressure | 2.5bar | |
Number of Positions | 2 | |
Configuration | 2-Position, 3 Port | |
Thread Size | 1/4in | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +60°C | |
Maximum Operating Pressure | 10 bar | |
Thread Standard | G | |
Select all | ||
---|---|---|
Brand Festo | ||
Function 3/2 Closed, Monostable | ||
Connection Port Thread G 1/4 | ||
Actuation Type Electrical | ||
Manufacturer Series VUVS | ||
Mounting Style Manifold | ||
Number of Ports 3 | ||
Body Material Aluminium Alloy | ||
Maximum Flow Rate 1000L/min | ||
Solenoid Power Consumption 3.3W | ||
Minimum Operating Pressure 2.5bar | ||
Number of Positions 2 | ||
Configuration 2-Position, 3 Port | ||
Thread Size 1/4in | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +60°C | ||
Maximum Operating Pressure 10 bar | ||
Thread Standard G | ||
- COO (Country of Origin):
- CN

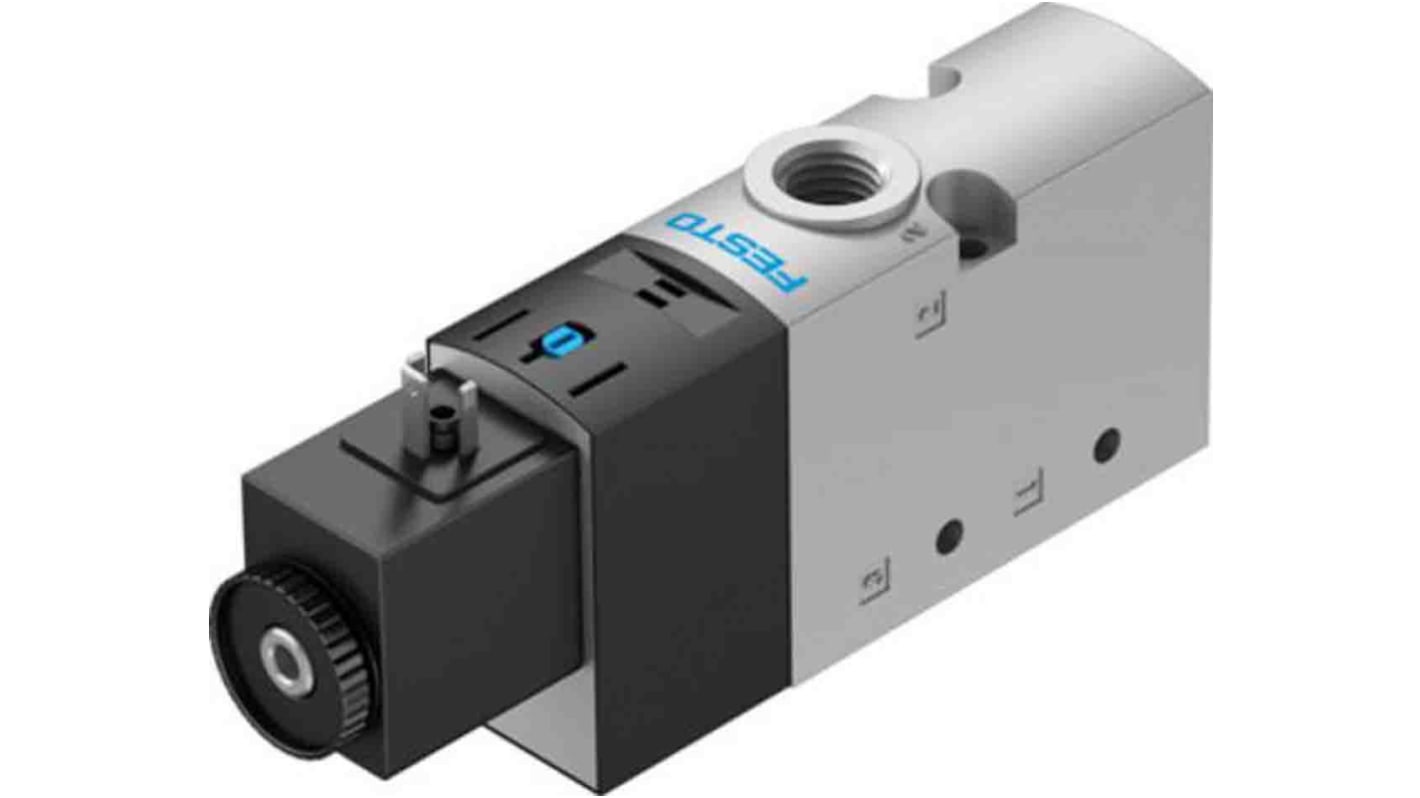

Festo Pneumatic Solenoid Valve, 3/2 Function, G1/4 Thread - VUVS-L25-M32C-MD-G14-F8-1C1
This solenoid valve from Festo gives you close control over the airflow in your pneumatic system. The normally closed configuration stops the movement of air until the valve is energised, minimising the risk of wastage. A standard flow rate of 1,000L/min makes this a powerful option for directing intense air supplies. The unit achieves fast switching times between 11 and 40ms to keep your processes working efficiently.
• Operates at pressures between 2.5 to 10 bar, ensuring high compatibility with common pressurised tasks
• Mounts directly on a manifold block for a hassle-free installation
• Features an IP65 rating to indicate total protection against dust and weak water jets
• Corrosion-resistant die-cast aluminium housing keeps airways clear to maintain efficient air supplies
• Mounts directly on a manifold block for a hassle-free installation
• Features an IP65 rating to indicate total protection against dust and weak water jets
• Corrosion-resistant die-cast aluminium housing keeps airways clear to maintain efficient air supplies
Applications
• Heating, ventilation and air-conditioning systems
• Vacuum-based packing
• Agricultural equipment
• Vacuum-based packing
• Agricultural equipment
What sealing material does this solenoid valve use?
This valve features an NBR seal, which ensures a long-lasting airtight fit.
Does this valve come with a solenoid coil?
Yes. The device comes supplied with a 24V DC solenoid coil, which is ideal for common electrical supplies.
