Festo 5/3 Closed Solenoid Valve - Electrical G 1/4 VUVG Series, 574431
- RS Stock No.:
- 202-1344
- Mfr. Part No.:
- VUVG-L18-P53C-T-G14-1P3
- Brand:
- Festo
Subtotal (1 unit)*
£112.96
(exc. VAT)
£135.55
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £112.96 |
*price indicative
- RS Stock No.:
- 202-1344
- Mfr. Part No.:
- VUVG-L18-P53C-T-G14-1P3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Function | 5/3 Closed | |
Connection Port Thread | G 1/4 | |
Actuation Type | Electrical | |
Manufacturer Series | VUVG | |
Mounting Style | Manifold | |
Number of Ports | 5 | |
Body Material | Wrought Aluminium Alloy | |
Maximum Flow Rate | 1200L/min | |
Minimum Operating Pressure | 3bar | |
Thread Size | 1/4in | |
Maximum Operating Temperature | +60°C | |
Maximum Operating Pressure | 8 bar | |
Number of Positions | 2 | |
Minimum Operating Temperature | -5°C | |
Thread Standard | G | |
Select all | ||
---|---|---|
Brand Festo | ||
Function 5/3 Closed | ||
Connection Port Thread G 1/4 | ||
Actuation Type Electrical | ||
Manufacturer Series VUVG | ||
Mounting Style Manifold | ||
Number of Ports 5 | ||
Body Material Wrought Aluminium Alloy | ||
Maximum Flow Rate 1200L/min | ||
Minimum Operating Pressure 3bar | ||
Thread Size 1/4in | ||
Maximum Operating Temperature +60°C | ||
Maximum Operating Pressure 8 bar | ||
Number of Positions 2 | ||
Minimum Operating Temperature -5°C | ||
Thread Standard G | ||
- COO (Country of Origin):
- DE

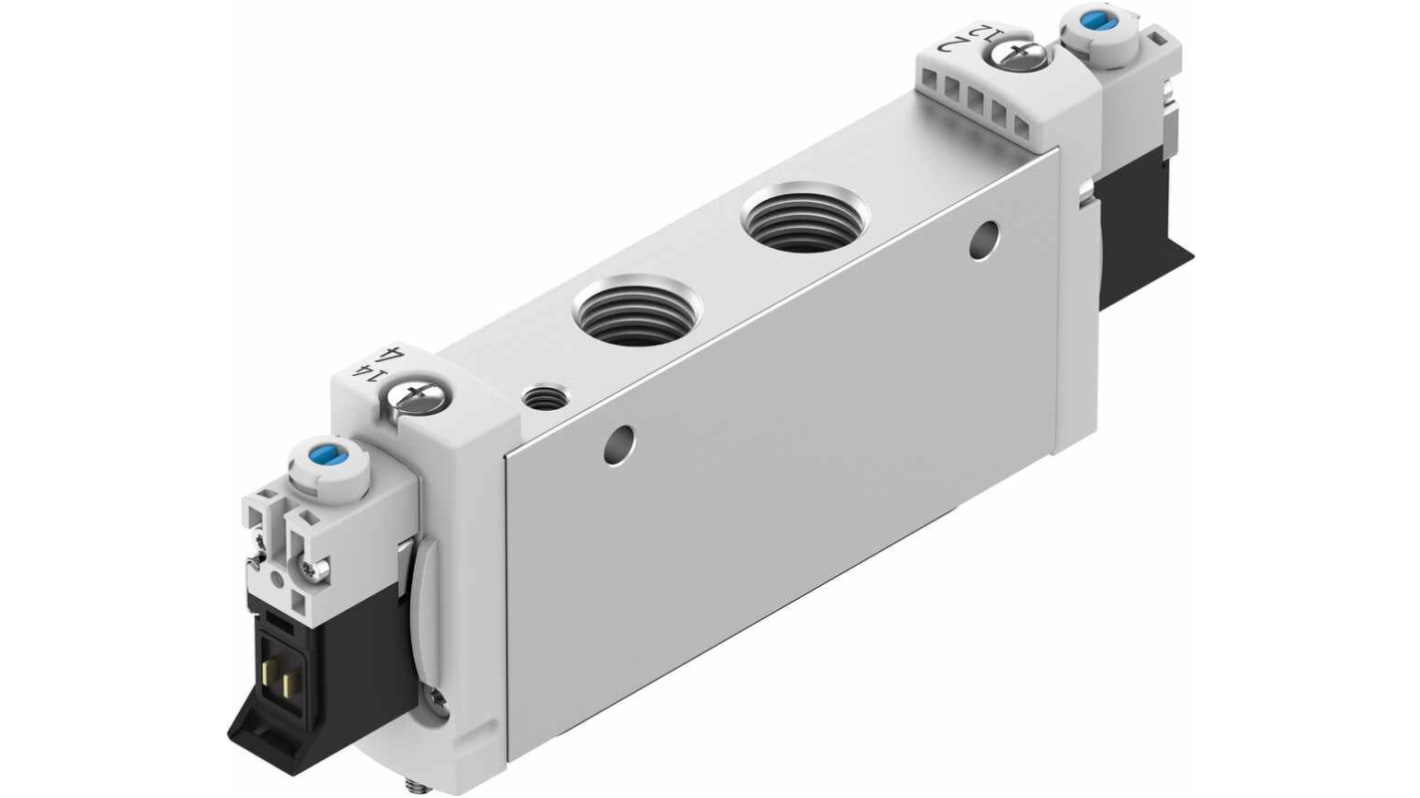

Festo 5/3 Closed Solenoid Valve, Electrical, G 1/4 - VUVG Series - VUVG-L18-P53C-T-G14-1P3
This compact 5/3 closed solenoid valve from Festo controls the flow of compressed air in your pneumatic system. It has a high flow rate of 1000 to 1380 L/min and offers a fast, reliable actuator response. Use this valve in a range of applications with operating pressures ranging from 3 to 8 bar.
A wrought-aluminium alloy housing provides protection from corrosion and an IP (ingress protection) 65 rating means the unit is dust-tight and sealed against low-pressure water jets from any angle. The seals are made from nitrile butadiene rubber (NBR) and hydrogenated NBR (HNBR), so they're hard-wearing, resistant to oil and chemicals and have high tensile strength.
A wrought-aluminium alloy housing provides protection from corrosion and an IP (ingress protection) 65 rating means the unit is dust-tight and sealed against low-pressure water jets from any angle. The seals are made from nitrile butadiene rubber (NBR) and hydrogenated NBR (HNBR), so they're hard-wearing, resistant to oil and chemicals and have high tensile strength.
• Electrical actuation makes it easy to control the flow of liquid or gas
• G 1/4 connection port thread size compatible with industry-standard fittings
• Throttleable exhaust air function so you can use it as an exhaust port or a safety valve
• Soft-sealing principle prevents leakage
• Plug socket rated IP (ingress protection) 40, so is sealed against objects greater than 1 mm
• G 1/4 connection port thread size compatible with industry-standard fittings
• Throttleable exhaust air function so you can use it as an exhaust port or a safety valve
• Soft-sealing principle prevents leakage
• Plug socket rated IP (ingress protection) 40, so is sealed against objects greater than 1 mm
