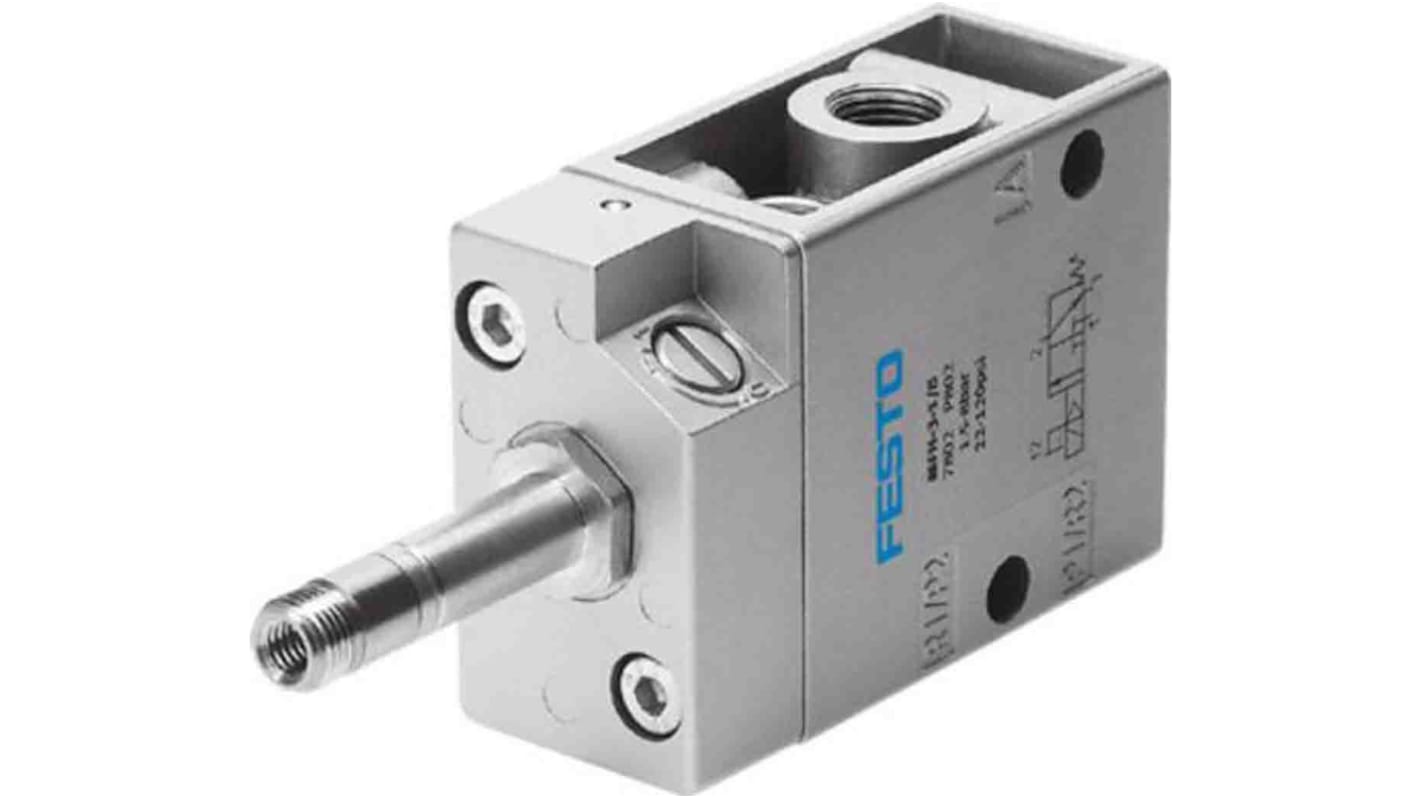

Festo 3/2 Closed, Monostable Solenoid Valve - Electrical G 1/8 MFH Series, 7958
- RS Stock No.:
- 202-1276
- Mfr. Part No.:
- MFH-3-1/8-S
- Brand:
- Festo
Subtotal (1 unit)*
£140.59
(exc. VAT)
£168.71
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £140.59 |
*price indicative
- RS Stock No.:
- 202-1276
- Mfr. Part No.:
- MFH-3-1/8-S
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Function | 3/2 Closed, Monostable | |
| Connection Port Thread | G 1/8 | |
| Actuation Type | Electrical | |
| Manufacturer Series | MFH | |
| Mounting Style | Manifold | |
| Solenoid Fitted | Yes | |
| Number of Ports | 2 | |
| Body Material | Aluminium | |
| Maximum Flow Rate | 500L/min | |
| Solenoid Power Consumption | 4.5W | |
| Minimum Operating Pressure | -0.95bar | |
| Minimum Operating Temperature | -10°C | |
| Thread Size | 1/8in | |
| Maximum Operating Pressure | 10 bar | |
| Maximum Operating Temperature | +60°C | |
| Number of Positions | 3 | |
| Thread Standard | G | |
Select all | ||
|---|---|---|
Brand Festo | ||
Function 3/2 Closed, Monostable | ||
Connection Port Thread G 1/8 | ||
Actuation Type Electrical | ||
Manufacturer Series MFH | ||
Mounting Style Manifold | ||
Solenoid Fitted Yes | ||
Number of Ports 2 | ||
Body Material Aluminium | ||
Maximum Flow Rate 500L/min | ||
Solenoid Power Consumption 4.5W | ||
Minimum Operating Pressure -0.95bar | ||
Minimum Operating Temperature -10°C | ||
Thread Size 1/8in | ||
Maximum Operating Pressure 10 bar | ||
Maximum Operating Temperature +60°C | ||
Number of Positions 3 | ||
Thread Standard G | ||
- COO (Country of Origin):
- IN
Festo 3/2 Closed Monostable Solenoid Valve, Electrical, G 1/8 - MFH Series - MFH-3-1/8-S
This solenoid valve from Festo directs the flow of compressed air in pneumatic systems. The valve opens immediately when actuated, offering accuracy and a fast response time when you need it. It's also compatible with a variety of attachments. You can mount this valve on a manifold rail or using the optional through-hole method. The three-way, two-position valve is soft-sealing and durable, so it's long-lasting. An IP65 rating means it's sealed against dust and dirt, as well as waterjets. A mechanical spring reset makes it easy to use this valve repeatedly.
• Electrical actuation type
• G 1/8 port thread size
• 3/2 closed monostable valve type
• Standard nominal flow rate of 500 l/min
• Operating pressure of -0.95 bar to 10 bar
• Ambient temperature of -5°C to +40°C
• Pilot actuated
• Lubricated operation possible
• G 1/8 port thread size
• 3/2 closed monostable valve type
• Standard nominal flow rate of 500 l/min
• Operating pressure of -0.95 bar to 10 bar
• Ambient temperature of -5°C to +40°C
• Pilot actuated
• Lubricated operation possible
Range Information
• The MFH series is Festo's range of pneumatic valves which offer long-lasting service thanks to sturdy aluminium die-cast construction
• Poppet valve design provides precise control, high flow rates and low leakage in a compact package
• The units offer optimised response times with patented U-ring and servo control
• A reliable coupling system ensures quick mounting and dismounting
• Poppet valve design provides precise control, high flow rates and low leakage in a compact package
• The units offer optimised response times with patented U-ring and servo control
• A reliable coupling system ensures quick mounting and dismounting
The Festo solenoid valve with manual override without solenoid coil or socket and solenoid coil and socket should be ordered separately. It has piston slide of structure and its width size is 26 mm and used operating pressure up to -0.95 - 10 bar . Its standard nominal flow rate is 500 l/min.
Ambient temperature is -5°C to 40 °C
Aluminium die cast material used for housing material
Aluminium die cast material used for housing material
