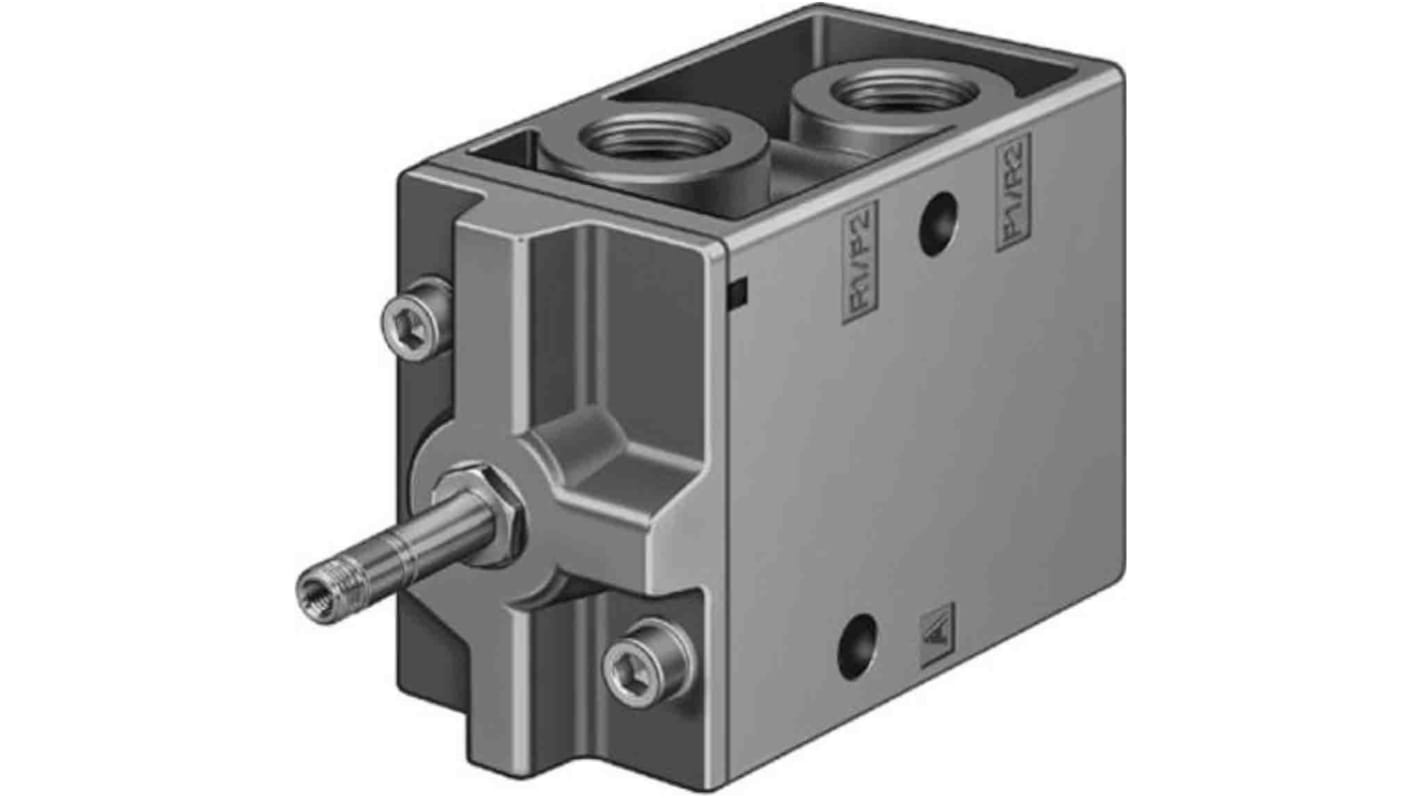

Festo 3/2 Closed, Monostable Solenoid Valve - Electrical G 1/2 MFH Series, 7960
- RS Stock No.:
- 202-1216
- Mfr. Part No.:
- MFH-3-1/2-S
- Brand:
- Festo
Subtotal (1 unit)*
£265.64
(exc. VAT)
£318.77
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £265.64 |
*price indicative
- RS Stock No.:
- 202-1216
- Mfr. Part No.:
- MFH-3-1/2-S
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Function | 3/2 Closed, Monostable | |
| Connection Port Thread | G 1/2 | |
| Actuation Type | Electrical | |
| Manufacturer Series | MFH | |
| Mounting Style | Manifold | |
| Solenoid Fitted | Yes | |
| Number of Ports | 2 | |
| Body Material | Aluminium | |
| Maximum Flow Rate | 3700L/min | |
| Solenoid Power Consumption | 4.5W | |
| Minimum Operating Pressure | -0.95bar | |
| Maximum Operating Pressure | 10 bar | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -10°C | |
| Number of Positions | 3 | |
| Thread Size | 1/2in | |
| Thread Standard | G | |
Select all | ||
|---|---|---|
Brand Festo | ||
Function 3/2 Closed, Monostable | ||
Connection Port Thread G 1/2 | ||
Actuation Type Electrical | ||
Manufacturer Series MFH | ||
Mounting Style Manifold | ||
Solenoid Fitted Yes | ||
Number of Ports 2 | ||
Body Material Aluminium | ||
Maximum Flow Rate 3700L/min | ||
Solenoid Power Consumption 4.5W | ||
Minimum Operating Pressure -0.95bar | ||
Maximum Operating Pressure 10 bar | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -10°C | ||
Number of Positions 3 | ||
Thread Size 1/2in | ||
Thread Standard G | ||
- COO (Country of Origin):
- CN
Festo 3/2 Closed Monostable Solenoid Valve, Electrical, G 1/2 - MFH Series - MFH-3-1/2-S
This solenoid valve from Festo has a soft start to gradually build up pressure in pneumatic systems. An adjustable control valve allows only small amounts of air to flow into a compressed-air system as output pressure is built up. This lets downstream cylinders and working devices slowly move into position. Full pressure is only released when all of the components are in place. This improves operator safety and protects pneumatic systems from damage. You can manually stop this valve in the event of a technical fault.
• Connection port thread size of G 1/2
• Poppet seat design structure
• Mechanical spring reset
• Operating pressure range of -0.95 bar to 10 bar
• Standard nominal flow rate of 3700 L/min
• Nominal size of 14 mm
• Soft-sealing to prevent leaks
• Reversible flow direction
• Manifold mounting style
• Ambient temperature range of -5°C to +40°C
• IP65 rating (sealed against dust and moderate water jets)
• Poppet seat design structure
• Mechanical spring reset
• Operating pressure range of -0.95 bar to 10 bar
• Standard nominal flow rate of 3700 L/min
• Nominal size of 14 mm
• Soft-sealing to prevent leaks
• Reversible flow direction
• Manifold mounting style
• Ambient temperature range of -5°C to +40°C
• IP65 rating (sealed against dust and moderate water jets)
Range Information
• The MFH series of on/off valves can be used with Festo service units for the preparation of compressed air
• These components have NBR (nitrile rubber) seals which are resistant to oil, water and hydraulic fluid as well as heat-ageing and abrasion
• The all-metal components are made from sturdy die-cast aluminium and won't rust
• These components have NBR (nitrile rubber) seals which are resistant to oil, water and hydraulic fluid as well as heat-ageing and abrasion
• The all-metal components are made from sturdy die-cast aluminium and won't rust
The Festo solenoid valve with manual override without solenoid coil or socket and solenoid coil and socket should be ordered separately. It has piston slide of structure and its width size is 52 mm and used operating pressure up to -0.95 - 10 ba. Its standard nominal flow rate is 3700 l/min.
Ambient temperature is -5°C to 40 °C
Aluminium die cast material used for housing material
Aluminium die cast material used for housing material
