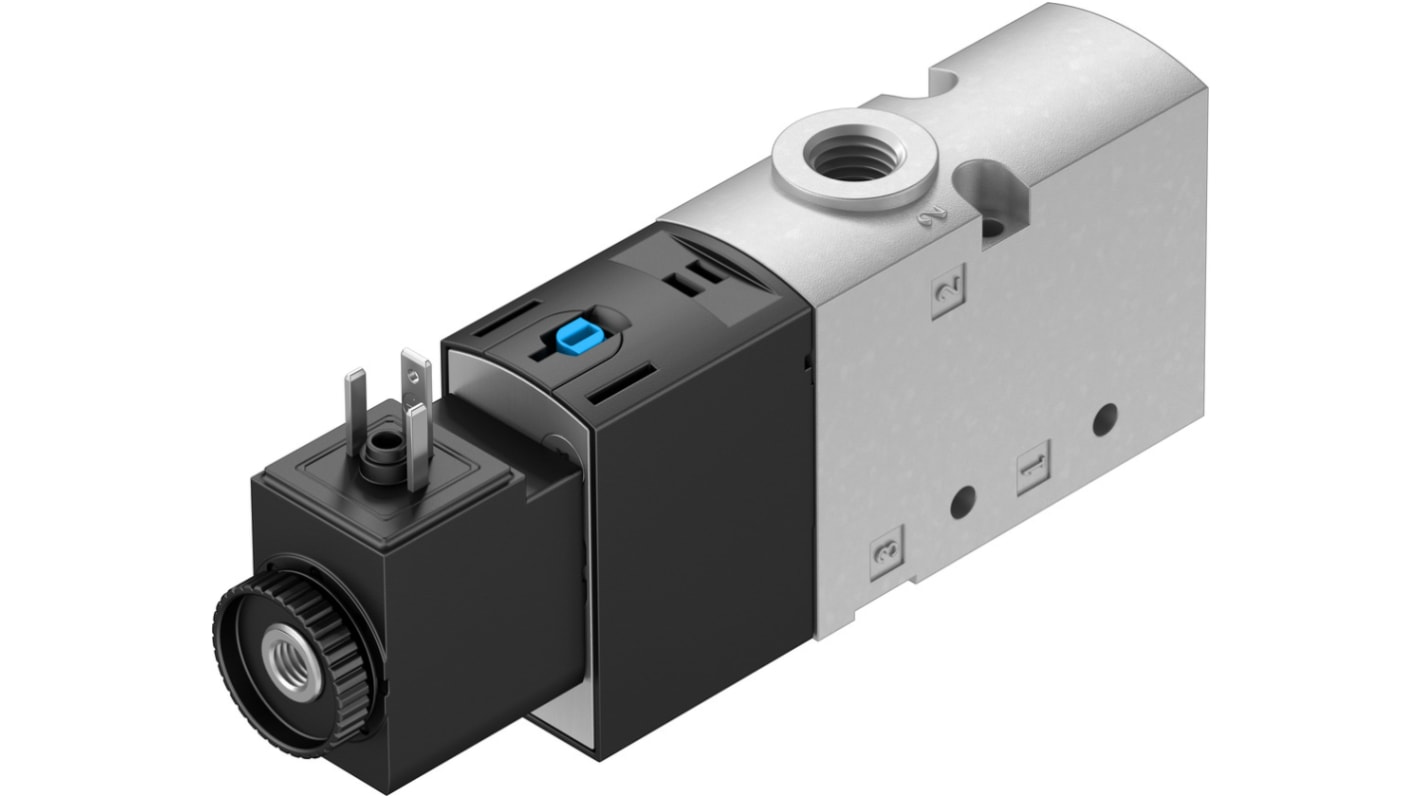

Festo 3/2 Closed, Monostable Solenoid Valve - Electrical G 1/8 VUVS Series 24V dc, 575269
- RS Stock No.:
- 202-1263
- Mfr. Part No.:
- VUVS-L20-M32C-AD-G18-F7-1C1
- Brand:
- Festo
Subtotal (1 unit)*
£72.04
(exc. VAT)
£86.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £72.04 |
*price indicative
- RS Stock No.:
- 202-1263
- Mfr. Part No.:
- VUVS-L20-M32C-AD-G18-F7-1C1
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Function | 3/2 Closed, Monostable | |
Connection Port Thread | G 1/8 | |
Actuation Type | Electrical | |
Manufacturer Series | VUVS | |
Mounting Style | Manifold | |
Solenoid Voltage | 24V dc | |
Solenoid Fitted | Yes | |
Number of Ports | 3 | |
Body Material | Aluminium Alloy | |
Maximum Flow Rate | 700L/min | |
Solenoid Power Consumption | 2.6W | |
Minimum Operating Pressure | 2.5bar | |
Thread Size | 1/8in | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +60°C | |
Maximum Operating Pressure | 10 bar | |
Number of Positions | 2 | |
Configuration | 3/2 Closed | |
Thread Standard | G | |
Select all | ||
---|---|---|
Brand Festo | ||
Function 3/2 Closed, Monostable | ||
Connection Port Thread G 1/8 | ||
Actuation Type Electrical | ||
Manufacturer Series VUVS | ||
Mounting Style Manifold | ||
Solenoid Voltage 24V dc | ||
Solenoid Fitted Yes | ||
Number of Ports 3 | ||
Body Material Aluminium Alloy | ||
Maximum Flow Rate 700L/min | ||
Solenoid Power Consumption 2.6W | ||
Minimum Operating Pressure 2.5bar | ||
Thread Size 1/8in | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +60°C | ||
Maximum Operating Pressure 10 bar | ||
Number of Positions 2 | ||
Configuration 3/2 Closed | ||
Thread Standard G | ||
- COO (Country of Origin):
- CN
Festo Solenoid Valve, 172g Weight, Manual Override - VUVS-L20-M32C-AD-G18-F7-1C1
Get a handle on air circulation in your pneumatic system with this solenoid valve from Festo. It's designed to work with single-acting cylinders and control the extension of their pistons. The device's die-cast aluminium body withstands corrosion and impact, making it fit for use in harsh environments. It consumes just 2.6W of power during operation, so it's your energy-efficient workmate. When needed, you can manually override it through its built-in detent. Thanks to its light weight of 172g, it's easy to handle during installation.
Features & Benefits
• Non-reversible flow direction to prevent feedback that may damage your pneumatic equipment
• Manifold rail and through-hole mounting options to suit your setup's design needs
• NBR seals keep dust and contaminants out to ensure optimal performance
• Safe to use in demanding conditions, thanks to an operating temperature range between -10°C and +60°C
• Manifold rail and through-hole mounting options to suit your setup's design needs
• NBR seals keep dust and contaminants out to ensure optimal performance
• Safe to use in demanding conditions, thanks to an operating temperature range between -10°C and +60°C
Applications
• Beverage production
• Automotive industry
• Material handling equipment
• Automotive industry
• Material handling equipment
How responsive is this valve?
Thanks to a switching time of 21ms for the OFF function and 14ms for the ON function, you can be sure of a quick response to input signals.
