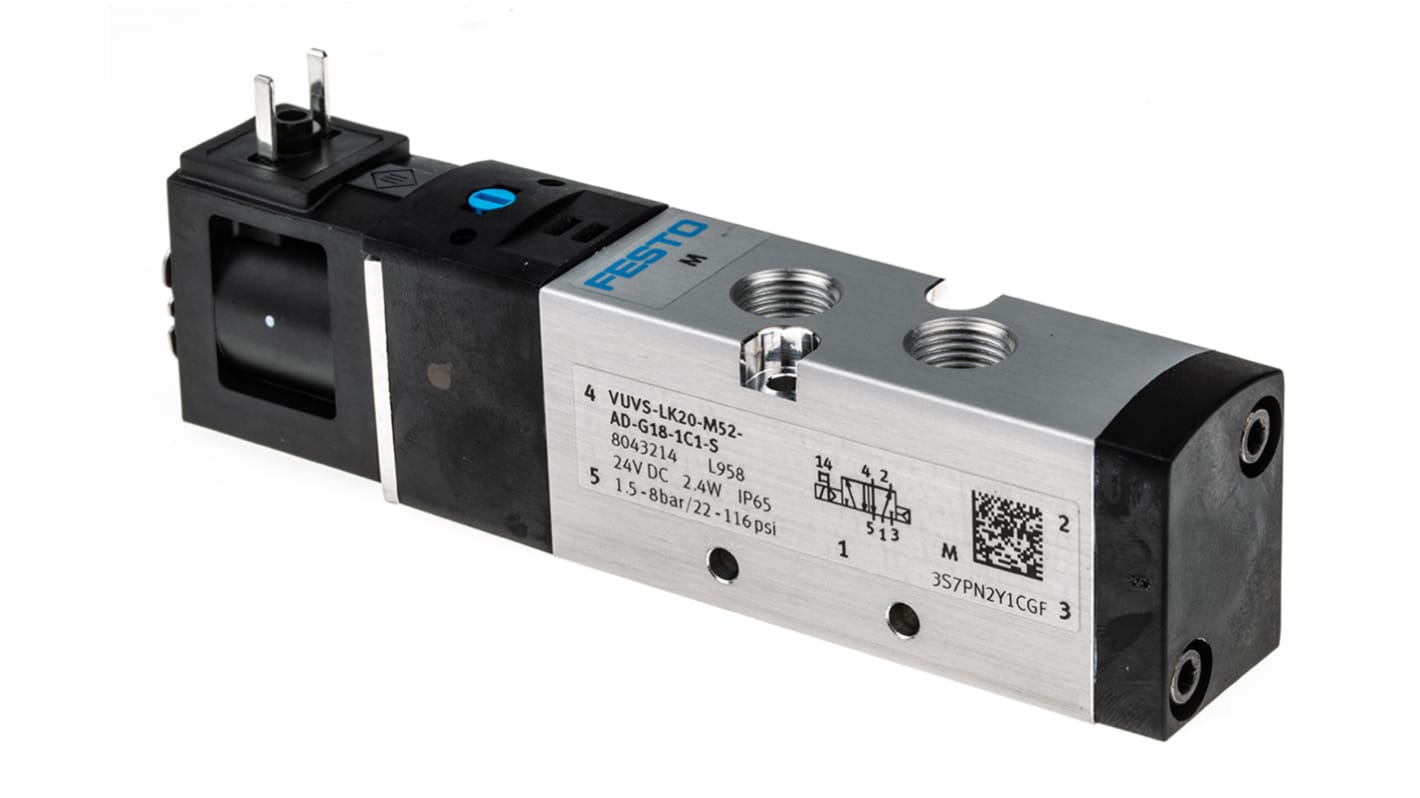

Festo 5/2 Solenoid Valve - Solenoid/Spring G 1/8 VUVS Series 24V dc, 8043214
- RS Stock No.:
- 121-5895
- Mfr. Part No.:
- VUVS-LK20-M52-AD-G18-1C1-S
- Brand:
- Festo
Save 4% when you buy 5 units
Subtotal (1 unit)*
£61.48
(exc. VAT)
£73.78
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
- Plus 27 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £61.48 |
5 + | £59.02 |
*price indicative
- RS Stock No.:
- 121-5895
- Mfr. Part No.:
- VUVS-LK20-M52-AD-G18-1C1-S
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Function | 5/2 | |
Connection Port Thread | G 1/8 | |
Actuation Type | Solenoid/Spring | |
Manufacturer Series | VUVS | |
Mounting Style | Inline | |
Solenoid Voltage | 24V dc | |
Solenoid Fitted | Yes | |
Number of Ports | 5 | |
Body Material | Aluminium Alloy | |
Maximum Flow Rate | 550L/min | |
Solenoid Power Consumption | 2.4W | |
Minimum Operating Pressure | 1.5bar | |
Number of Positions | 2 | |
Thread Size | 1/8in | |
Maximum Operating Temperature | +50°C | |
Minimum Operating Temperature | -5°C | |
Configuration | 5/2 | |
Maximum Operating Pressure | 8 bar | |
Thread Standard | G | |
Select all | ||
---|---|---|
Brand Festo | ||
Function 5/2 | ||
Connection Port Thread G 1/8 | ||
Actuation Type Solenoid/Spring | ||
Manufacturer Series VUVS | ||
Mounting Style Inline | ||
Solenoid Voltage 24V dc | ||
Solenoid Fitted Yes | ||
Number of Ports 5 | ||
Body Material Aluminium Alloy | ||
Maximum Flow Rate 550L/min | ||
Solenoid Power Consumption 2.4W | ||
Minimum Operating Pressure 1.5bar | ||
Number of Positions 2 | ||
Thread Size 1/8in | ||
Maximum Operating Temperature +50°C | ||
Minimum Operating Temperature -5°C | ||
Configuration 5/2 | ||
Maximum Operating Pressure 8 bar | ||
Thread Standard G | ||
- COO (Country of Origin):
- CN
Festo Long-Lasting Pneumatic Solenoid Valve, G 1/8, 24V DC - VUVS Series - VUVS-LK20-M52-AD-G18-1C1-S
This sturdy solenoid valve from Festo employs a reliable piston-slide structure to regulate the flow of liquid or gas in pneumatic systems. Its internal air-spring reset ensures a quick open/close response when the solenoid actuator is triggered. The valve operates via a 5-way port that allows for maximum outflow. It comes with pre-assembled parts that are easy to set up and install. Thanks to a nominal flow rate of 500l/min, you'll find this durable solenoid valve ideal for use in medium-volume pneumatic vacuum equipment.
• Operating temperature range of -5°C to +50°C makes it suitable for extreme conditions
• Corrosive-resistant aluminium-alloy body prevents rust damage
• Easy-to-operate piston slide design
• Manual override operating option available for versatility
• Automatic electrical actuation for fast action
• Corrosive-resistant aluminium-alloy body prevents rust damage
• Easy-to-operate piston slide design
• Manual override operating option available for versatility
• Automatic electrical actuation for fast action
Application Information
• Vacuum systems
• Packaging applications
• Heating and cooling systems
• Packaging applications
• Heating and cooling systems
How durable is this pneumatic solenoid valve?
This Festo valve is a long-lasting component.It has an IP (ingress protection) rating of IP67, meaning it's completely dust-tight and can be immersed in up to 1 metre of liquid for 30 minutes. It resists corrosion and rust, making it durable and suitable for harsh conditions.
