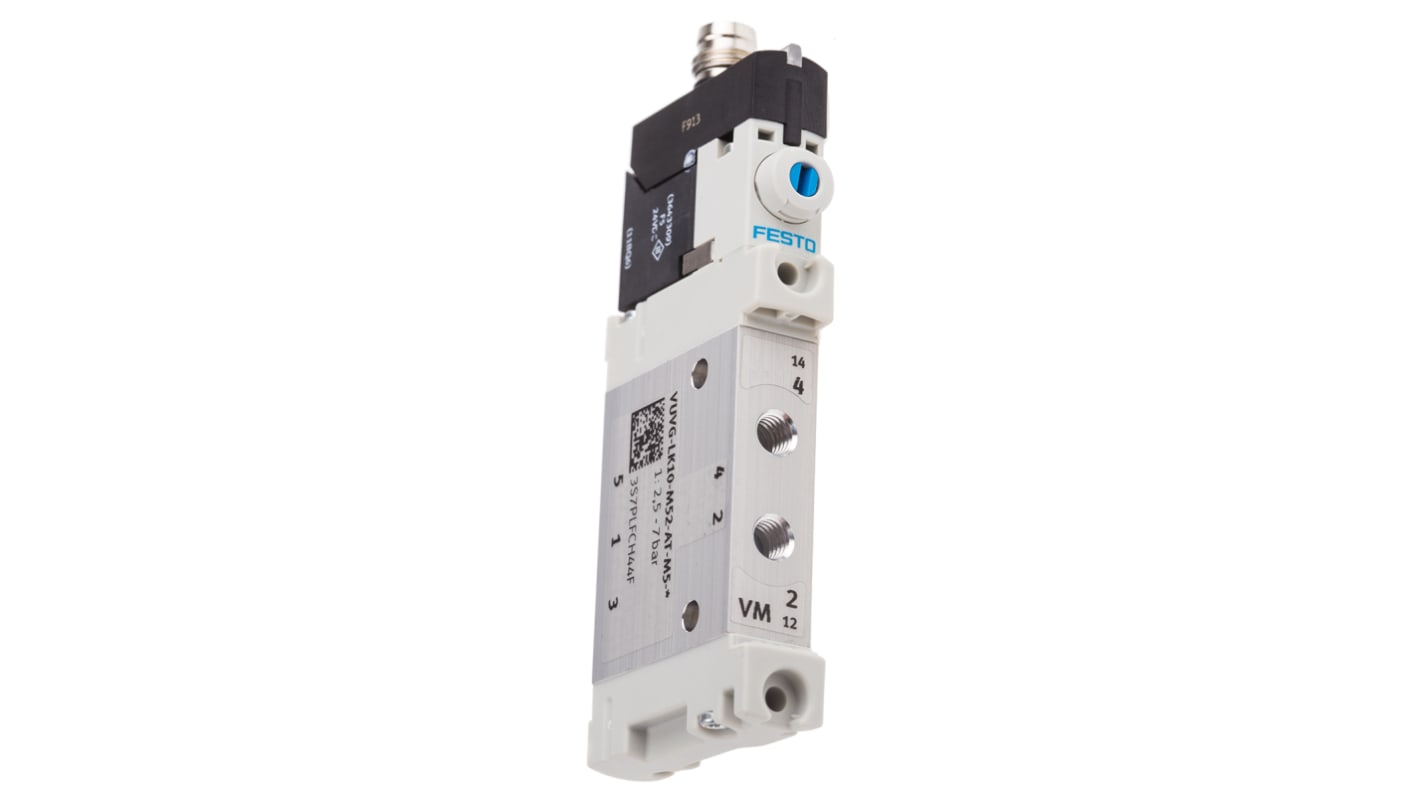

Festo 5/2 Solenoid Valve - Solenoid/Spring Metric M5 VUVG Series 24V dc, 8042543

View all Pneumatic Solenoid Valves
Bulk discount available

Subtotal (1 unit)*

£58.62

(exc. VAT)

£70.34

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 11 unit(s) ready to ship
  • Plus 11 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£58.62
5 +£56.28

*price indicative

Pneumatic Solenoid Valves to Solenoid Valve Coils
Need Coils for Your Solenoid Valves?
Pneumatic solenoid valves rely on compatible coils to operate efficiently. If you're browsing valves, don’t forget to check out our range of solenoid valve coils—designed to deliver reliable actuation and optimal performance. Whether you're replacing a coil or building a new system, pairing your valve with the right coil ensures smooth and responsive control.
Shop Now
RS Stock No.:
121-5880
Mfr. Part No.:
VUVG-LK10-M52-AT-M5-1R8L-S
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Function

5/2

Connection Port Thread

Metric M5

Actuation Type

Solenoid/Spring

Manufacturer Series

VUVG

Mounting Style

Inline

Solenoid Voltage

24V dc

Solenoid Fitted

Yes

Number of Ports

5

Body Material

Aluminium Alloy

Maximum Flow Rate

180L/min

Solenoid Power Consumption

0.7W

Minimum Operating Pressure

2.5bar

Maximum Operating Pressure

7bar

Thread Size

M5

Minimum Operating Temperature

-5°C

Number of Positions

2

Maximum Operating Temperature

+50°C

Thread Standard

Metric

COO (Country of Origin):
DE

Festo Solenoid Valve, 0.7W Power Consumption, 14ms Switch-On Time - VUVG-LK10-M52-AT-M5-1R8L-S


Looking for a hands-off way to manage airflow in your pneumatic system? Choose this solenoid valve from Festo. It uses a 24V DC solenoid coil that automates valve action, so you can get on with other tasks. As it has an operating pressure range between 2.5 and 7 bar, it's a versatile choice. Housing made from a tough aluminium alloy means you can be sure of the unit's reliable long-term performance. Straightforward inline mounting makes for quick and simple installation.

Features & Benefits


• IP65 rating indicates it's completely dust-tight and resists low-pressure water jets from all directions
• LED display enables status monitoring at a glance
• Air spring reset function quickly restores the valve to restart operations
• Light 50g weight doesn't add excess load to your setup

Applications


• Automotive manufacture
• Pulp and paper mills
• Medical equipment

Can I use this component in harsh industrial conditions?


Yes. This device has an operating temperature range between -5°C and +50°C, so it's suitable for demanding industrial use.

How many ports does this valve have?


This is a 5/2 valve, meaning it has five ports available for exhaust fumes or connecting additional equipment.
