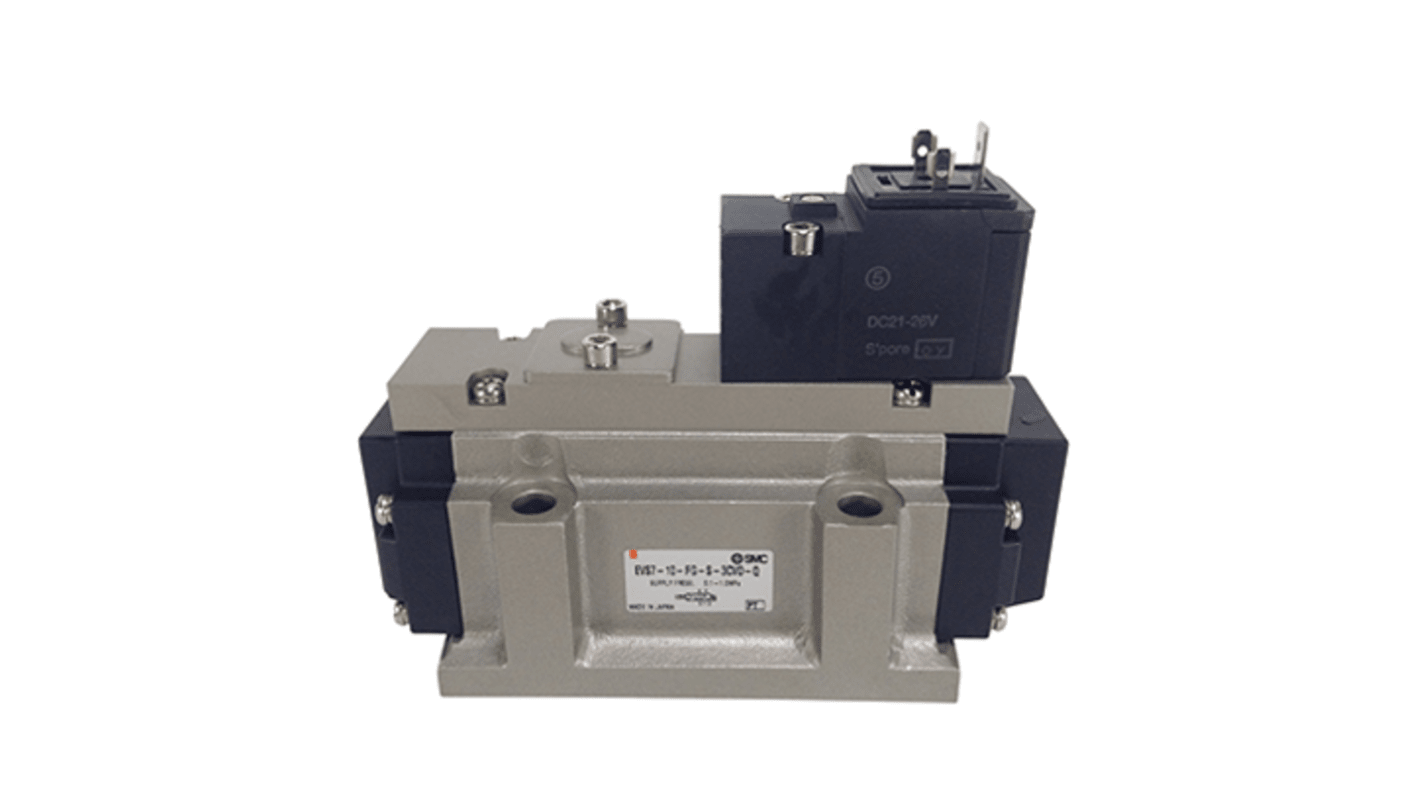

SMC Solenoid Valve - Solenoid EVS7-10 Series
- RS Stock No.:
- 623-517
- Mfr. Part No.:
- EVS7-10-FG-S-3CV-Q
- Brand:
- SMC
Subtotal (1 unit)*
£141.12
(exc. VAT)
£169.34
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £141.12 |
*price indicative
- RS Stock No.:
- 623-517
- Mfr. Part No.:
- EVS7-10-FG-S-3CV-Q
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Solenoid Valve | |
| Actuation Type | Solenoid | |
| Series | EVS7-10 | |
| Seal Material | Rubber | |
| Solenoid Type | Single | |
| Maximum Operating Pressure | 1 Mpa | |
| Maximum Flow Rate | 5500L/min | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | ISO 5599/1 | |
| Hazardous Area Certification | No | |
| Electrical Connection Type | M 12 Connector | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Solenoid Valve | ||
Actuation Type Solenoid | ||
Series EVS7-10 | ||
Seal Material Rubber | ||
Solenoid Type Single | ||
Maximum Operating Pressure 1 Mpa | ||
Maximum Flow Rate 5500L/min | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals ISO 5599/1 | ||
Hazardous Area Certification No | ||
Electrical Connection Type M 12 Connector | ||
- COO (Country of Origin):
- JP
The SMC Identified as a VS7-10 Solenoid Valve with a 4/5 port configuration. This valve is a key component within pneumatic systems, providing reliable fluid control and is part of SMC's 'V' product line, indicating its valve function and suitability for various industrial control applications.
Serves as a solenoid valve for precise actuation
Critical for pneumatic flow regulation
Supports various industrial control applications
