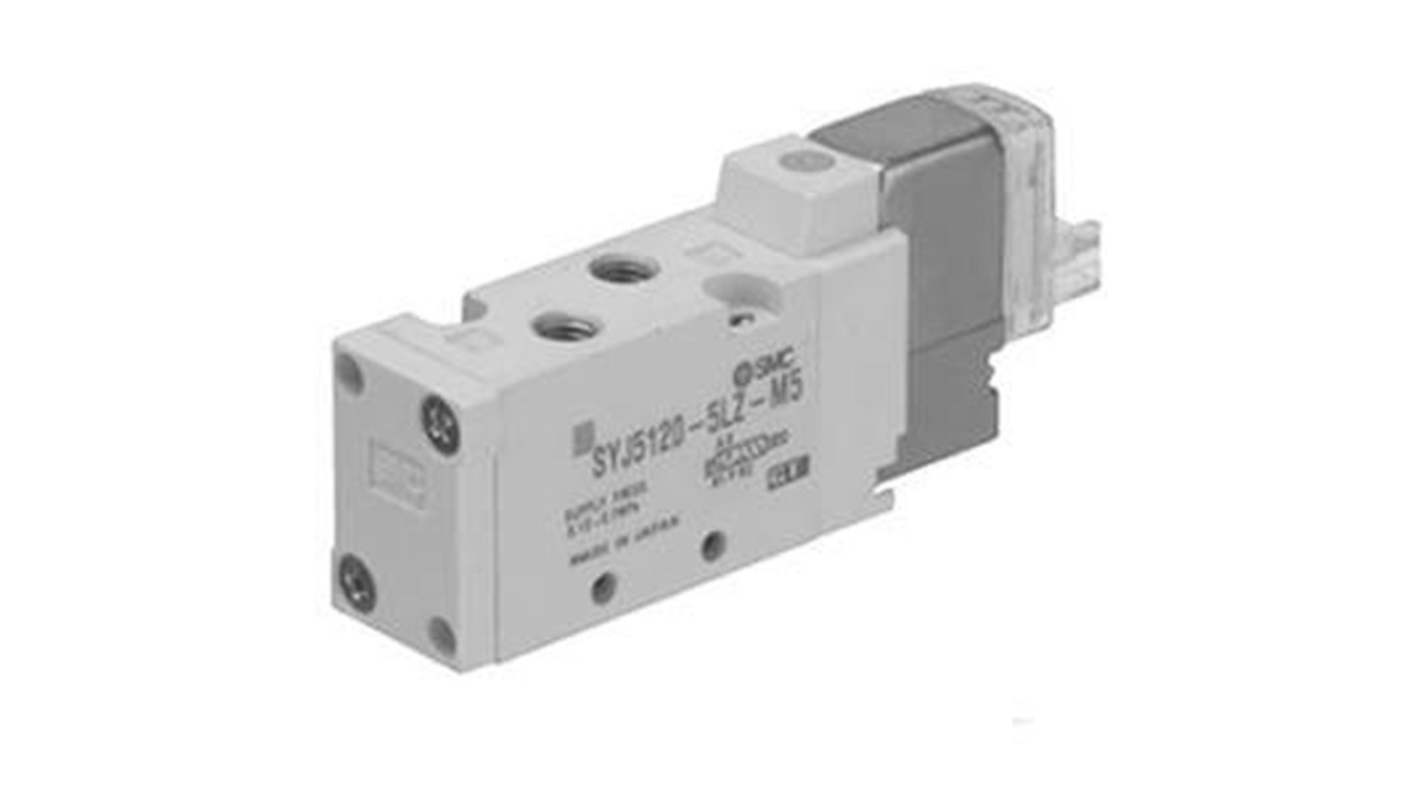

SMC Pneumatic Solenoid Valve - 2 Position Single Solenoid Solenoid Metric SYJ5000 Series 24V dc
- RS Stock No.:
- 362-821
- Mfr. Part No.:
- SYJ5123-5WAOU-M5-Q
- Brand:
- SMC
Subtotal (1 unit)*
£59.73
(exc. VAT)
£71.68
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 26 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £59.73 |
*price indicative
- RS Stock No.:
- 362-821
- Mfr. Part No.:
- SYJ5123-5WAOU-M5-Q
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Solenoid Valve | |
| Port Size | M5 x 0.5 | |
| Connection Thread Standard | Metric | |
| Actuation Type | Solenoid | |
| Voltage | 24V dc | |
| Series | SYJ5000 | |
| Seal Material | Rubber | |
| Mount Type | Body Ported | |
| Number of Ports | 5 | |
| Body Material | Aluminium | |
| Maximum Operating Pressure | 0.7 Mpa | |
| Valve Function | 2 Position Single Solenoid | |
| Mount Pattern | Direct | |
| Minimum Operating Temperature | -10°C | |
| Minimum Pilot Pressure | 0.1MPa | |
| Maximum Flow Rate | 160L/min | |
| Port Gender | Female | |
| Maximum Operating Temperature | 50°C | |
| Solenoid Power Consumption | 0.35W | |
| Height | 28.1mm | |
| Length | 73mm | |
| Standards/Approvals | RoHS, IEC 60529, JIS, CE-Q | |
| Hazardous Area Certification | No | |
| Width | 15mm | |
| Number of Positions | 2 | |
| Electrical Connection Type | L-Plug Connector | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Solenoid Valve | ||
Port Size M5 x 0.5 | ||
Connection Thread Standard Metric | ||
Actuation Type Solenoid | ||
Voltage 24V dc | ||
Series SYJ5000 | ||
Seal Material Rubber | ||
Mount Type Body Ported | ||
Number of Ports 5 | ||
Body Material Aluminium | ||
Maximum Operating Pressure 0.7 Mpa | ||
Valve Function 2 Position Single Solenoid | ||
Mount Pattern Direct | ||
Minimum Operating Temperature -10°C | ||
Minimum Pilot Pressure 0.1MPa | ||
Maximum Flow Rate 160L/min | ||
Port Gender Female | ||
Maximum Operating Temperature 50°C | ||
Solenoid Power Consumption 0.35W | ||
Height 28.1mm | ||
Length 73mm | ||
Standards/Approvals RoHS, IEC 60529, JIS, CE-Q | ||
Hazardous Area Certification No | ||
Width 15mm | ||
Number of Positions 2 | ||
Electrical Connection Type L-Plug Connector | ||
- COO (Country of Origin):
- JP
The SMC 5/2, 5/3 solenoid valve designed for in-line and sub-base mounting with an M8 connector IEC60947-5-2. It operates with air as the fluid and has an operating pressure range of 0.1 to 0.7 MPa. The Cv factor for inline mounting ranges from 0.17 to 0.2, while base mounting has a Cv factor of 0.25.
Rated voltage 3, 5, 6, 12, 24 VDC
Ambient and fluid temperature 50°C max
