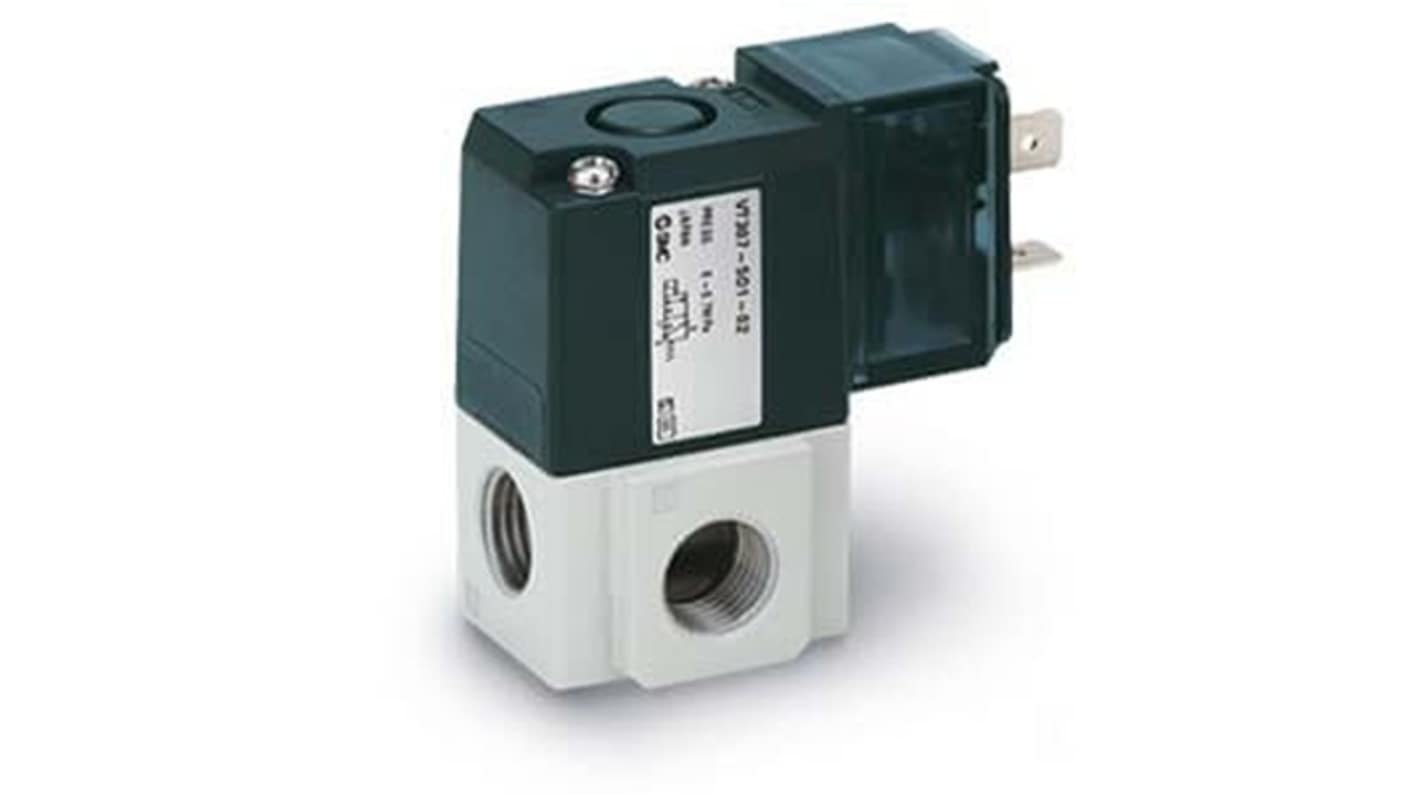

SMC Solenoid Valve - 3 Port Solenoid Solenoid M5 x 0.8 VT307 Series 24V dc
- RS Stock No.:
- 362-315
- Mfr. Part No.:
- VT307-5D1-01F-F-Q
- Brand:
- SMC
Subtotal (1 unit)*
£34.86
(exc. VAT)
£41.83
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 6 unit(s) ready to ship from another location
- Plus 7 unit(s) shipping from 18 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £34.86 |
*price indicative
- RS Stock No.:
- 362-315
- Mfr. Part No.:
- VT307-5D1-01F-F-Q
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Solenoid Valve | |
| Port Size | M5 | |
| Port Type | Threaded | |
| Connection Thread Standard | M5 x 0.8 | |
| Actuation Type | Solenoid | |
| Seal Material | Nitrile Rubber (NBR) | |
| Voltage | 24V dc | |
| Series | VT307 | |
| Solenoid Type | Direct Acting | |
| Mount Type | Panel | |
| Number of Ports | 5 | |
| Maximum Operating Pressure | 1 Mpa | |
| Body Material | Aluminium | |
| Maximum Pilot Pressure | 0.7MPa | |
| Mount Pattern | Base | |
| Maximum Flow Rate | 500L/min | |
| Minimum Pilot Pressure | 0.15MPa | |
| Valve Function | 3 Port Solenoid | |
| Minimum Operating Temperature | -10°C | |
| Port Gender | Female | |
| Maximum Operating Temperature | 50°C | |
| Solenoid Power Consumption | 3.5W | |
| Standards/Approvals | CE, RoHS | |
| Hazardous Area Certification | NO | |
| Length | 120mm | |
| Height | 90mm | |
| Width | 30mm | |
| Number of Positions | 2 | |
| Electrical Connection Type | DIN 43650 A | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Solenoid Valve | ||
Port Size M5 | ||
Port Type Threaded | ||
Connection Thread Standard M5 x 0.8 | ||
Actuation Type Solenoid | ||
Seal Material Nitrile Rubber (NBR) | ||
Voltage 24V dc | ||
Series VT307 | ||
Solenoid Type Direct Acting | ||
Mount Type Panel | ||
Number of Ports 5 | ||
Maximum Operating Pressure 1 Mpa | ||
Body Material Aluminium | ||
Maximum Pilot Pressure 0.7MPa | ||
Mount Pattern Base | ||
Maximum Flow Rate 500L/min | ||
Minimum Pilot Pressure 0.15MPa | ||
Valve Function 3 Port Solenoid | ||
Minimum Operating Temperature -10°C | ||
Port Gender Female | ||
Maximum Operating Temperature 50°C | ||
Solenoid Power Consumption 3.5W | ||
Standards/Approvals CE, RoHS | ||
Hazardous Area Certification NO | ||
Length 120mm | ||
Height 90mm | ||
Width 30mm | ||
Number of Positions 2 | ||
Electrical Connection Type DIN 43650 A | ||
- COO (Country of Origin):
- JP
The SMC 3 Port Solenoid Valve represents cutting-edge technology in fluid control, making it an essential component for various applications. It offers a direct-operated poppet type mechanism that ensures reliable operation, even in demanding environments. Engineered for efficiency, this valve is perfect for applications requiring precision and low power consumption. Its robust construction allows for versatile configurations, while the integrated energy-saving features contribute to a sustainable solution for pneumatic systems. The valve's interchangeable mounting dimensions simplify installation, making it a preferred choice for engineers and technicians alike. Designed to meet RoHS compliance, it suits modern industrial demands, proving to be not just a component but a vital asset for pneumatic systems.
Designed for direct operation, ensuring swift response and high reliability
Compact size allows for easy integration into existing systems
Energy-efficient operation reduces overall power consumption
Chemical resistance is facilitated by HNBR rubber seals
Interchangeable mounting dimensions enhance versatility for various setups
Complies with RoHS standards for environmentally friendly use
Suitable for continuous duty applications, ensuring consistent performance
Features a non-locking manual override for quick accessibility during maintenance
