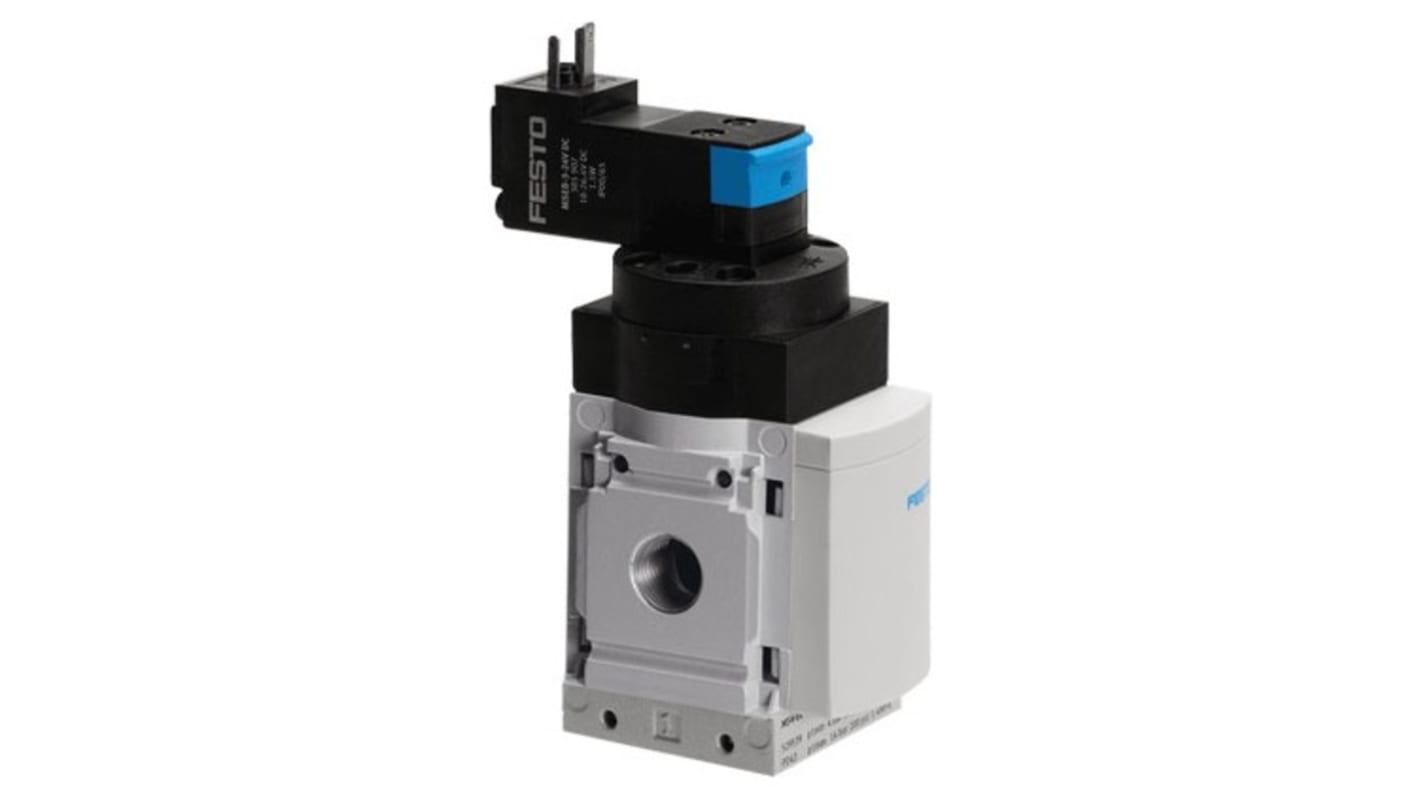

Festo Pneumatic Soft Start Valve, 2000 L/min G 1/4 Threaded 14 bar G 1/4
- RS Stock No.:
- 288-2675
- Mfr. Part No.:
- MS4-DE-1/4-V110
- Brand:
- Festo
Subtotal (1 unit)*
£155.87
(exc. VAT)
£187.04
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £155.87 |
*price indicative
- RS Stock No.:
- 288-2675
- Mfr. Part No.:
- MS4-DE-1/4-V110
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Soft Start Valve | |
| Series | MS | |
| Inlet Connection Type | Threaded | |
| Inlet Connection Size | G 1/4 | |
| Outlet Connection Size | G 1/4 | |
| Flow Rate | 2000L/min | |
| Minimum Operating Pressure | 4bar | |
| Inlet Thread Standard | G | |
| Maximum Operating Pressure | 14 bar | |
| Material | Die Cast Aluminium | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Soft Start Valve | ||
Series MS | ||
Inlet Connection Type Threaded | ||
Inlet Connection Size G 1/4 | ||
Outlet Connection Size G 1/4 | ||
Flow Rate 2000L/min | ||
Minimum Operating Pressure 4bar | ||
Inlet Thread Standard G | ||
Maximum Operating Pressure 14 bar | ||
Material Die Cast Aluminium | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Festo MS Pneumatic Soft Start Valve, 2000L/min Flow Rate, G1/4 Inlet Connection Size - MS4-DE-1/4-V110, Numeric Part Number:529519
This pneumatic soft-start valve provides controlled pressurisation of pneumatic circuits, reducing inrush and smoothing start-up for compressed Air systems. It is designed for industrial automation and mechanical installations where moderated Air delivery prevents shock loads and protects downstream components.
Features and Benefits:
• 2000 L/min flow rate reduces system start delay
• G1/4 threaded inlet and outlet simplifies connection
• Die-cast aluminium body offers Durable lightweight construction
• 4 to 14 bar operating range supports varied supply pressures
• -10 to 60°C temperature tolerance enables broad environmental use
• G1/4 threaded inlet and outlet simplifies connection
• Die-cast aluminium body offers Durable lightweight construction
• 4 to 14 bar operating range supports varied supply pressures
• -10 to 60°C temperature tolerance enables broad environmental use
Applications
• Suitable for controlled start-up of pneumatic actuators
• Ideal for soft pressurisation in machine-tool pneumatic circuits
• Used with valves to prevent pressure spikes in assembly lines
• Can be used for gradual fill of Air receivers and manifolds
• Ideal for soft pressurisation in machine-tool pneumatic circuits
• Used with valves to prevent pressure spikes in assembly lines
• Can be used for gradual fill of Air receivers and manifolds
What connection Interface does it use for integration?
It employs G1/4 threaded ports on both inlet and outlet to match standard G-threaded fittings in industrial pneumatics.
How does the component handle environmental temperature variation?
The unit is rated to operate down to -10°C and up to 60°C, accommodating typical factory and moderate cold-room conditions.
What mechanical material ensures longevity under cycling?
The housing is produced from die-cast aluminium, providing corrosion‑resistant structural support for repetitive use.
Are there regulatory material restrictions affecting selection?
The valve meets RoHS requirements, limiting certain hazardous substances in its construction.
