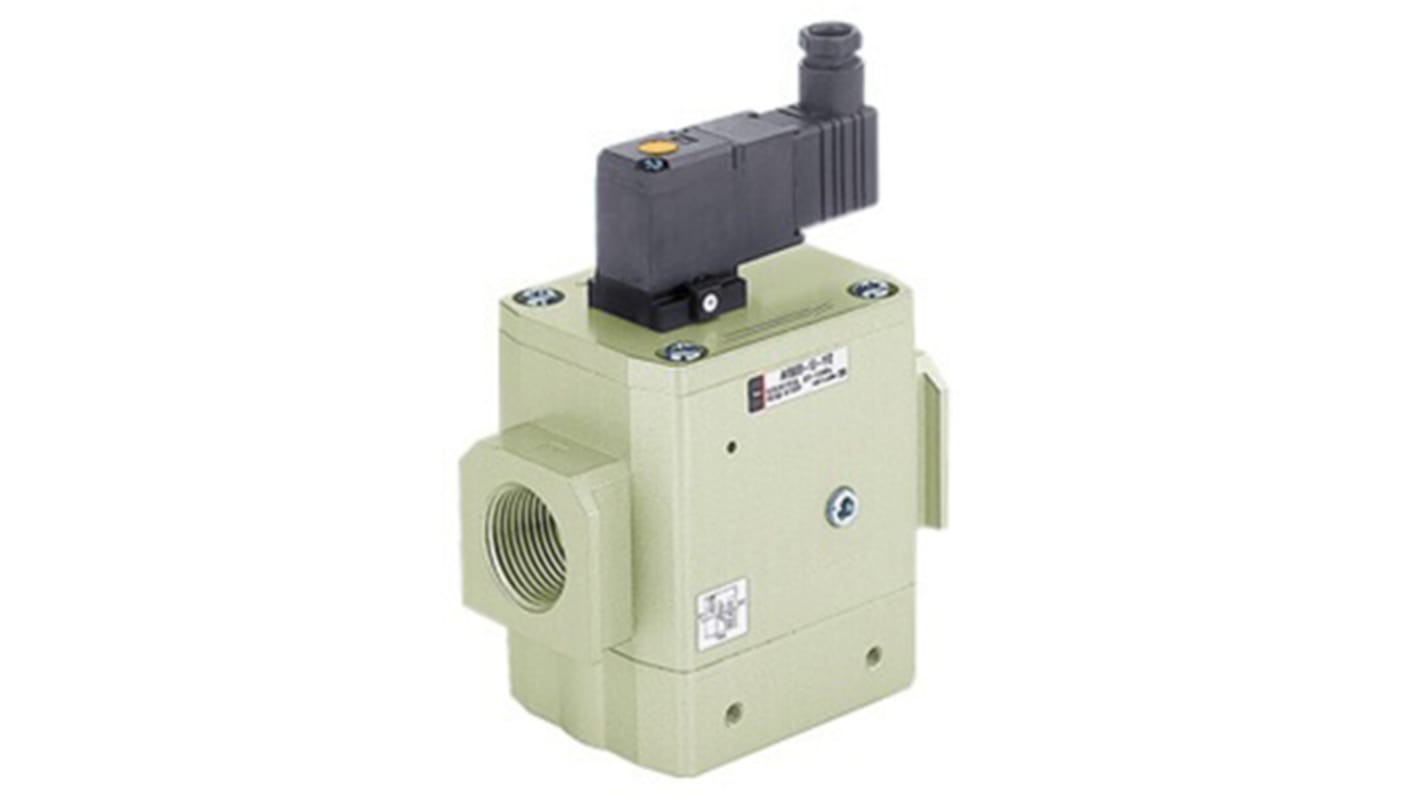

SMC Pneumatic Soft Start Valve 3/8 in G 3/8 10 bar 3/8 in
- RS Stock No.:
- 234-4552
- Mfr. Part No.:
- AV3000-F03-5DZB-Q
- Brand:
- SMC
Subtotal (1 unit)*
£160.66
(exc. VAT)
£192.79
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 14 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £160.66 |
*price indicative
- RS Stock No.:
- 234-4552
- Mfr. Part No.:
- AV3000-F03-5DZB-Q
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Soft Start Valve | |
| Series | EAV3000 | |
| Inlet Connection Size | 3/8 in | |
| Inlet Connection Type | G 3/8 | |
| Sub Type | Control Valve | |
| Outlet Connection Size | 3/8 in | |
| Minimum Operating Pressure | 10bar | |
| Maximum Operating Pressure | 10 bar | |
| Material | ADC | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Soft Start Valve | ||
Series EAV3000 | ||
Inlet Connection Size 3/8 in | ||
Inlet Connection Type G 3/8 | ||
Sub Type Control Valve | ||
Outlet Connection Size 3/8 in | ||
Minimum Operating Pressure 10bar | ||
Maximum Operating Pressure 10 bar | ||
Material ADC | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
The SMC Series AV is a soft start up valve for low-speed air supply to gradually raise initial pressure in an air system and for quick exhaust by cutting off air supply.
Operating pressure range 0.2 - 1MPa
Coil rated voltage 12, 24VDC
100, 110 to 120, 200, 220VAC
Allowable voltage fluctuation -15% to +10% of rated voltage
Ambient & fluid temperature 0 to 60°C
