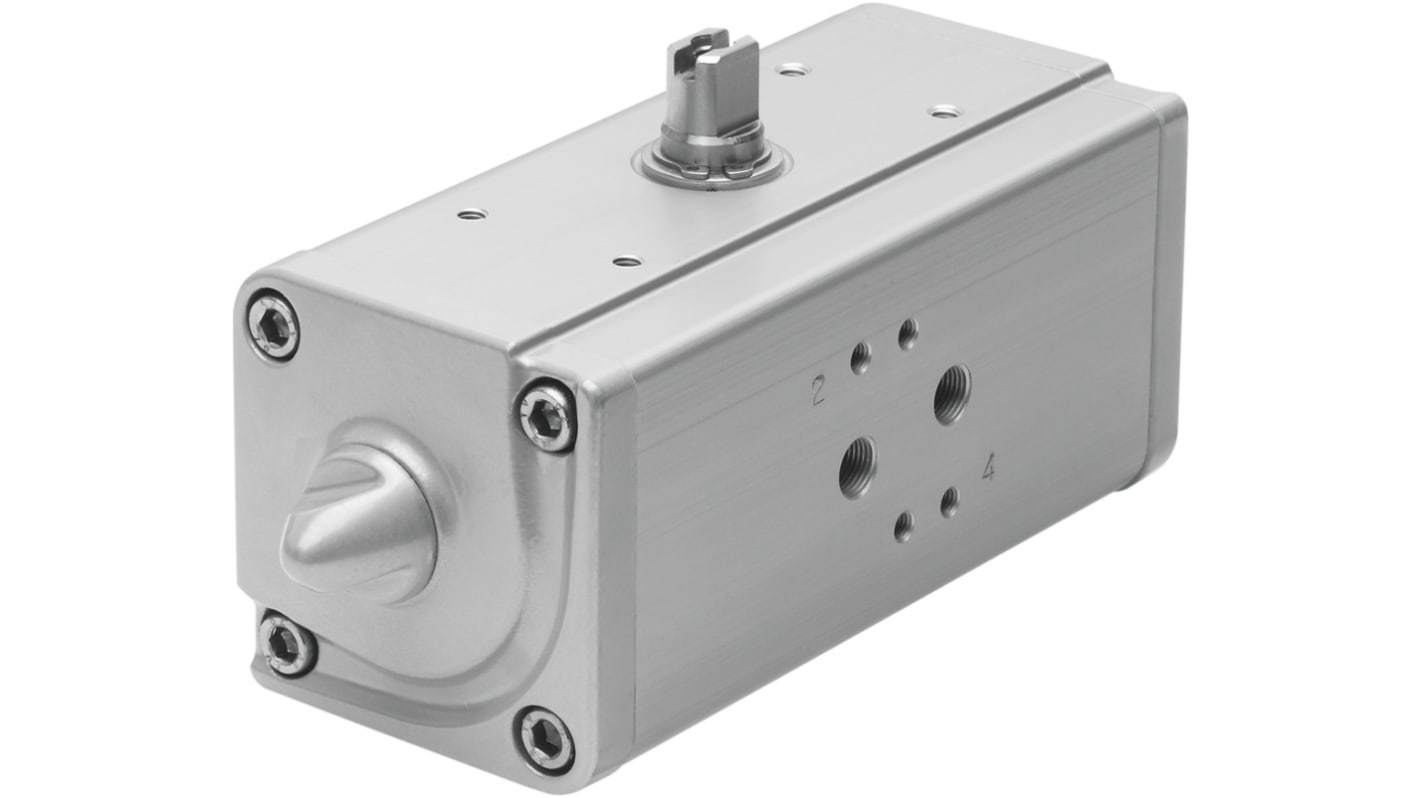

Festo DAPS Series 8.4 bar Single Action Rotary Actuator, 90° Rotary Angle

View all Pneumatic Rotary Actuators

Subtotal (1 unit)*

£228.64

(exc. VAT)

£274.37

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£228.64

*price indicative

RS Stock No.:
271-6697
Mfr. Part No.:
DAPS-0030-090-R-F04
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Rotary Angle

90°

Action

Single

Manufacturer Series

DAPS

Maximum Operating Pressure

8.4 bar

Port Connection

G 1/8

Weight

1kg

Series

DAPS

Model Number

533476

COO (Country of Origin):
IT

Festo DAPS Series Rotary Actuator, 90° Rotary Angle, 8.4 Bar Maximum Operating Pressure - DAPS-0030-090-R-F04, Numeric Part Number: 533476


This rotary actuator provides precise control with a 90° swivel angle and operates within a pressure range of 0.1MPa to 0.84MPa. Weighing 1000g, it is ideal for automation processes requiring reliable performance in various industrial environments due to its robust construction.

Features & Benefits


• High torque output of 30 Nm at nominal pressure
• Operates in temperatures from -20°C to 80°C
• G1/8 port for easy integration into pneumatic systems
• Compact design for installation in tight spaces
• Corrosion-resistant for enhanced durability
• Reliable operation without cushioning

Applications


• Valve actuation in processing plants
• Automated systems requiring precise motion control
• Compact actuator solutions for equipment
• Pneumatic applications in industrial settings
• Systems needing low to moderate torque

Is it compatible with standard valve connections?


Yes, it conforms to ISO 5211 standards.

Does it require lubrication?


It operates without lubrication, but oil lubrication is recommended for extended longevity.

Can it handle dusty environments?


Yes, it is ATEX certified for dust protection.

Is it suitable for continuous operation?


The actuator supports up to 1Hz swivel frequency at 6bar.
