Festo DAPS Series 8.4 bar Single Action Rotary Actuator, 90° Rotary Angle
- RS Stock No.:
- 271-6661
- Mfr. Part No.:
- DAPS-0008-090-R-F03
- Brand:
- Festo
Subtotal (1 unit)*
£170.25
(exc. VAT)
£204.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £170.25 |
*price indicative
- RS Stock No.:
- 271-6661
- Mfr. Part No.:
- DAPS-0008-090-R-F03
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Rotary Angle | 90° | |
Action | Single | |
Manufacturer Series | DAPS | |
Maximum Operating Pressure | 8.4 bar | |
Port Connection | G 1/8 | |
Weight | 300g | |
Series | DAPS | |
Model Number | 549666 | |
Select all | ||
---|---|---|
Brand Festo | ||
Rotary Angle 90° | ||
Action Single | ||
Manufacturer Series DAPS | ||
Maximum Operating Pressure 8.4 bar | ||
Port Connection G 1/8 | ||
Weight 300g | ||
Series DAPS | ||
Model Number 549666 | ||
- COO (Country of Origin):
- IT

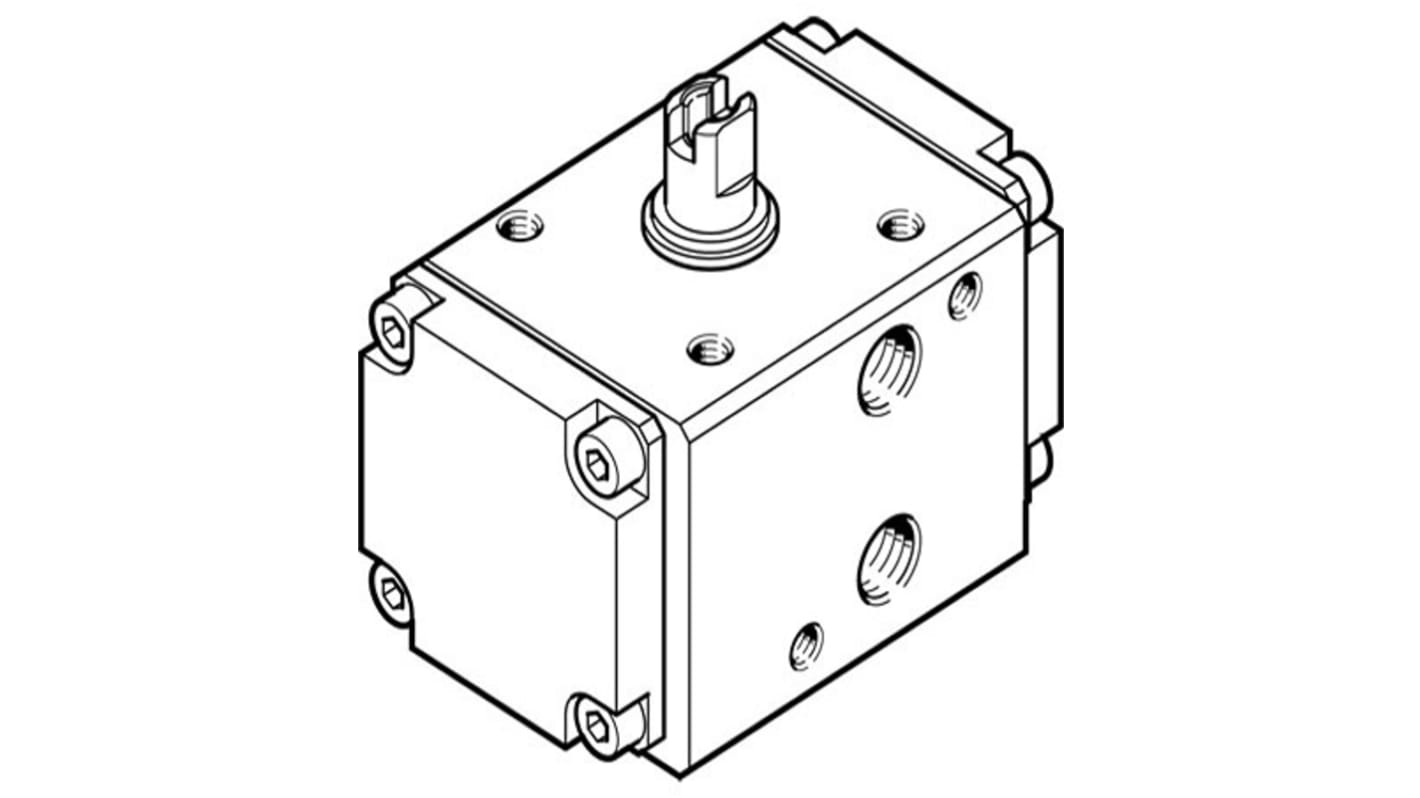

Festo DAPS Series Rotary Actuator, 90° Rotary Angle, 8.4 Bar Maximum Operating Pressure - DAPS-0008-090-R-F03, Numeric Part Number: 549666
This Festo DAPS rotary actuator is designed for efficient valve control, featuring a 90° swivel angle and double-acting functionality. Weighing 300g, it operates reliably at up to 8.4 bar. Constructed from durable, corrosion-resistant materials, this actuator is ideal for a range of industrial and automation applications.
Features & Benefits
• Double-acting operation ensures consistent and reliable performance
• Wide temperature range from -20°C to 80°C supports diverse environments
• High torque capability of 7 Nm at nominal pressure for effective valve control
• G1/8 port connection facilitates easy integration into existing systems
• Corrosion-resistant materials enhance durability
• Low air consumption of 0.24 l per cycle at 6 bar for efficient operation
• Wide temperature range from -20°C to 80°C supports diverse environments
• High torque capability of 7 Nm at nominal pressure for effective valve control
• G1/8 port connection facilitates easy integration into existing systems
• Corrosion-resistant materials enhance durability
• Low air consumption of 0.24 l per cycle at 6 bar for efficient operation
Applications
• Valve automation across various industrial sectors
• Pneumatic control systems requiring precise 90° positioning
• Environments needing explosion protection where durability is crucial
• Equipment requiring reliable and efficient rotary actuation
• Pneumatic control systems requiring precise 90° positioning
• Environments needing explosion protection where durability is crucial
• Equipment requiring reliable and efficient rotary actuation
Can it handle high-frequency operations?
Yes, it supports a maximum swivel frequency of 1 Hz at 6 bar.
