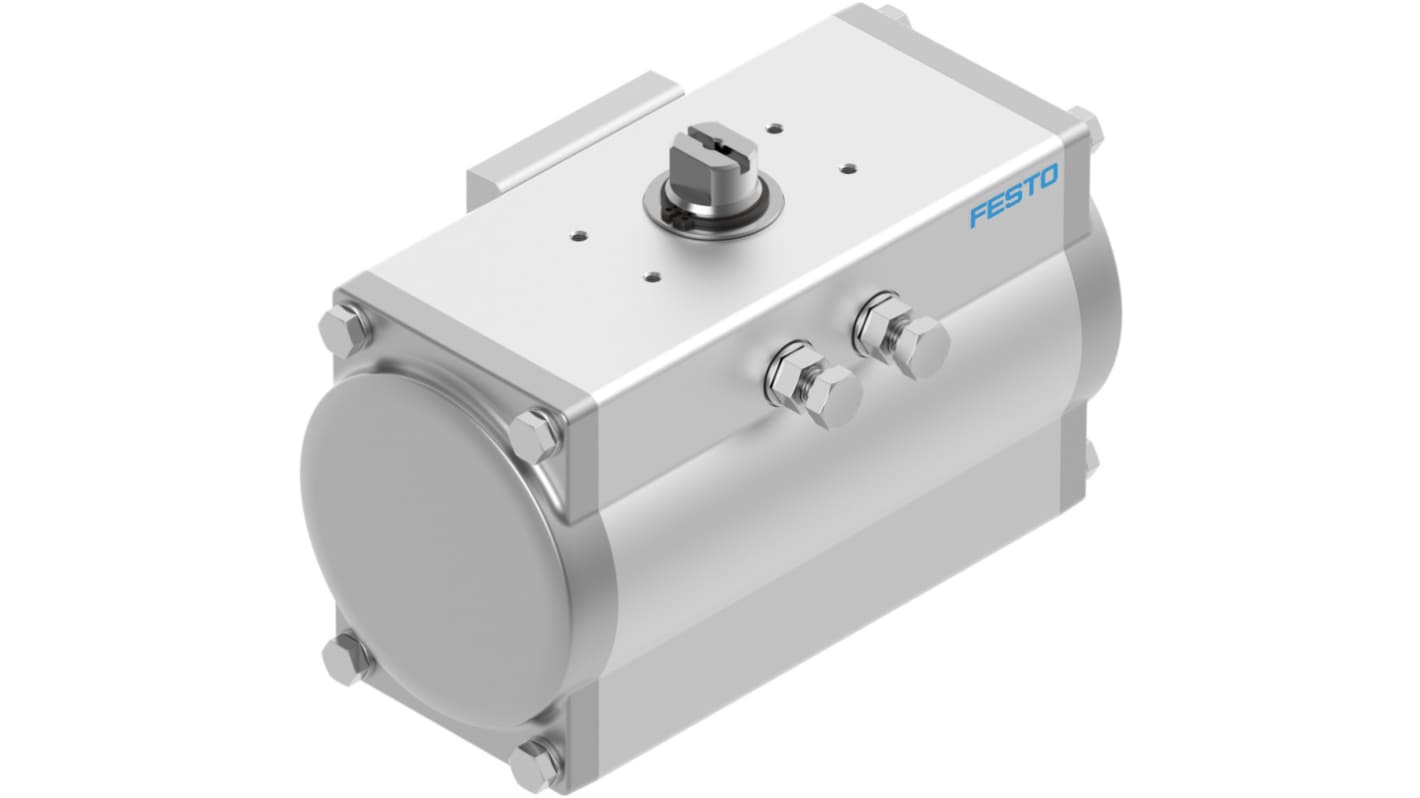

Festo DFPD Series 8 bar Single Action Pneumatic Rotary Actuator, 90° Rotary Angle, 160mm Bore
- RS Stock No.:
- 203-9545
- Mfr. Part No.:
- DFPD-160-RP-90-RS60-F0710
- Brand:
- Festo
Subtotal (1 unit)*
£306.09
(exc. VAT)
£367.31
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £306.09 |
*price indicative
- RS Stock No.:
- 203-9545
- Mfr. Part No.:
- DFPD-160-RP-90-RS60-F0710
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Rotary Angle | 90° | |
| Action | Single | |
| Bore | 160mm | |
| Manufacturer Series | DFPD | |
| Maximum Input Pressure | 8bar | |
| Maximum Operating Pressure | 8 bar | |
| Absolute Maximum Pressure | 24bar | |
| Cushioning Type | Not Cushioned | |
| Port Connection | G 1/4 | |
| Weight | 7.2kg | |
| Model Number | 8048136 | |
| Series | DFPD | |
| Size Type | Standard | |
Select all | ||
|---|---|---|
Brand Festo | ||
Rotary Angle 90° | ||
Action Single | ||
Bore 160mm | ||
Manufacturer Series DFPD | ||
Maximum Input Pressure 8bar | ||
Maximum Operating Pressure 8 bar | ||
Absolute Maximum Pressure 24bar | ||
Cushioning Type Not Cushioned | ||
Port Connection G 1/4 | ||
Weight 7.2kg | ||
Model Number 8048136 | ||
Series DFPD | ||
Size Type Standard | ||
- COO (Country of Origin):
- IT
Festo DFPD Series Pneumatic Rotary Actuator, 90° Rotary Angle, 160mm Bore - DFPD-160-RP-90-RS60-F0710, Numeric Part Number: 8048136
This pneumatic rotary actuator is designed for efficient control in automation applications. With a rotary angle of 90° and a bore size of 160mm, it offers robust functionality. The actuator operates on a single-acting mechanism, making it reliable for various industrial settings.
Features & Benefits
• High torque output of 117.9 Nm for effective performance
• G 1/4 port actuator provides easy connectivity
• Suitable for explosion protection with ATEX certification
• Adjustable end-position range enhances flexibility
• Operating pressure between 2 bar and 8 bar optimises applications
• G 1/4 port actuator provides easy connectivity
• Suitable for explosion protection with ATEX certification
• Adjustable end-position range enhances flexibility
• Operating pressure between 2 bar and 8 bar optimises applications
Applications
• Used for controlling valves in process automation
• Integrates with NAMUR mounted components for precise positioning
• Ideal for requiring a 90-degree rotary movement
• Suitable for environments with explosive gas and dust hazards
• Utilised in pneumatic systems where high torque is essential
• Integrates with NAMUR mounted components for precise positioning
• Ideal for requiring a 90-degree rotary movement
• Suitable for environments with explosive gas and dust hazards
• Utilised in pneumatic systems where high torque is essential
What are the storage and operating temperature ranges for this actuator?
The actuator can be stored at temperatures of -20°C to 60°C and operated effectively in environments ranging from -20°C to 80°C.
How does the rack and pinion design affect performance?
The rack and pinion design provides a reliable, efficient means of converting rotary motion into linear movement, ensuring precise actuation in various applications.
What type of operating medium is required for this actuator?
It requires compressed air compliant with ISO8573-1:2010, ensuring optimal performance throughout its operating life.
Is lubricated operation necessary for this actuator?
Lubrication is advisable for optimal performance during operation, particularly in prolonged usage scenarios.
