Festo Adjustable Exhaust Valve x 10 bar
- RS Stock No.:
- 175-4497
- Mfr. Part No.:
- GRE-1/4
- Brand:
- Festo
Subtotal (1 unit)*
£18.53
(exc. VAT)
£22.24
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 120 unit(s) ready to ship
- Plus 28 unit(s) ready to ship from another location
- Plus 42 unit(s) shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £18.53 |
*price indicative
- RS Stock No.:
- 175-4497
- Mfr. Part No.:
- GRE-1/4
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Adjustable Exhaust Valve | |
| Series | GRE | |
| Minimum Operating Pressure | 0bar | |
| Maximum Operating Pressure | 10 bar | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Adjustable Exhaust Valve | ||
Series GRE | ||
Minimum Operating Pressure 0bar | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
RoHS Status: Exempt

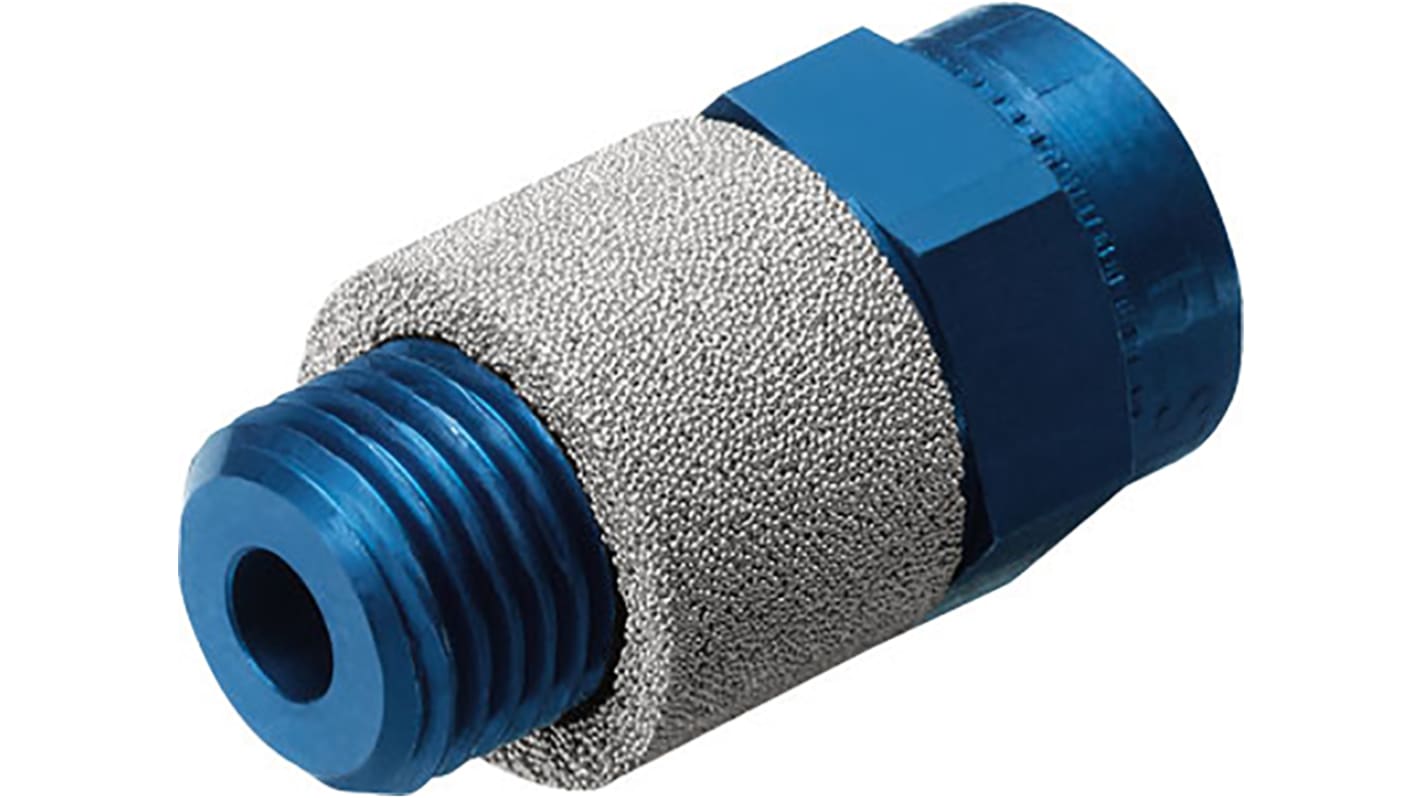

Exhaust Air Flow Control Valve, G 1/4 Inlet Port, 10 Bar - GRE-1/4
Choose this adjustable exhaust control valve from Festo when you need to set the speed of control drives or valves in your pneumatic system. It'll regulate the airflow and achieve the desired rate, helping to improve the efficiency of your system. You can use it at pressures from 0 to 10 bar and in temperatures from -10°C to +70°C, making it suitable for a wide range of industrial environments. A brass adjustment screw resists corrosion and provides easy adjustment while protecting against accidental movement.
• Wrought aluminium-alloy construction offers strength and corrosion resistance
• Nitrile rubber seals guard against leakage
• Slotted head screw allows easy adjustment while guarding against accidental movement
Applications
• Pneumatic systems
• Manufacturing plants
• Industrial machinery
How does a pneumatic exhaust valve work?
A pneumatic exhaust valve directs the compressed air from a cylinder into the atmosphere instead of letting it flow back through the valve.
Where should I fit a pneumatic exhaust valve?
For optimum performance, you should fit your pneumatic exhaust valve directly onto the vent side (exhaust port) of a pneumatic cylinder.
