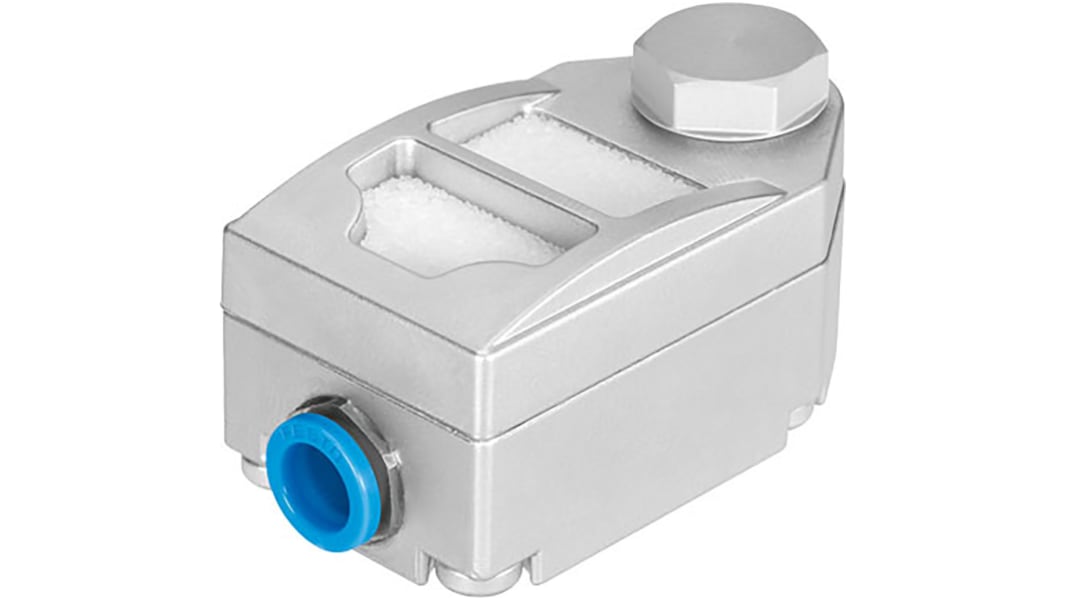

Festo Quick Exhaust Valve x 10 bar Male A: Threaded B: Threaded 1/4 in
- RS Stock No.:
- 125-9960
- Mfr. Part No.:
- VBQF-U-G14-Q8
- Brand:
- Festo
Subtotal (1 unit)*
£52.48
(exc. VAT)
£62.98
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £52.48 |
*price indicative
- RS Stock No.:
- 125-9960
- Mfr. Part No.:
- VBQF-U-G14-Q8
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Quick Exhaust Valve | |
| Connection Gender A | Male | |
| Connection Type A | Threaded | |
| Connection Size A | QS-8 | |
| Connection Type B | Threaded | |
| Connection Size B | 1/4 in | |
| Series | VBQF | |
| Built-in Silencer | No | |
| Minimum Operating Pressure | 0.5bar | |
| Maximum Operating Pressure | 10 bar | |
| Minimum Operating Temperature | -10°C | |
| Material | Die Cast Zinc, Aluminium | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Quick Exhaust Valve | ||
Connection Gender A Male | ||
Connection Type A Threaded | ||
Connection Size A QS-8 | ||
Connection Type B Threaded | ||
Connection Size B 1/4 in | ||
Series VBQF | ||
Built-in Silencer No | ||
Minimum Operating Pressure 0.5bar | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -10°C | ||
Material Die Cast Zinc, Aluminium | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE
Festo VBQF Quick Exhaust Valves
VBQF series quick exhaust valves allow higher piston speeds to be achieved on the return stroke of single and double-acting drives. Pneumatic air flows from the control valve via the VBQF to the drive. The VBQF can be mounted in any position and can also be turned giving high flexibility of mounting options. This range is available with or without a silencer. With housing made of die-cast zinc and die-cast aluminium these pressure valves are strong and robust with a small footprint.
Features and Benefits:
• Quick exhaust valve, flat design
• Flow rates of up to 2,500 l/min
• Screw in mounting
• Improved noise emissions in silencer type
• Mounted rotation
